Trilux 7635340 Creavo M46- #7635340 LED ceiling light LED (monochrome) 30 W White

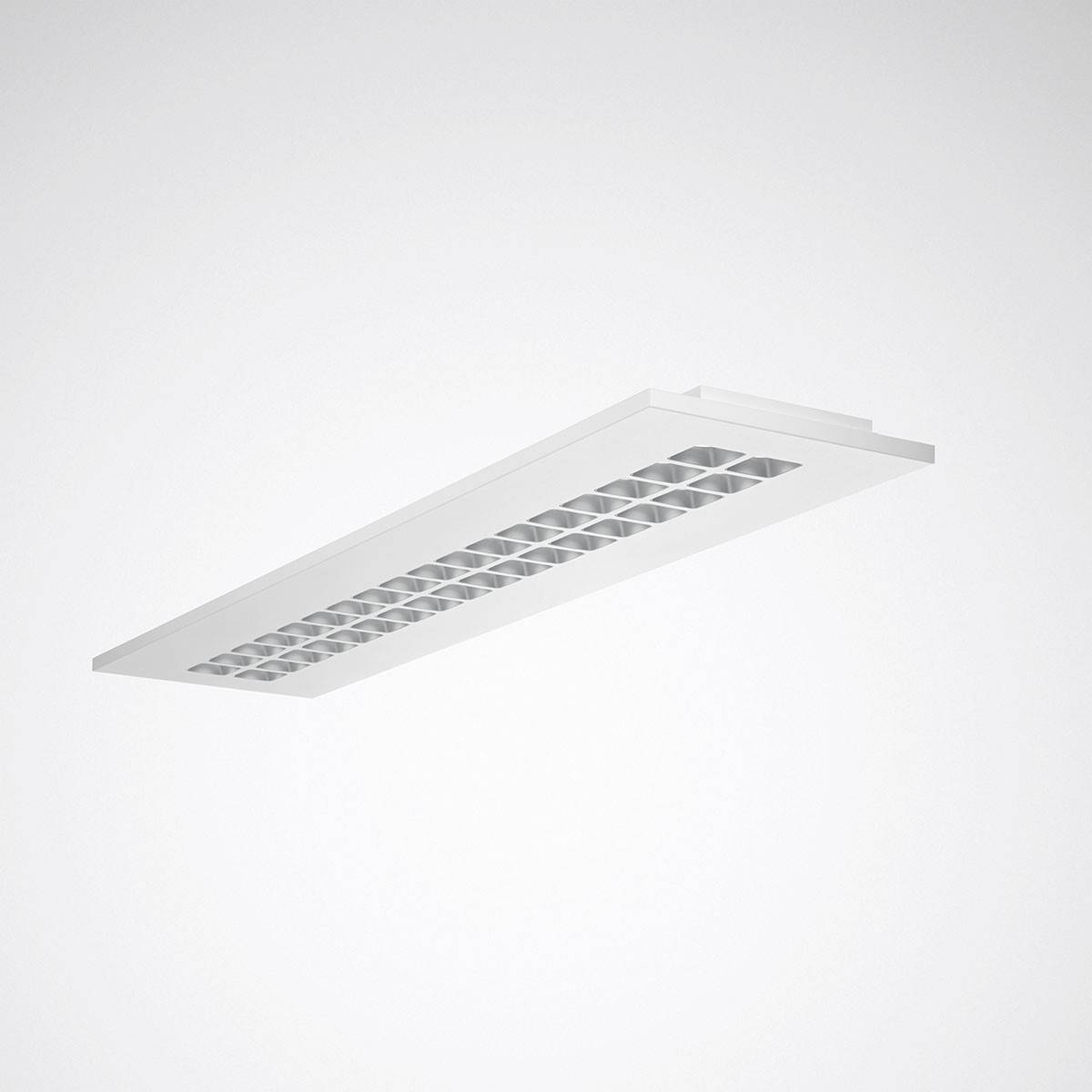

Light with a rectangular, white casing and numerous square openings on the underside for illumination.

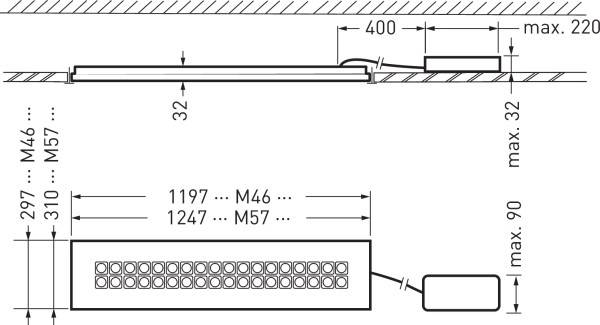

Cross-sectional drawing of a rectangular ceiling light with dimensions: 1197 mm or 1247 mm long, 400 mm from the ceiling, maximum height 32 mm.
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 30 W
  • Total luminous flux= 4800 lm
  • Colour temperature= 3000 K
  • White

Technical specifications

Dim

(L x W x H) 1197 x 297 x 36 mm

Type

Rectangular

Operating voltage

220 V

240 V

No. of bulbs

1

Product type

LED ceiling light

Width

297 mm

Bulb type

LED (monochrome)

Height

36 mm

Length

1197 mm

Rating per bulb

30 W

Depth

36 mm

30 W

Light features

Ceiling mount option

Recess mount option

Protection class

II

IP20

Factory colour

White

Material

Steel

Weight

5.5 kg

n.rel.

Colour rendering index

80-89

Colour

White

Light bulb included

Yes

3000 K

Colour temperature range

3000 K

Total luminous flux

4800 lm

4800 lm

Recess length

1197 mm

Recess width

297 mm

Recess depth

180 mm

Radiation angle

80°

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2604192 Trilux 7635340 Creavo M46- #7635340 LED ceiling light LED (monochrome) 30 W White

User & Safety Instructions

User & Safety Instructions 2604192 Trilux 7635340 Creavo M46- #7635340 LED ceiling light LED (monochrome) 30 W White
