Trilux 7693451 Creavo M17 #7693451 LED ceiling light LED (monochrome) LED 24 W White

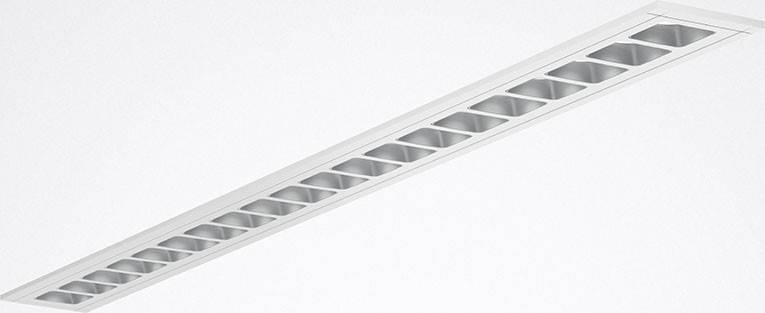

Silver, elongated ceiling light with a row of diamond-shaped apertures that evenly diffuse light.

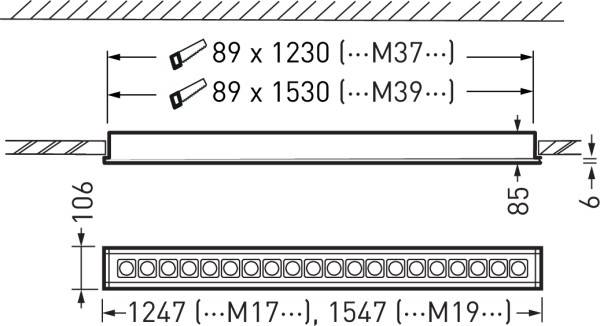

'Technical drawing of a channel with dimensions. Upper detail: 89 x 1230 mm (M37) and 89 x 1530 mm (M39). Lower detail: Dimensions 1247 and 1547 mm (M17, M19). Six assembly steps.'
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 24 W
  • Total luminous flux= 3800 lm
  • Colour temperature= 4000 K
  • White

Technical specifications

Dim

(L x W x H) 1247 x 106 x 90 mm

Operating voltage

220 V

240 V

No. of bulbs

1

Product type

LED ceiling light

Width

106 mm

Bulb type

LED (monochrome)

Height

90 mm

LED

Length

1247 mm

Rating per bulb

23 W

Depth

90 mm

24 W

Light features

Ceiling mount option

Recess mount option

Dimmable

Protection class

I

IP20

Factory colour

White

Material

Steel

Weight

4.0 kg

n.rel.

Colour rendering index

80-89

Colour

White

Light bulb included

Yes

4000 K

Colour temperature range

4000 K

Total luminous flux

3800 lm

3800 lm

Recess length

1224 mm

Recess width

83 mm

Recess depth

160 mm

Radiation angle

80°

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2603008 Trilux 7693451 Creavo M17 #7693451 LED ceiling light LED (monochrome) LED 24 W White

User & Safety Instructions

User & Safety Instructions 2603008 Trilux 7693451 Creavo M17 #7693451 LED ceiling light LED (monochrome) LED 24 W White
