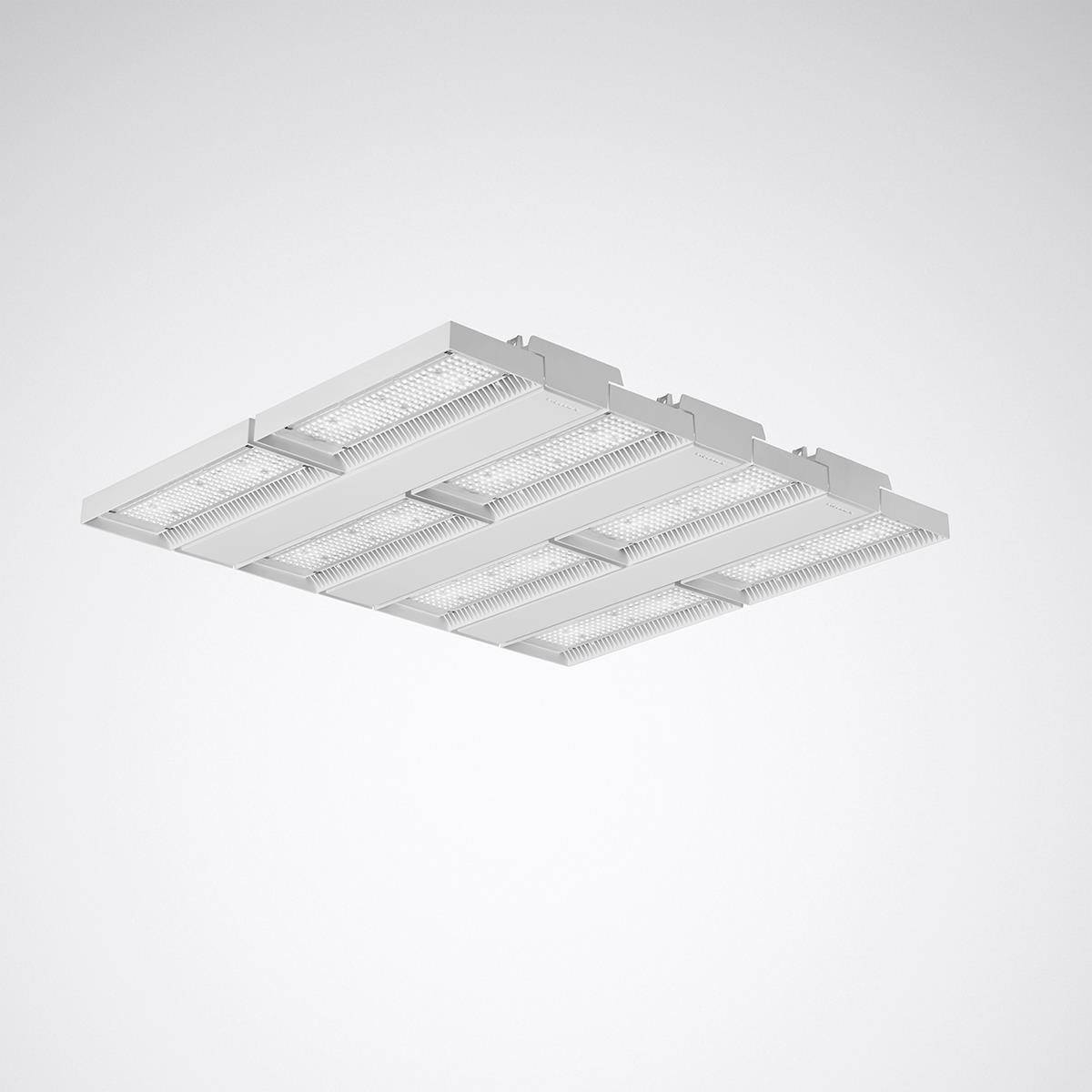

Trilux 7699751 7699751 LED hall light LED (monochrome) Built-in LED 425.00 W White
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Bulb: LED not replaceable
- With bulb: Yes
- Mounting type: Pendulum
- Suitable for the number of bulbs: 1
- Suitable for side lighting: No.
- Version: Other
- Material of housing: Aluminium
- Housing color: White
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- Removable operating device: Yes
- With operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming touch and dim: Yes
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light: Focus lens
- Light distribution: Symmetric
- Reflector: Without
- Material of the reflector: Without reflector
- Radiation angle: Medium radiation 21-40°
- Color consistency (McAdam ellipse): SDCM3
- Energy efficiency of the permanently installed light bulb: Other
- Rated life L70/B50 at 25 °C: 100000 h
- Protection class (IP) IP65
- Protection class (NEMA): Other
- Impact strength: IK08
- Suitable for sports facilities: No.
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Rated ambient temperature according to IEC62722-2-1: -30..45°C.
- Integrated emergency power supply: No.
- Suitable for emergency light: No.
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Max. System power 425 W
- Rated light current according to IEC 62722-2-1: 71600 lm
- Light output 168 lm/W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- S/N ratio (THD): 14
- Power factor 0.95
- Constant luminous flux regulation: No.
- Adjustable color temperature: No.
- Adjustable radiation angle: No.
- Luminous flux can be set: No
- Width 775 mm
- Height/depth 63 mm
- Length: 649 mm
- Type of wiring: Finish
- Number of pins: 5
- Connection type: Other
- With protective cover: No.
- Max. Number of lights circuit breaker B16: 5
- Max. Number of lamps line circuit breakers C16: 8
- Product type
LED hall light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
425.00 W
4000 K
- Colour
White
71600 lm
- Total luminous flux
71600 lm
- Light features
Dimmable
- Protection class
I
IP65
- Factory colour
White
- Material
Aluminium
- Weight
16.8 kg
- Dim
(L x W x H) 649.00 x 775.00 x 63.00 mm
n.rel.
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Width
775.00 mm
- Height
63.00 mm
- Length
649.00 mm
- Depth
63 mm
- Rated luminous flux
71600 lm
- Light bulb included
Yes
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3134460 Trilux 7699751 7699751 LED hall light LED (monochrome) Built-in LED 425.00 W White
Description
Robust LED hall spotlight Suitable for ceiling mounting as well as suspended mounting via optional accessories. Optical system comprising of a PC lens optics. With deep-wide beam light intensity distribution. LED system consists of 8 LED modules, mounted on aluminum carriers. Rated light current 71600 lm, rated power 425.00 W, light output 168 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average lifetime rating L80(TQ 45 °C) = 90,000 h, L80(TQ 25 °C) = 100,000 h, average life rating L90(TQ 25 °C) = 50,000 h. Robust die-cast aluminum body with integrated heatsinks. White surface coating (RAL 9016). Dimensions (L x B) 649 x 775 mm, lamp height 63 mm. Permissible ambient temperature (ta): -30 °C - +45 °C. Protection class (EN 61140): I, protection class (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weighs 16.8 kg With 5-pin connector cable 5 x 0.75 mm2 (1500 mm) With 3 electronic operating devices, digitally dimmable (DALI). Operating device in accordance with DALI 2 standard (EN 62386). Switch and dimmable light using button function with DALI control terminals (Touch DIM). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The lamp can be equipped with the Monitoring ready (MOR) functionality upon request. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
