Trilux 7854759 7854759 LED table lamp LED (monochrome) 8.50 W White
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED table lamp HCL, white Cultega Act #7854759
- Power= 8.50 W Total luminous flux= 600 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Mounting type: Base
- Lamp type: Desk lamp
- Adjustable: Yes
- Bendable: No.
- Adjustable height: Yes
- LED bulb, replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Housing color: White
- Cover material: Other
- Cover color: White
- Workplace training material - EN 12464-1: Yes
- Direct/indirect shares separately adjustable: No.
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distributor: Other
- With switch: Yes
- With dimmer: Yes
- Protection class: II
- Energy efficiency of the permanently installed light bulb: Other
- Max. System power 8.5 W
- Rated light current according to IEC 62722-2-1: 600 lm
- Photobiological safety according to EN 62471: RG0
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 90-100
- Color consistency (McAdam ellipse): SDCM3
- Power factor 0.9
- Constant luminous flux regulation: No.
- Adjustable color temperature: Continuously
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Width: 190 mm
- Height/depth 726 mm
- Length: 190 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED table lamp
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
8.50 W
8.50 W
- Power (reading light)
8.50 W
4000 K
- Colour
White
600 lm
- Total luminous flux
600 lm
- Light features
App-enabled
- Rotation range (max.)
120°
- Protection class
II
- Factory colour
White
- Material
Aluminium
- Weight
2.8 kg
- Dim
(Ø x H) 190 mm x 726.00 mm
- Wireless charging
No
n.rel.
- Type
Circular
- Light bulb included
Yes
- Width
190.00 mm
- Height
726.00 mm
- Length
190.00 mm
- Depth
726 mm
- (Ø)
190 mm
- Rated luminous flux
600 lm
- Colour rendering index
90-100
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3151564 Trilux 7854759 7854759 LED table lamp LED (monochrome) 8.50 W White
Description

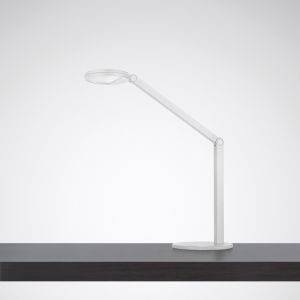

Compact table lamp with a flat, round lamp head, three adjustment joints and base. With integrated light management system to support the light effect of the natural day-night rhythm on the human organism. The control can be done by means of APP or manually via the control elements on the lamp head. With Smart-Connect equipment for combination with a LiveLink Lightgrid controller. Suitable for illumination of an area RF3 as per DIN 5035-8 with up to 500lx without additional lighting. In conjunction with general lighting (500lx), modified illumination strengths according to DIN EN 12464-1:2021 of up to 1000lx on the RF3 area are achieved for office-specific visual tasks. Ceiling lights with optional light grid equipment can be networked with the table lamp for the synchronization of the light color. With base plate for setting up on a flat surface. The base plate is lined with felt on a full surface to protect the surface area. The vertical joint at the lamp foot allows the lamp head to be turned by 120°. With prismatic cover for optimum light distribution. With direct, asymmetric wide radiating light intensity distribution. Glare evaluation in accordance with UGR classification (EN 12464-1) < 16. The following specifications for the luminous flux and the system power capacity refer to the operation of this lamp with dynamically adjustable light color (HCL) in the warm-white light color mode (2700 K). Rated light current 650 lm, rated power 8.50 W, maximum light yield 90 lm/W. Colour temperature variable (warm white - daylight white), color temperature variable (CCT) (2700 K - 6300 K), general color reproduction index (CRI) Ra > 90. Average measuring lifetime L80(TQ 25 °C) = 50,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Light fixtures made of die-cast aluminum Surface fine structure powder-coated, color white. (RAL 9016) Floor dimensions: Ø 190 mm x 10 mm. Dimension of lamp head Ø 134 mm x 23 mm, lamp height (can be adjusted continuously) 390 mm - 715 mm. Protection class (EN 61140): II, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK02, test temperature glow wire test in accordance with IEC 60695-2-11: 650°C. Weighs 2.8 kg The plug-in power supply unit (Euro connection plug type C, EN 50075) is equipped with a connecting cable and coupling for connection to the light cable. The cable routing takes place completely inside the lamp body, the connection cable is carried out securely through a plastic clamp. The connection cable (1500 mm) at the back is connected to the power supply connection line (1500 mm) using a plug connection. The total cable length of the connection is 3000 mm. With electronic operating device, dimmable (integrated). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). With integrated control device for day and time dependent controlling of the light color (Circadian control). Operation via 2 buttons (on/off/brightness/light color/HCL curve). The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
