Trilux 7867840 7867840 LED wall light 12 W LED (monochrome) Anthracite
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED wall lamp anthracite Skeo Square #7867840
- Power= 12 W
- Total luminous flux= 1000 lm
- Colour temperature= 4000 K
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Housing color: Anthracite
- Cover material: Other
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimming function: Yes
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Radiation angle: Free-radiation/diffuse
- Color consistency (McAdam ellipse): SDCM4
- Light emission: Direct
- Energy efficiency of the permanently installed light bulb: Other
- Max. Number of lights circuit breaker B16: 43
- Max. Number of lamps line circuit breakers C16: 73
- Protection class (IP) IP65
- Protection class (NEMA): Other
- Impact strength: IK10
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Ambient temperature according IEC62722-2-1: 25°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Coverage of lights possible with heat insulation material: Yes
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 12 W
- Light output 83 lm/W
- Rated light current according to IEC 62722-2-1: 1000 lm
- Colour temperature: 4000 K
- Flicker value PST LM: 0.3
- Color Rendering Index CRI: 80-89
- Power factor 0.9
- Strobe effect value SVM: 0.3
- Width 260 mm
- Height/depth 72 mm
- Length: 260 mm
- Type of wiring: Finish
- Number of poles: 2
- Connection type: Plug-in terminal
- S/N ratio (THD): 14
- Photobiological safety according to EN 62471: RG0
- Colour temperature adjustable: Levels
- Luminous flux can be set: Stages
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Product type
LED wall light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
12 W
- Light features
Incl. ballast
- Protection class
I
IP65
- Factory colour
Anthracite
- Material
Aluminium (die-cast)
- Weight
2.1 kg
- Dim
(L x W x H) 260.00 x 260.00 x 72.00 mm
n.rel.
- Type
Square
- Light bulb included
Yes
4000 K
- Total luminous flux
1000 lm
1000 lm
- Width
260.00 mm
- Height
72.00 mm
- Length
260.00 mm
- Depth
72 mm
- Rated luminous flux
1000 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148881 Trilux 7867840 7867840 LED wall light 12 W LED (monochrome) Anthracite
Description

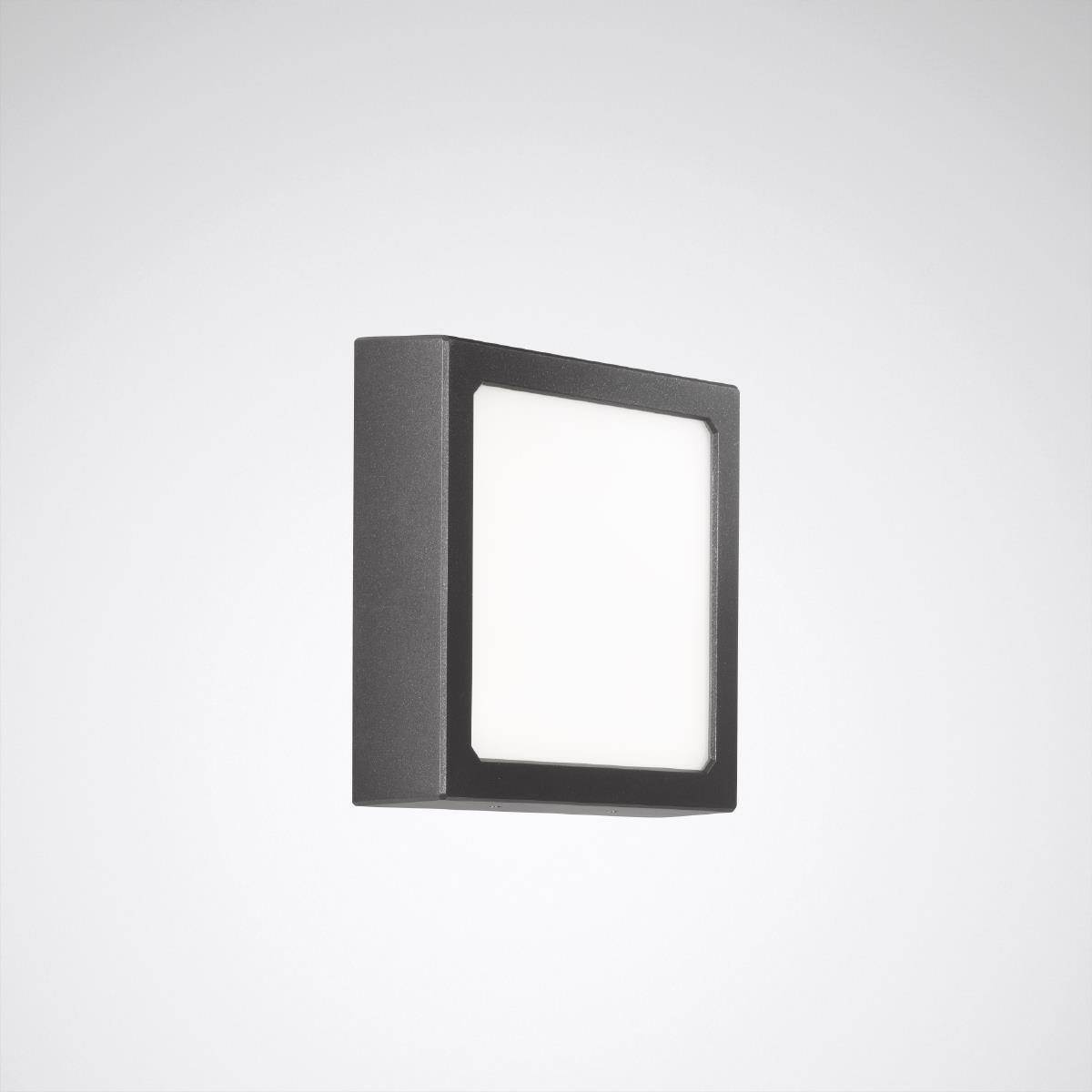

Square, decorative LED mounted light fixture for wall and ceiling mounting. The wall light harmonizes with other lamps, which can be used in the project, by means of optical and technical design features. The whole thing can also be used inside the building. Add-on lights for ceiling and wall mounting. With lambertian light intensity distribution. The LED system forms a permanently connected unit with the lamp cover and can be replaced. LED system with adjustable luminous flux and adjustable light color via DIP switch. Rated light current 670 lm - 1000 lm, rated power 8.50 W - 12.00 W, maximum light yield 85 lm/W. Selectable color temperature: 3000 / 4000 K, general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 4 SDCM. Average measuring lifetime L80(TQ 25 °C) = 100,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Light fixtures made of die-cast aluminum Cover made of high impact PMMA, opal Anthracite color, similar to DB703, with metal effect, highly weatherproof, powder-coated. (DB 703) Dimensions (L x B) 260 x 260 mm, lamp height 72 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK10. Weighs 2.1 kg. With 3-pin terminal block up to 2.5 mm2 for power supply and network forwarding. With electronic operating device, switchable. The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Shock resistance differential mode / common mode: 1 kV / 2 kV. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
