Name: Trilux 7916962 7916962 LED ceiling light LED (monochrome) 32 W Silver
Brand: Trilux
SKU: 3151720

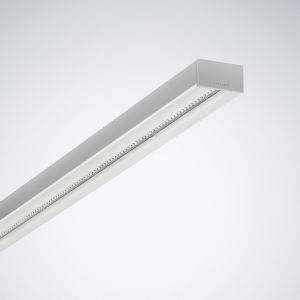

Elongated LED ceiling light in a modern design against a grey background. Suitable for office or residential environments.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Trilux LED-attachment lamp HCL, DALI, silver SFflow-act D #7916962

Power= 32 W
Total luminous flux= 4200 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: Yes
Workplace training material - EN 12464-1: Yes
Suitable for the number of bulbs: 1
Version: Other
Material of housing: Steel
Surface protection housing: Powder-coated
Housing color: Silver
Cover material: Other
Design of grid: High-gloss
Voltage type AC
Nominal voltage 220..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI-2 dimming: Yes
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: Yes
Without dimmer function: No.
Light distributor: Other
Light distribution: Symmetric
Radiation angle: Wide radiation 41-80°
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct
Energy efficiency of the permanently installed light bulb: Other
Max. Number of lights circuit breaker B16: 19
Max. Number of lamps line circuit breakers C16: 32
Protection class (IP) IP20
Protection class (NEMA): Other
Impact strength: IK03
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Rated ambient temperature according to IEC62722-2-1: -20..25°C.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
Coverage of lights possible with heat insulation material: Yes
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 32 W
Light output 131 lm/W
Rated light current according to IEC 62722-2-1: 4200 lm
Light color: White
Colour temperature: 4000 K
Flicker value PST LM: 0.3
Color Rendering Index CRI: 80-89
Power factor 0.95
Strobe effect value SVM: 0.3
Constant luminous flux regulation: No.
Width 100 mm
Height/depth 70 mm
Length: 1413 mm
Number of pins: 5
Connection type: Plug-in terminal
S/N ratio (THD): 14
Photobiological safety according to EN 62471: RG1
Glare limiter (UGR): 19
Adjustable color temperature: Continuously
Luminous flux can be set continuously
Adjustable radiation angle: No.
Operation via Bluetooth: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
LED bulb, replaceable
With bulb: Yes

Dim: (L x W x H) 1413.00 x 100.00 x 70.00 mm

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Width: 100.00 mm

Bulb type: LED (monochrome)

Height: 70.00 mm

Length: 1413.00 mm

Rating per bulb: 32 W

Depth: 70 mm

: 32 W

Light features: Dimmable

Protection class: I

: IP20

Factory colour: Silver

Material: Steel

Weight: 4.2 kg

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 4200 lm

: 4200 lm

Rated luminous flux: 4200 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3151720 Trilux 7916962 7916962 LED ceiling light LED (monochrome) 32 W Silver

Description

LED mounted light for single or light band applications. Lamp with active-equipment for controlling the light color by means of separate control device. Mounting light for ceiling mounting. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFLOW ZBP L2). For panel ceilings in module 100. With the help of accessories to be ordered separately also suitable for the suspended mounting (ZS1P 2000). Optical system in micro-reflector technology (MRX) with highly efficient aluminum-damped reflector chambers made of plastic for high glare and efficiency. Subtle lateral light emission over the entire length of the lamp. With balanced wide beam of light intensity distribution. According to EN 12464-1-2-5 by limited luminance L = 1500 cd/m2 for radiation angle above 65 ° all round. The following specifications for the luminous flux and the system power capacity refer to the operation of this lamp with dynamically adjustable light color (HCL) in the warm-white light color mode (2700 K). Rated light current 4000 lm, rated power 34.00 W, maximum light yield 131 lm/W. Colour temperature variable (warm white - daylight white), color temperature variable (CCT) (2700 K - 6500 K), general color reproduction index (CRI) Ra > 80. Average measuring lifetime L80(TQ 25 °C) = 50,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate (RAL 9006) Dimensions (L x B) 1413 x 100 mm, lamp height 70 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 4.2 kg With electronic operating device for switching, dimming and controlling the light color by means of DALI Device Type 8-compatible control device. Operating device in accordance with DALI 2 standard (EN 62386). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
