Name: Trilux 7918862 7918862 LED ceiling light LED (monochrome) 35 W Silver
Brand: Trilux
SKU: 3151702

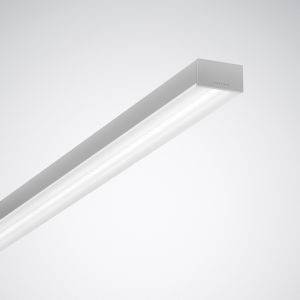

Long, rectangular LED ceiling light with a simple, modern design, mounted in a minimalist interior space.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Trilux LED-attachment lamp HCL, DALI, silver SFflow-act D #7918862

Power= 35 W
Total luminous flux= 4000 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
Suitable for panel mounting: Yes
Suitable for mounting on a panel: No.
Suitable for light band configuration: Yes
Suitable for screen workstations according to EN 12464-1: No.
Suitable for the number of bulbs: 1
Version: Other
Material of housing: Steel
Surface protection housing: Powder-coated
Housing color: Silver
Cover material: Other
Design of grid: White
Voltage type AC
Nominal voltage 220..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI-2 dimming: Yes
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: Yes
Without dimmer function: No.
Light distributor: Diffuser lens/-optic/-panel
Light distribution: Symmetric
Radiation angle: Free-radiation/diffuse
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct
Energy efficiency of the permanently installed light bulb: Other
Max. Number of lights circuit breaker B16: 19
Max. Number of lamps line circuit breakers C16: 32
Protection class (IP) IP20
Protection class (NEMA): Other
Impact strength: IK03
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Rated ambient temperature according to IEC62722-2-1: -20..25°C.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
Coverage of lights possible with heat insulation material: Yes
With air vents: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 35 W
Light output 114 lm/W
Rated light current according to IEC 62722-2-1: 4000 lm
Light color: White
Colour temperature: 4000 K
Flicker value PST LM: 0.3
Color Rendering Index CRI: 80-89
Power factor 0.95
Strobe effect value SVM: 0.3
Constant luminous flux regulation: No.
Width 84 mm
Height/depth 45 mm
Length: 1413 mm
Number of pins: 5
Connection type: Plug-in terminal
S/N ratio (THD): 14
Photobiological safety according to EN 62471: RG1
Glare limiter (UGR): 25
Adjustable color temperature: Continuously
Luminous flux can be set continuously
Adjustable radiation angle: No.
Operation via Bluetooth: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
LED bulb, replaceable
With bulb: Yes

Dim: (L x W x H) 1413.00 x 84.00 x 45.00 mm

Type: Rectangular

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Width: 84.00 mm

Bulb type: LED (monochrome)

Height: 45.00 mm

Length: 1413.00 mm

Rating per bulb: 35 W

Depth: 45 mm

: 35 W

Light features: Dimmable

Protection class: I

: IP20

Factory colour: Silver

Material: Steel

Weight: 4.2 kg

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 4000 lm

: 4000 lm

Rated luminous flux: 4000 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3151702 Trilux 7918862 7918862 LED ceiling light LED (monochrome) 35 W Silver

Description

LED mounted light for single or light band applications. Lamp with active-equipment for controlling the light color by means of separate control device. Mounting light for ceiling mounting. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFLOW ZBP L2). For panel ceilings in module 100. With the help of accessories to be ordered separately also suitable for the suspended mounting (ZS1P 2000). Optical system in micro-reflector technology (MRWD) with highly efficient, white-polished plastic reflector chambers with diffuser disk for a uniform light picture with highest visual comfort. With additional, clear cover plate integrated in the optical system for room-side flush termination and protection of the LED. Subtle lateral light emission over the entire length of the lamp. With balanced wide beam of light intensity distribution. The following specifications for the luminous flux and the system power capacity refer to the operation of this lamp with dynamically adjustable light color (HCL) in the warm-white light color mode (2700 K). Rated light current 4000 lm, rated power 38.00 W, maximum light yield 114 lm/W. Colour temperature variable (warm white - daylight white), color temperature variable (CCT) (2700 K - 6500 K), general color reproduction index (CRI) Ra > 80. Average measuring lifetime L80(TQ 25 °C) = 50,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate (RAL 9006) Dimensions (L x B) 1413 x 84 mm, lamp height 45 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 4.2 kg With electronic operating device for switching, dimming and controlling the light color by means of DALI Device Type 8-compatible control device. Operating device in accordance with DALI 2 standard (EN 62386). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
