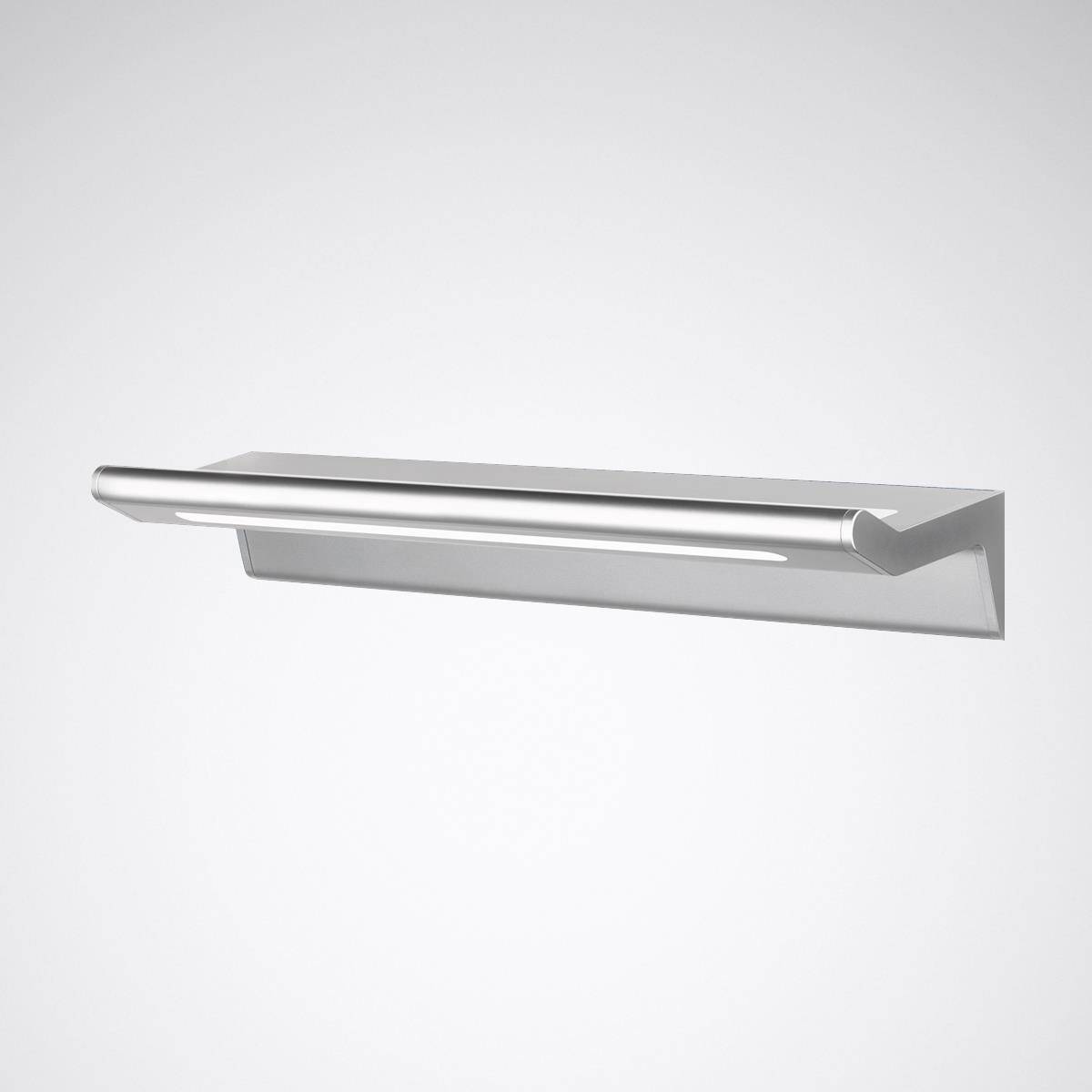

Trilux 7932062 7932062 LED wall light 33 W LED (monochrome) Silver
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED wall lamp HCL, silver SanescaAct #7932062
- Power= 33 W
- Total luminous flux= 4800 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection housing: Powder-coated
- Housing color: Silver
- Cover material: Other
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Asymmetric
- Radiation angle: Medium radiation 21-40°
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct/indirect
- Energy efficiency of the permanently installed light bulb: Other
- Max. Number of lights circuit breaker B16: 12
- Max. Number of lamps line circuit breakers C16: 20
- Protection class (IP) IP40
- Protection class (NEMA): Other
- Impact strength: IK06
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Rated ambient temperature according to IEC62722-2-1: -20..25°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Coverage of lights possible with heat insulation material: Yes
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 33 W
- Light output 145 lm/W
- Rated light current according to IEC 62722-2-1: 4800 lm
- Light color: White
- Colour temperature: 4000 K
- Flicker value PST LM: 0.3
- Color Rendering Index CRI: 80-89
- Power factor 0.95
- Strobe effect value SVM: 0.3
- Width 700 mm
- Height/depth 96 mm
- Length: 190 mm
- Type of wiring: Finish
- Number of pins: 5
- Connection type: Plug-in terminal
- S/N ratio (THD): 14
- Photobiological safety according to EN 62471: RG1
- Adjustable color temperature: Continuously
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Product type
LED wall light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
33 W
33 W
- Light features
Dimmable
- Protection class
I
IP40
- Factory colour
Silver
- Material
Aluminium
- Weight
4.7 kg
- Dim
(L x W x H) 190.00 x 700.00 x 96.00 mm
n.rel.
- Colour
White
- Light bulb included
Yes
4000 K
- Total luminous flux
4800 lm
4800 lm
- Width
700.00 mm
- Height
96.00 mm
- Length
190.00 mm
- Depth
96 mm
- Rated luminous flux
4800 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3151816 Trilux 7932062 7932062 LED wall light 33 W LED (monochrome) Silver
Description
LED wall lamp with indirect-direct light intensity distribution. Lamp with active-equipment for controlling the light color by means of separate control device. The active equipment is effective for the indirect part, the direct part is equipped with an unchanged light color (4000 K). For direct wall mounting. With direct/indirect light intensity distribution. With translucent PMMA cover plate. Harmonic light effect due to the uniformly lit light output. The following specifications for the luminous flux and the system power capacity refer to the operation of this lamp with dynamically adjustable light color (HCL) in the warm-white light color mode (2700 K). Rated light current 4700 lm, rated power 34.00 W, maximum light yield 145 lm/W. Light color Indirect proportion variable (warm-white - daylight white), color temperature of similar color (CCT) variable (2700 K - 6500 K), light color direct part 4000 K. General color reproduction index (CRI) Ra > 80. Average nominal life L80(TQ 25 °C) = 70,000 h, average rated life L85(TQ 25 °C) = 50,000 h. The light source is replaceable according to eco-design requirements (EU) 2019/2020). Light fixtures made of aluminum, upper cover made of steel plate. Surface silver-gray coated (RAL 9006). Dimensions (L x B) 190 x 700 mm, lamp height 96 mm. Permissible ambient temperature (ta): - +25 °C. Protection class (EN 61140): I, protection class (DIN EN 60529): IP40, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 4.7 kg Switchable with an electronic device and digital dimming of an electronic operating device (DALI). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The lamp can be equipped with the Monitoring ready (MOR) functionality upon request. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
