Name: Trilux 7932962 7932962 LED ceiling light LED (monochrome) 29 W White
Brand: Trilux
SKU: 3151874

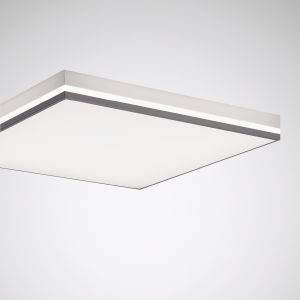

A square, modern ceiling light with a thin, silver frame and a white light panel hangs from a light grey ceiling.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Trilux LED ceiling lamp HCL, DALI, WS BelvisoAct #7932962

Power= 29 W
Total luminous flux= 4150 lm
Colour temperature= 6500 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: No.
Workplace training material - EN 12464-1: Yes
Suitable for the number of bulbs: 1
Version: Other
Material of housing: Steel
Surface protection housing: Powder-coated
Housing color: White
Cover material: Other
Design of grid: Without
Voltage type AC
Nominal voltage 230..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI-2 dimming: Yes
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming touch and dim: Yes
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: Yes
Without dimmer function: No.
Light distributor: Other
Light distribution: Symmetric
Radiation angle: Wide radiation 41-80°
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct
Energy efficiency of the permanently installed light bulb: Other
Max. Number of lights circuit breaker B16: 20
Max. Number of lamps line circuit breakers C16: 34
Protection class (IP) IP20
Protection class (NEMA): Other
Impact strength: IK06
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Rated ambient temperature according to IEC62722-2-1: -20..25°C.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
Coverage of lights possible with heat insulation material: Yes
With air vents: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 29 W
Light output 143 lm/W
Rated light current according to IEC 62722-2-1: 4150 lm
Light color: White
Colour temperature 4000..6500 K
Flicker value PST LM: 0.3
Color Rendering Index CRI: 80-89
Power factor 0.95
Strobe effect value SVM: 0.3
Constant luminous flux regulation: No.
Width 620 mm
Height/depth 72 mm
Length: 620 mm
Type of wiring: Finish
Number of pins: 5
Connection type: Plug-in terminal
S/N ratio (THD): 14
Photobiological safety according to EN 62471: RG0
Glare limiter (UGR): 19
Adjustable color temperature: Continuously
Luminous flux can be set continuously
Adjustable radiation angle: No.
Operation via Bluetooth: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
LED bulb, replaceable
With bulb: Yes

Dim: (L x W x H) 620.00 x 620.00 x 72.00 mm

Type: Square

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Width: 620.00 mm

Bulb type: LED (monochrome)

Height: 72.00 mm

Length: 620.00 mm

Depth: 72 mm

: 29 W

Light features: Dimmable

Protection class: I

: IP20

Factory colour: White

Material: Steel

Weight: 9.2 kg

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 6500 K

Colour temperature (max.): 6500 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 6500 K

Total luminous flux: 4150 lm

Rated luminous flux: 4150 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3151874 Trilux 7932962 7932962 LED ceiling light LED (monochrome) 29 W White

Description

LED light with active equipment for controlling the light color using a separate control device. Ceiling mounted light with microprismatic cover, square. With four integrated LED panels, design for linking in light-color control applications. For mounting on ceilings and indoor overhang. With highly efficient CDP microprismatic. Completely harmonic light effect through equally illuminated light output. Direct radiating. According to EN 12464-1-2-5 by limited luminance L = 1500 cd/m2 for radiation angle above 65 ° all round. LED panels equipped with LEDs of the light color warm-white and daylight white. Activation of LED groups of different light colors is carried out separately. The following specifications for the luminous flux and the system power capacity refer to the operation of this lamp with dynamically adjustable light color (HCL) in the warm-white light color mode (2700 K). Rated light current 4050 lm, rated power 31.00 W, maximum light yield 145 lm/W. Colour temperature variable (warm white - daylight white), color temperature variable (CCT) (2700 K - 6500 K), general color reproduction index (CRI) Ra > 80. Average measuring lifetime L80(TQ 25 °C) = 70,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate (RAL 9016) Dimensions (L x B) 620 x 620 mm, lamp height 72 mm. Spring fastener for easy opening and mounting. With all-round, exclusive light frame. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK06, test temperature glow wire test in accordance with IEC 60695-2-11: 650°C. Weighs 9.2 kg With electronic operating device for switching, dimming and controlling the light color by means of DALI Device Type 8-compatible control device. Operating device in accordance with DALI 2 standard (EN 62386). Switch and dimmable light using button function with DALI control terminals (Touch DIM). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The lamp can be equipped with the Monitoring ready (MOR) functionality upon request. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
