Name: Trilux 7964440 7964440 LED ceiling light LED (monochrome) 17.00 W White
Brand: Trilux
SKU: 3148952

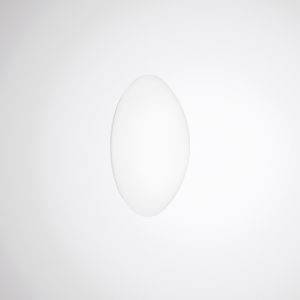

Oval, white shape in the centre of a light background.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Trilux LED lamp 840, white Mondia G3 #7964440

Power= 17.00 W
Total luminous flux= 2100 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: Yes
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Suitable for the number of bulbs: 1
Version: Other
Material of housing: Steel
Surface protection housing: Powder-coated
Housing color: White
Cover material: Other
Design of grid: Without
Voltage type AC
Nominal voltage 220..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: No.
Without dimming function: Yes
Light distributor: Diffuser lens/-optic/-panel
Light distribution: Symmetric
Radiation angle: Free-radiation/diffuse
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct/indirect
Energy efficiency of the permanently installed light bulb: Other
Rated life L70/B50 at 25 °C: 75000 h
Max. Number of lights circuit breaker B16: 24
Max. Number of lamps line circuit breakers C16: 40
Protection class (IP) IP40
Protection class (NEMA): Other
Impact strength: IK08
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Rated ambient temperature according to IEC62722-2-1: -20..25°C.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
Coverage of lights possible with heat insulation material: Yes
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 17 W
Light output 124 lm/W
Rated light current according to IEC 62722-2-1: 2100 lm
Light color: White
Colour temperature: 4000 K
Flicker value PST LM: 0.3
Color Rendering Index CRI: 80-89
Power factor 0.9
Strobe effect value SVM: 0.3
Constant luminous flux regulation: No.
Height/depth 110 mm
Outer diameter: 402 mm
Type of wiring: Suitable for through-wiring
Number of poles: 3
Connection type: Plug-in terminal
S/N ratio (THD): 14
Photobiological safety according to EN 62471: RG0
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
LED bulb, replaceable
With bulb: Yes

Dim: (Ø x H) 402 mm x 110.00 mm

Type: Circular

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Width: 402 mm

Bulb type: LED (monochrome)

Height: 110.00 mm

Rating per bulb: 17.00 W

Depth: 110 mm

: 17.00 W

(Ø): 402 mm

Protection class: I

: IP40

Factory colour: White

Material: Steel

Weight: 1.4 kg

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 2100 lm

: 2100 lm

Rated luminous flux: 2100 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3148952 Trilux 7964440 7964440 LED ceiling light LED (monochrome) 17.00 W White

Description

Round LED attachment lamp with optional, spherical forming PC cover plate, lamp diameter 402 mm. The easy-to-mount decorative ring is available as an optional accessory in standard colors and can also be supplied in custom colors on request. Developed and manufactured in Germany. For wall or ceiling mounting. With diffuse-wide radiating light intensity distribution, predominantly direct. With a light indirect part for surface brightening. Rated light current 2100 lm, rated power 17.00 W, light output 124 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average nominal life L80(TQ 25 °C) = 50,000 h, average rated life L70(TQ 25 °C) = 75,000 h. The light source is replaceable according to eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate White surface coating (RAL 9016). Diameter of covering pan Ø 402 mm, lamp height 110 mm. Permissible ambient temperature (ta): - +25 °C. Protection class (EN 61140): I, protection class (DIN EN 60529): IP40, shock resistance according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 1.4 kg The connection is made via a plug-in terminal with mains forwarding equipment. With electronic operating device, switchable. The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
