Name: Trilux 8105340 8105340 LED tape light 51 W LED (monochrome) White 1 pc(s)
Brand: Trilux
SKU: 3149321

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Workplace training material - EN 12464-1: Yes
Suitable for light band configuration: Yes
Suitable for the number of bulbs: 1
Version: Other
Material of housing: Steel
Housing color: White
Cover material: Other
Design of grid: Without
Voltage type AC
Nominal voltage 220..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: No.
Dimming DALI-2: No.
Dimmer DMX: No
Dimming programmable: No.
Dimmer DSI: No.
Dim. RF: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Light distributor: Other
Reflector: Without
Light distribution: Symmetric
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct/indirect
Direct/indirect shares separately adjustable: No.
Energy efficiency of the permanently installed light bulb: Other
Protection class (IP) IP20
Protection class (NEMA): Other
Impact strength: IK03
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Suitable for emergency light: No.
Integrated emergency power supply: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 51 W
Rated light current according to IEC 62722-2-1: 6400 lm
Light color: White
Light output 125 lm/W
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Glare limiter (UGR): 19
Power factor 0.95
Flicker value PST LM: 0.3
Constant luminous flux regulation: No.
Strobe effect value SVM: 0.3
Adjustable color temperature: No.
Luminous flux can be set: Stages
Adjustable radiation angle: No.
Width 160 mm
Height/depth 47 mm
Length: 1408 mm
With suspension: No.
Pendant length: 2000 mm
Number of poles: 3
Connection type: Plug-in terminal
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
LED bulb, replaceable
With bulb: Yes

Product type: LED tape light

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 51 W

: 51 W

: 4000 K

Colour: White

: 6400 lm

Total luminous flux: 6400 lm

Light features: Selectable luminous flux

: IP20

Protection class: I

Factory colour: White

Material: Steel

Dim: (L x W x H) 1408.00 x 160.00 x 47.00 mm

: n.rel.

Type: Rectangular

Colour rendering index: 80-89

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Width: 160.00 mm

Height: 47.00 mm

Length: 1408.00 mm

Rated luminous flux: 6400 lm

Light bulb included: Yes

Nominal voltage: 230 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3149321 Trilux 8105340 8105340 LED tape light 51 W LED (monochrome) White 1 pc(s)

Description

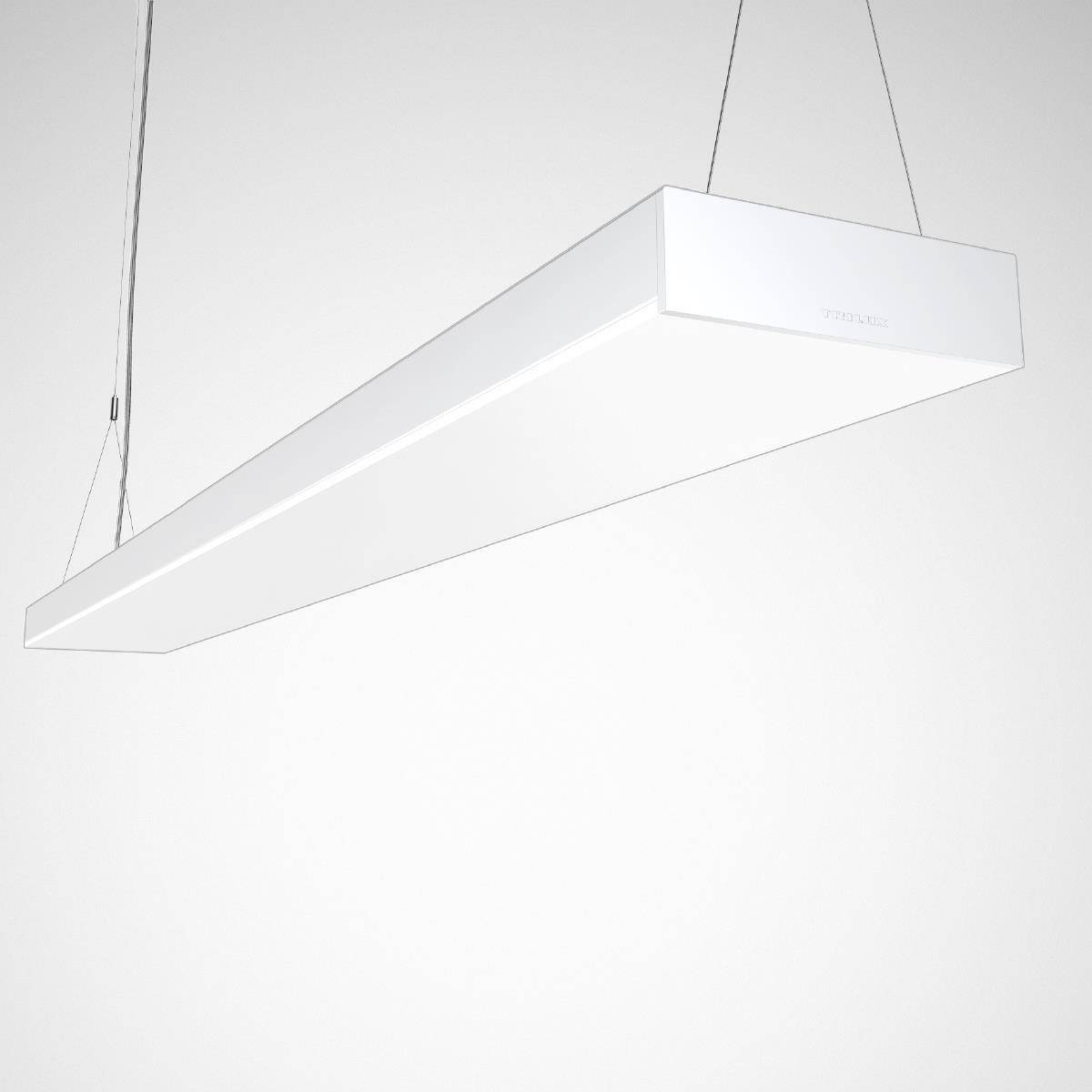

Rectangular LED-suspended lamp, direct-indirect radiating, with full-surface, borderless PMMA-cover. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). For single or light band applications by means of accessories to be ordered separately. Suitable for executing through wiring. With an inner microprismatic cover plate as well as a smooth, opal PMMA cover on the side of the room. With balanced wide beam of light intensity distribution, direct-indirect (70/30 %). Light flux adjustable in 6 levels. Rated light current 2100 lm - 6400 lm, rated power 18.00 W - 51.00 W, maximum light yield 125 lm/W. Colour color , most similar color temperature (CCT) , general color rendering index (CRI) Ra > 80. Average measuring lifetime L80(TQ 25 °C) = 50,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate, white powder-coated (RAL 9016). Dimensions (L x B) 1408 x 160 mm, lamp height 47 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 4.9 kg The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The lamp can be equipped with the Monitoring ready (MOR) functionality upon request. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.

This text is machine translated.

Description

Rectangular LED-suspended lamp, direct-indirect radiating, with full-surface, borderless PMMA-cover. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). For single or light band applications by means of accessories to be ordered separately. Suitable for executing through wiring. With an inner microprismatic cover plate as well as a smooth, opal PMMA cover on the side of the room. With balanced wide beam of light intensity distribution, direct-indirect (70/30 %). Light flux adjustable in 6 levels. Rated light current 2100 lm - 6400 lm, rated power 18.00 W - 51.00 W, maximum light yield 125 lm/W. Colour color , most similar color temperature (CCT) , general color rendering index (CRI) Ra > 80. Average measuring lifetime L80(TQ 25 °C) = 50,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). Light fixtures made of steel plate, white powder-coated (RAL 9016). Dimensions (L x B) 1408 x 160 mm, lamp height 47 mm. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 4.9 kg The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The lamp can be equipped with the Monitoring ready (MOR) functionality upon request. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.

This text is machine translated.
