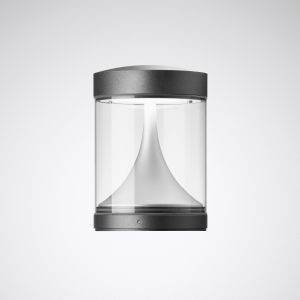

Trilux 8114951 8114951 LED bollard LED (monochrome) LED 9.5 W Anthracite
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED-Poller 730 DALI, ANTHR. 8841RB/800-730G2ETDD
- Power= 9.5 W Total luminous flux= 800 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Type of light: Bollard light
- With motion detector: No.
- With base plate: Yes
- LED bulb, replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Material quality of the housing: Other
- Surface protection: Powder-coated
- Housing color: Anthracite
- Cover material: Other
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Light: Focus lens
- Energy efficiency of the permanently installed light bulb: Other
- Constant luminous flux regulation: Yes
- Protection class (IP) IP65
- Protection class (NEMA): Other
- Impact strength: IK04
- Protection class: II
- Max. System power 9.5 W
- Light distribution: Symmetric
- Light emission: Direct
- Rated light current according to IEC 62722-2-1: 800 lm
- Light output 84 lm/W
- Radiation angle: Extremely wide radiation >80°
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 70-79
- Power factor 0.9
- Flicker value PST LM: 0.3
- Strobe effect value SVM: 0.3
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 425 mm
- Diameter 170 mm
- Type of wiring: Finish
- Number of pins: 4
- Max. Number of lights circuit breaker B16: 20
- Max. Number of lamps line circuit breakers C16: 33
- Type of connection: Screw terminal
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED bollard
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
LED
9.5 W
3000 K
- Colour
White
800 lm
- Total luminous flux
800 lm
- Light features
Dimmable
- Protection class
II
IP65
- Factory colour
Anthracite
- Material
Aluminium
- Weight
2.5 kg
- Dim
(Ø x H) 170 mm x 425.00 mm
n.rel.
- Light bulb included
Yes
- Height
425.00 mm
- Depth
425 mm
- (Ø)
170 mm
- Rated luminous flux
800 lm
- Colour rendering index
70-79
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3133525 Trilux 8114951 8114951 LED bollard LED (monochrome) LED 9.5 W Anthracite
Description
Poller head unit with circular, opal PMMA reflector. To be used in combination with stand pipes to be ordered separately in various versions and heights. 2 LED modules each with 4 LED integrated in a lens system, direct radiating. Optical system running in Multi Lens Technology (MLT). With rotary-symmetrical wide beam distribution of light intensity. Other radiation characteristics are available for flexible adaptation to customer-specific lighting tasks. Rated light current 800 lm, rated power 9.00 W, maximum light yield 89 lm/W. Light color: Warm white, similar color temperature (CCT) 3000 K, general color reproduction index (CRI) Ra > 70. Color site tolerance (initial Macadam) = 5 SDCM. Average measuring lifetime L80(TQ 25 °C) = 100,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). (DB 703) Lakeside weather suitable coating on request. Lamp diameter 170 mm, lamp height 425 mm. End cylinder made of high impact resistance PMMA, clear. Protection class (EN 61140): II, protection class (DIN EN 60529): IP65, shock resistance class according to IEC 62262: IK04. Wind attack area FW 0.070 m2. Weight: 2.5 kg With electronic operating device, digitally dimmable (DALI). Operating device in accordance with DALI 2 standard (EN 62386). Parameterisable operating device with constant light current maintenance (CLO). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Shock resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
