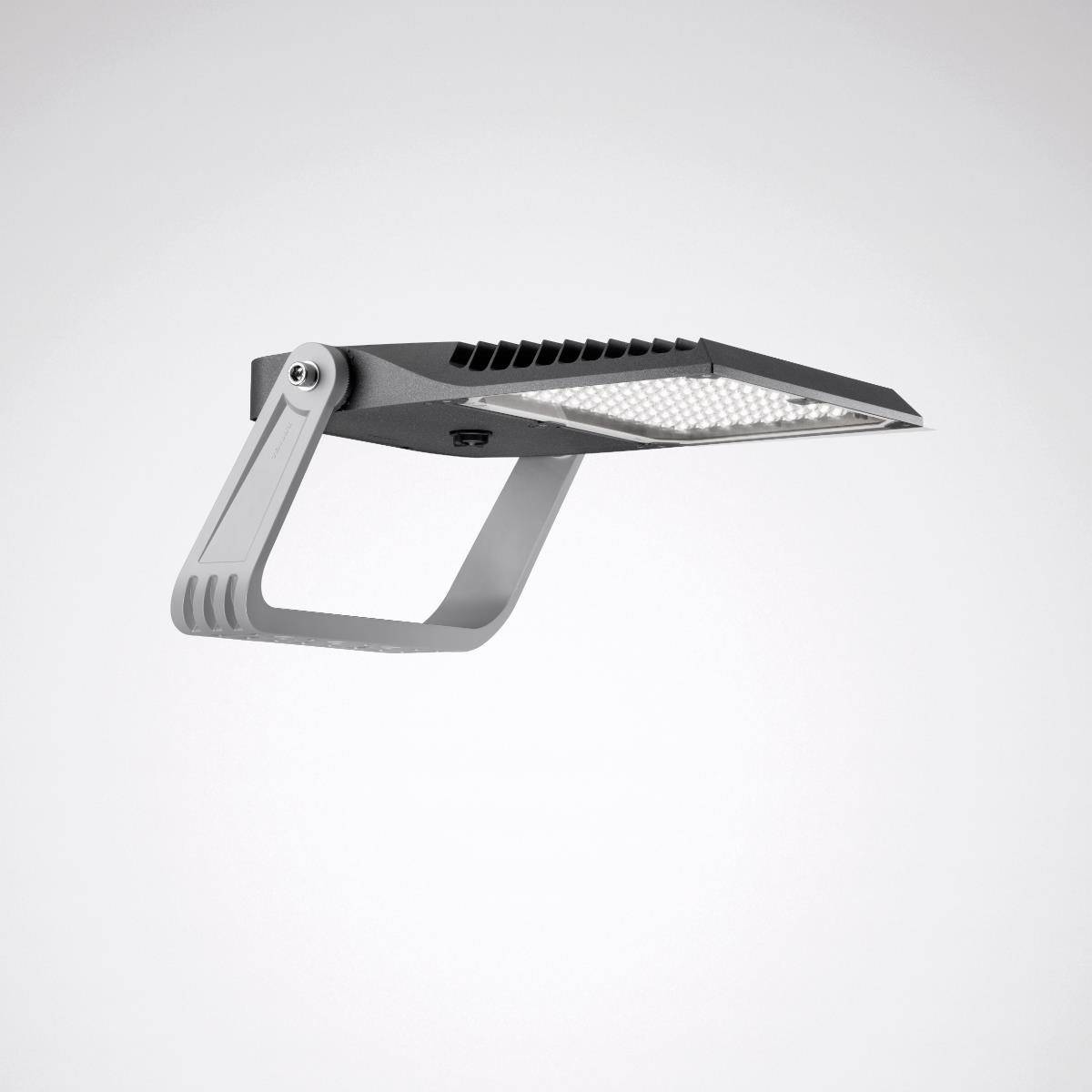

Trilux 8154040 8154040 LED floodlight 182.00 W Colours (LEDs): White
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED spotlight 730, anthracite LnPlus 60- #8154040
- Power= 182.00 W
- Total luminous flux= 24000 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for cross beam installation: Yes
- Suitable for pedestal/floor mounting: Yes
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Pivoting
- With motion detector: No.
- LED bulb, replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection: Powder-coated
- Housing color: Grey
- Cover material: Other
- Surface brushed: No.
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: Yes
- Dimming depends on the operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: Yes
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light: Focus lens
- Light distribution: Asymmetric
- Radiation angle: Wide radiation 41-80°
- Light emission: Direct
- Energy efficiency of the permanently installed light bulb: Other
- S/N ratio (THD): 10
- Protection class (IP) IP66
- Protection class (NEMA): Other
- Impact strength: IK09
- Protection class: I
- Ambient temperature according IEC62722-2-1: 25°C.
- Max. System power 191 W
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 70-79
- Luminous flux: 24000 lm
- Rated light current according to IEC 62722-2-1: 24000 lm
- Power factor 0.95
- Flicker value PST LM: 0.3
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Strobe effect value SVM: 0.3
- Width 494 mm
- Height/depth 275 mm
- Length: 633 mm
- Type of wiring: Finish
- Number of pins: 4
- Connection type: Plug-in terminal
- Lamp with limited surface temperature "D-sign": No.
- Max. Number of lights circuit breaker B16: 5
- Max. Number of lamps line circuit breakers C16: 9
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:960°C - 30 s.
- Light output 126 lm/W
- Photobiological safety according to EN 62471: RG2
- Coverage of lights possible with heat insulation material: Yes
- IFTTT support available: No.
- Color consistency (McAdam ellipse): SDCM5
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
LED floodlight
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
182.00 W
3000 K
- Colour
White
24000 lm
- Total luminous flux
24000 lm
- Light features
Swivelling
- Protection class
I
IP66
- Factory colour
Grey
- Material
Aluminium
- Weight
15.5 kg
- Dim
(L x W x H) 633.00 x 494.00 x 275.00 mm
n.rel.
- Colour rendering index
70-79
- Light bulb included
Yes
- Width
494.00 mm
- Height
275.00 mm
- Length
633.00 mm
- Depth
275 mm
- Rated luminous flux
24000 lm
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3133801 Trilux 8154040 8154040 LED floodlight 182.00 W Colours (LEDs): White
Description
LED floodlight for surface illumination. With power reduction via the control phase. Turning off a control phase causes the luminous flux to be adjusted to 50%. The lamp fulfills the requirements of EN 60598 and is designed for effects by wind according to EN 1991(Eurocode) with a base wind speed of up to 30m/s (corresponds to wind zone 4 in Germany) in the area category 1. Mounting bracket made of die-cast aluminum. The stable mounting bracket with 3 holes makes possible not only a 2-point attachment but also a central 1-point attachment Headlamp can be tilted by single-point mounting on the mounting bracket. Secure swivel position with toothed locking mechanism. Headlights head and mounting brackets are already mounted on delivery. Mast mounting possible for single and multiple application with the help of accessories. In MLT design (multi lens technology), consisting of highly efficient, UV and temperature resistant four-way lens systems. With asymmetric wide radiating light intensity distribution. Other radiation characteristics are available for flexible adaptation to customer-specific lighting tasks. LED system consisting of 18 MLT LED modules each with 4 LEDs. Rated light current 24000 lm, rated power 182.00 W, maximum light yield 132 lm/W. Light color: Warm white, similar color temperature (CCT) 3000 K, general color reproduction index (CRI) Ra > 70. Color site tolerance (initial Macadam) = 5 SDCM. Average measuring lifetime L80(TQ 25 °C) = 100,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). The rated luminous flux of the lamp can be reduced by 50% using APP and NFC (near field communication). In the delivered state, 100% of the rated luminous flux is set. Light body and end disc carrier made of die-cast aluminum. Cover plate from flat single-pane safety glass fixed in the carrier frame. Colour of lamp body / mounting bracket: Anthracite / silver gray, (DB 703 / RAL 9006). Light housing extremely weatherproof powder-coated. Further color variants according to RAL or DB color code possible. Dimension (L x B): 633 mm x 494 mm, height 275 mm. Ball-resistant as per DIN 18032-3. Protection class (EN 61140): I, protection class (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK09. Wind attack surface FW . Weighs 15.5 kg With electronic operating device, switchable. Parameterisable operating device with constant light current maintenance (CLO). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Shock resistance differential mode / common mode: 6 kV / 10 kV. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
