Name: Trilux 8169062 8169062 LED ceiling light LED (monochrome) 50 W White
Brand: Trilux
SKU: 3151829

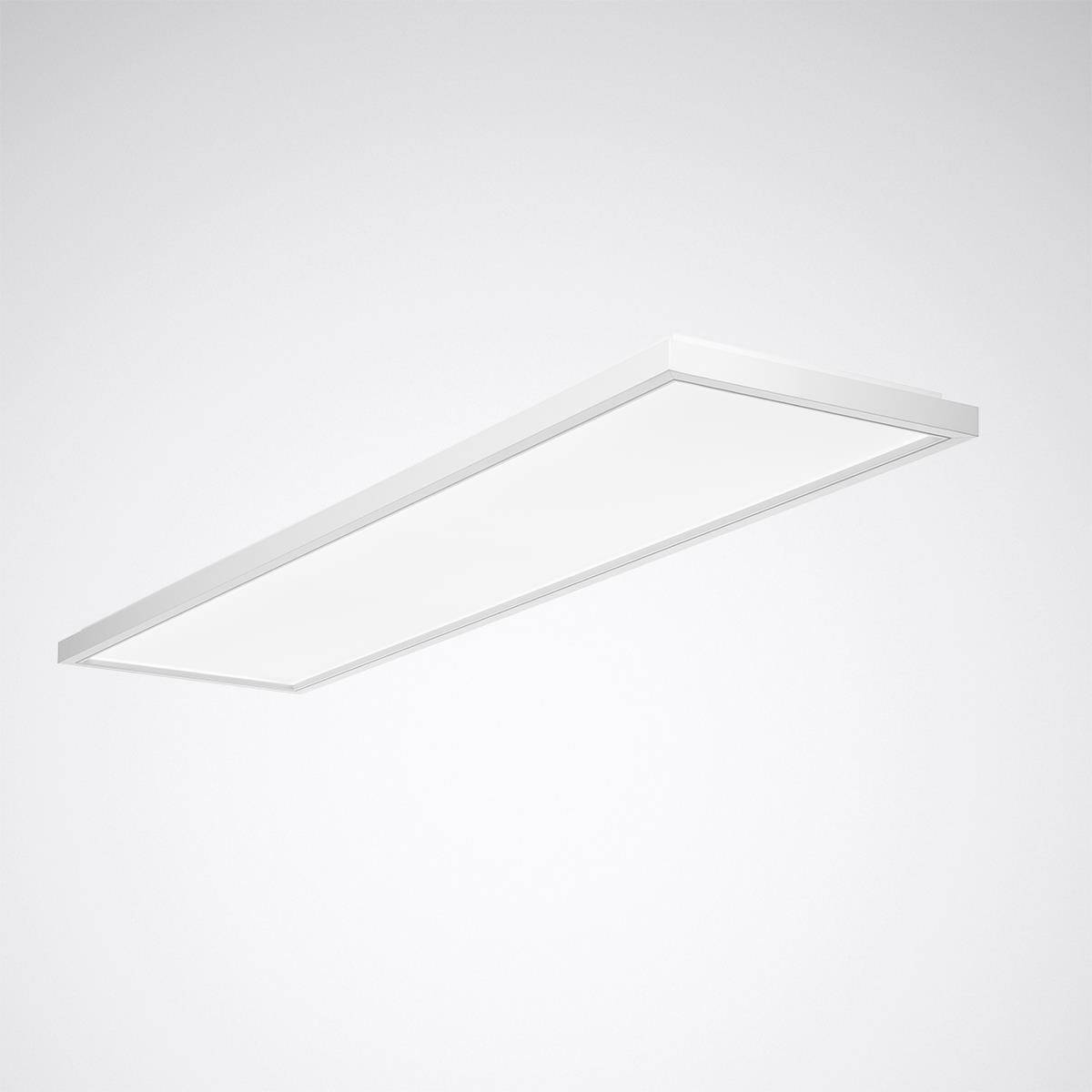

Rectangular LED ceiling light in white, mounted on a white ceiling, providing uniform, bright illumination.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Trilux LED mounted light HCL, DALI, white ArimoFit G2 #8169062

Power= 50 W
Total luminous flux= 5300 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: Yes
Suitable for pendulum suspension: Yes
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Suitable for the number of bulbs: 1
Version: Other
Material of housing: Steel
Surface protection housing: Powder-coated
Housing color: White
Cover material: Other
Design of grid: Without
Voltage type AC
Nominal voltage 220..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI-2 dimming: Yes
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: Yes
Without dimmer function: No.
Light distributor: Diffuser lens/-optic/-panel
Light distribution: Asymmetric
Radiation angle: Wide radiation 41-80°
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct
Energy efficiency of the permanently installed light bulb: Other
Max. Number of lights circuit breaker B16: 20
Max. Number of lamps line circuit breakers C16: 34
Protection class (IP) IP20
Protection class (NEMA): Other
Impact strength: IK03
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Ambient temperature according IEC62722-2-1: 25°C.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
Coverage of lights possible with heat insulation material: Yes
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 50 W
Light output 106 lm/W
Rated light current according to IEC 62722-2-1: 5300 lm
Light color: White
Colour temperature: 4000 K
Flicker value PST LM: 0.3
Color Rendering Index CRI: 80-89
Power factor 0.9
Strobe effect value SVM: 0.3
Constant luminous flux regulation: No.
Width 294 mm
Height/depth 42 mm
Length: 1532 mm
Type of wiring: Finish
Number of pins: 5
Connection type: Plug-in terminal
S/N ratio (THD): 14
Photobiological safety according to EN 62471: RG0
Adjustable color temperature: Continuously
Luminous flux can be set continuously
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
LED bulb, replaceable
With bulb: Yes

Dim: (L x W x H) 1532.00 x 294.00 x 42.00 mm

Type: Rectangular

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Width: 294.00 mm

Bulb type: LED (monochrome)

Height: 42.00 mm

Length: 1532.00 mm

Depth: 42 mm

: 50 W

Light features: Dimmable

Protection class: I

: IP20

Factory colour: White

Material: Steel

Weight: 9.5 kg

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 5300 lm

: 5300 lm

Rated luminous flux: 5300 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3151829 Trilux 8169062 8169062 LED ceiling light LED (monochrome) 50 W White

Description

Rectangular LED mounting lamp with microprismatic cover plate P-WW. Lamp with active-equipment for controlling the light color by means of separate control device. For mounting at ceilings and hangs as well as the horizontal wall mounting in the inner rooms. By means of accessories to be ordered separately, also suitable for suspended mounting (ArimoFit D.. ZST 2000). The optical system consists of a highly efficient PMMA cover with microprismatic. The micro-structured PMMA prism surface of the optical system has a dazzle effect, is yellowing-free and does not fade. Wall-washer with asymmetric light intensity distribution. Harmonic light effect due to the uniformly lit light output. Individual design of the light exit surface (e.g. by printing) and further special solutions possible on request. The following specifications for the luminous flux and the system power capacity refer to the operation of this lamp with dynamically adjustable light color (HCL) in the warm-white light color mode (2700 K). Rated light current 5300 lm, rated power 50.00 W, maximum light yield 115 lm/W. Colour temperature variable (warm white - daylight white), color temperature variable (CCT) (2700 K - 6000 K), general color reproduction index (CRI) Ra > 80. Average nominal life L80(TQ 25 °C) = 100,000 h, average rated life L90(TQ 25 °C) = 50,000 h. The light source is replaceable according to eco-design requirements (EU) 2019/2020). The light fixture consists of an assembly body with connection unit, quick connector and the operating device as well as an attached light unit with LED system, cover plate, quick connector and frame. Frame made of aluminum bar pressure profile, color white. Mounting body made of steel sheet, color white. (RAL 9016) Dimension (L x B): 1532 mm x 294 mm, height 42 mm. The frame has a 3-dimensional profile. The trailing cut creates a shadow gap and reduces the perceived total height. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 9.5 kg The packaging concept of the lamp enables the separate removal of the operating device for pre-assembly, the other components of the lamp remain protected till the final assembly. With electronic operating device for switching, dimming and controlling the light color by means of DALI Device Type 8-compatible control device. Operating device in accordance with DALI 2 standard (EN 62386). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Operating device is idle-run and protected against faulty connection, short-circuit, overload and excess temperature. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. The lamp is part of a range of built-in, mounted and suspended lights, which have the same look as each other. Variants in the range of light flux packages, light distribution curves and protection types also underline the range of applications in the product line. On request, the basic assortment can be extended with project-specific lighting features.
