Name: Trilux 8218363 8218363 LED ceiling light LED (monochrome) 47 W White
Brand: Trilux
SKU: 3151704

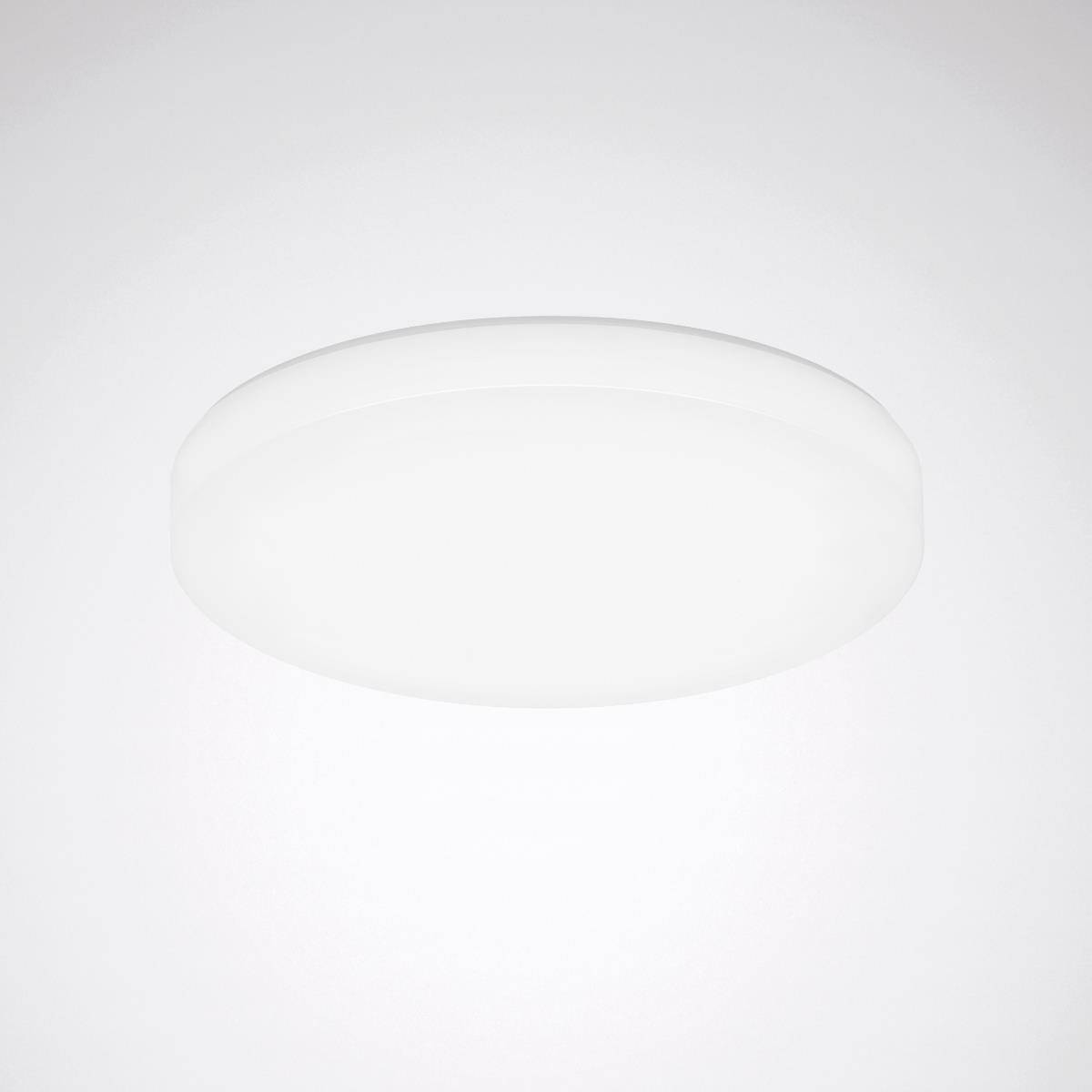

White round ceiling light against a grey background.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Trilux LED-lamp 830, white Olisiq RWD4 #8218363

Power= 47 W
Total luminous flux= 5700 lm
Colour temperature= 3000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: Yes
Suitable for pendulum suspension: Yes
Suitable for ceiling mounting: Yes
Suitable for panel mounting: Yes
Suitable for mounting on the panel: Yes
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Suitable for the number of bulbs: 1
Version: Other
Housing material: Other
Surface protection housing: Powder-coated
Housing color: White
Cover material: Other
Design of grid: Without
Voltage type AC
Nominal voltage 220..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI-2 dimming: Yes
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: Yes
Without dimmer function: No.
Light distributor: Diffuser lens/-optic/-panel
Light distribution: Symmetric
Radiation angle: Free-radiation/diffuse
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct/indirect
Energy efficiency of the permanently installed light bulb: Other
Max. Number of lights circuit breaker B16: 17
Max. Number of lamps line circuit breakers C16: 28
Protection class (IP) IP54
Protection class (NEMA): Other
Impact strength: IK06
Protection class: I
Lamp with limited surface temperature "D-sign": Yes
Ambient temperature according IEC62722-2-1: 25°C.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: Yes
With light sensor: Yes
Coverage of lights possible with heat insulation material: Yes
With air vents: No.
Filament testing according to IEC 60695-2-11:850°C - 30 s.
Max. System power 47 W
Light output 121 lm/W
Rated light current according to IEC 62722-2-1: 5700 lm
Light color: White
Colour temperature: 3000 K
Flicker value PST LM: 0.3
Color Rendering Index CRI: 80-89
Power factor 0.9
Strobe effect value SVM: 0.3
Constant luminous flux regulation: No.
Height/depth 68 mm
Outer diameter: 600 mm
Type of wiring: Suitable for through-wiring
Number of poles: 3
Connection type: Plug-in terminal
S/N ratio (THD): 14
Photobiological safety according to EN 62471: RG0
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
LED bulb, replaceable
With bulb: Yes

Dim: (Ø x H) 600 mm x 68.00 mm

Type: Circular

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Bulb type: LED (monochrome)

Height: 68.00 mm

Rating per bulb: 47 W

Depth: 68 mm

: 47 W

(Ø): 600 mm

Light features: Incl. sensor

Protection class: I

: IP54

Factory colour: White

Material: Steel

Weight: 4.6 kg

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 3000 K

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 3000 K

Total luminous flux: 5700 lm

: 5700 lm

Rated luminous flux: 5700 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3151704 Trilux 8218363 8218363 LED ceiling light LED (monochrome) 47 W White

Description

Decorative, round mounted light with a cylindrical, opal diffuser from PC, impact resistant. Design with enhanced protection class IP54 all-round. As an optional accessory, decorative coverings are available for customized lighting and room settings, which can also be implemented in custom colors on request. Developed and manufactured in Germany. LiveLink SwarSens master light with integrated HF sensor for motion detection in combination with a brightness sensor for daylight detection and Bluetooth module for networking up to 4096 LiveLink Swarm Sens Master and slave lamps in a mesh network Range of the Bluetooth® signal up to 15 m. In combination with an accessory to be ordered separately (ZVF...) The light is protected from vandalism and is resistant as per DIN 18032-3. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). With limited surface temperature, suitable for use in rooms with fire hazard according to DIN EN 60598-2-24. For wall or ceiling mounting. With the accessories to be ordered separately, also for half-fitting (ceiling with cut-out) as well as suspended mounting. The components are arranged in a carton in order to protect and support rapid assembly. The rapid mounting of the cover on the mounting body takes place without tools through click-lock. The feed opening and the mounting points correspond to those of the 740N, Mondia series. The material and structure of the diffuser covers an even and shadow-free illumination of the light surface which is easy to clean. With diffuse-wide radiating light intensity distribution, predominantly direct. With a light indirect part for surface brightening. Rated light current 5700 lm, rated power 47.00 W, light output 121 lm/W. Light color: Warm white, similar color temperature (CCT) 3000 K, general color reproduction index (CRI) Ra > 80. Average measuring lifetime L80(TQ 25 °C) = 100,000 h. The light source is exchangeable according to the eco-design requirements (EU) 2019/2020). There is no need for tools to replace the spare light source as a spare part. Light fixtures made of steel plate White surface coating (RAL 9016). Lamp diameter Ø 600 mm, lamp height 68 mm. Insect-proof lamp compartment. Protection class (EN 61140): I, protection class (DIN EN 60529): IP54, shock resistance to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 850°C. Weighs 4.6 kg With Bluetooth Low Energy (BLE) operating device for cableless control of the light (switching, dimming, scenes) within a mesh network with up to 250 participants. Operating device in accordance with DALI 2 standard (EN 62386). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
