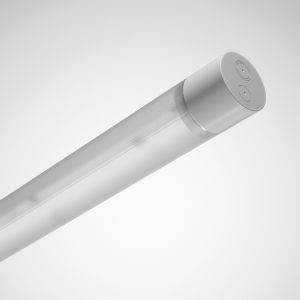

Trilux 8281040 LED wet room light LED (monochrome) Built-in LED 44 W White Grey
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED wet room lamp 840, GRAY TugraHE+18 #8281040
- Power= 44 W
- Total luminous flux= 8000 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Version: Other
- Housing material: Plastic
- Surface protection housing: Untreated
- Housing color: Grey
- Cover material: Other
- Design of grid: Without
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Operating device: Electronic transformer
- With operating device: Yes
- Removable operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimming function: Yes
- Light distributor: Other
- Light distribution: Symmetric
- Radiation angle: Medium radiation 21-40°
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct/indirect
- Energy efficiency of the permanently installed light bulb: Other
- Max. Number of lights circuit breaker B16: 36
- Max. Number of lamps line circuit breakers C16: 60
- Protection class (IP) IP69K
- Protection class (NEMA): Other
- Impact strength: IK03
- Protection class: I
- Lamp with limited surface temperature "D-sign": Yes
- Rated ambient temperature according to IEC62722-2-1: -40..45°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 44 W
- Light output 182 lm/W
- Rated light current according to IEC 62722-2-1: 8000 lm
- Light color: White
- Colour temperature: 4000 K
- Flicker value PST LM: 0.3
- Color Rendering Index CRI: 80-89
- Power factor 0.97
- Strobe effect value SVM: 0.3
- Constant luminous flux regulation: No.
- Width 81 mm
- Height/depth 81 mm
- Length: 1780 mm
- Outer diameter: 81 mm
- Type of wiring: Finish
- Number of poles: 3
- Connection type: Other
- Photobiological safety according to EN 62471: RG0
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED wet room light
- Type
Cylindrical
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
44 W
- Length
1780.00 mm
44 W
- Height
81.00 mm
- Width
81.00 mm
4000 K
- Colour
White
8000 lm
- Total luminous flux
8000 lm
- Light features
Incl. ballast
IP69K
- Factory colour
Grey
- Material
Plastic
- Weight
3.0 kg
- Dim
(Ø x H) 81 mm x 81.00 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- (Ø)
81 mm
- Rated luminous flux
8000 lm
- Nominal voltage
230 V
- Protection class
I
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148216 Trilux 8281040 LED wet room light LED (monochrome) Built-in LED 44 W White Grey
Description
Multi-variable and modern tubular lamp with 75 mm profile diameter. The PMMA lamp is suitable for use in unroofed outdoor areas due to the higher UV resistance. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). With limited surface temperature, suitable for use in rooms with fire hazard according to DIN EN 60598-2-24. For wall and ceiling mounting. Standard stainless steel mounting clips (2 piece, V2A) with triangle included in delivery Optional accessories enable further mounting concepts. For single applications. The consistent installation internal of the lamp body allows a very high flexibility in the positioning of the attachment points. The packaging is made of recyclable cardboard, plastic-free. Multiple packaging with 28 luminaires as well as project packaging with 108 lights per packaging unit additionally reduce the general consumption of resources in the overall process. Cylinder profile with optical prism structure as secondary optics. With opal profile area above and translucent profile area below the mounting channel. With symmetric narrow beam distribution of light intensity. With mainly direct radiating light intensity distribution. With a light indirect part for surface brightening. Rated light current 8000 lm, rated power 44.00 W, light output 182 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average nominal life L80(TQ 25 °C) = 100,000 h. Colour of the end cap gray, (RAL 7035). Lamp length 1780 mm, lamp height 81 mm, Ø lamp body 81 mm. The device carrier is fixed at the lamp profile with transparent devices to prevent formation of shadows. Permissible ambience temperature (ta) -40 °C - 45 °C. Protection class (EN 61140): I, protection class (DIN EN 60529): IP69K, shock resistance according to IEC 62262: IK03, test temperature of glow wire test according to IEC 60695-2-11: 650°C. Weighs 3.0 kg Connected through a 3-pin cable (3000 mm) that faces outwards. With electronic operating device, switchable. The ENEC certification by an independent testing center is in preparation. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
