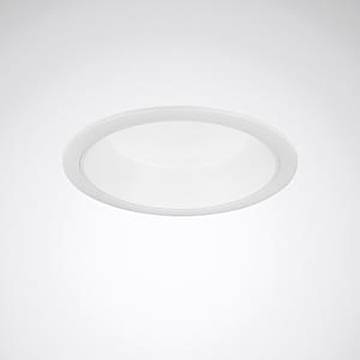

Trilux 8382551 Amatris G4 #8382551 LED recessed light
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Protection class (IP) IP20
- Surface protection: Powder-coated
- Protection class: II
- Impact strength: IK03
- Material of housing: Aluminium
- Protection class (NEMA): Other
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- LED bulb, replaceable
- Radiation angle: Medium radiation 21-40°
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: Stages
- Height/depth 82 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI-2 dimming: Yes
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with Push-button: Yes
- Without dimmer function: No.
- Reflector: Other
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 16 W
- Luminous flux: 2600 lm
- Rated light current according to IEC 62722-2-1: 2000 lm
- Installation height/depth 105 mm
- Installation diameter 200 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Outer diameter: 230 mm
- Suitable for screen workstations according to EN 12464-1: No.
- Cover material: Other
- Light distributor: Reflector
- Color consistency (McAdam ellipse): SDCM3
- Ambient temperature according IEC62722-2-1: 25°C.
- Integrated emergency power supply: No.
- Light output 125 lm/W
- Power factor 0.9
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Version: Other
- S/N ratio (THD): 10
- Lamp with limited surface temperature "D-sign": No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Photobiological safety according to EN 62471: RG0
- Max. Number of lights circuit breaker B16: 93
- Max. Number of lamps line circuit breakers C16: 93
- Flicker value PST LM: 0.1
- Strobe effect value SVM: 0.1
- Product type
LED recessed light
n.rel.
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545304 Trilux 8382551 Amatris G4 #8382551 LED recessed light
Description
Round LED downlight with white reflector. Installation without tools by rapid assembly springs. With closed, prismatic PMMA diffuser. Reflector white painted. With symmetric narrow beam distribution of light intensity. Light current can be set in 3 levels. Rated light current 1400 lm - 2600 lm, rated power 11.5 W - 20 W, maximum light yield 130 lm/W. Light color: Warm white, similar color temperature (CCT) 3000 K, general color reproduction index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 3 SDCM. Rated service life L70/B50 (TQ 25 °C) = 60,000 h. The light source can be replaced according to the eco-design requirements (EU) 2019/2020). Ceiling ring and heatsink made of die-cast aluminum. White powder-coated ceiling ring (similar to RAL 9016). Includes decorative ring to accommodate fitting. Outer dimensions of ceiling ring Ø 230 mm, light height 82 mm. Permissible ambient temperature (ta): 25 °C - +. Weighs 0.8 kg. With electronic operating device, digitally dimmable (DALI). Operating device in accordance with DALI 2 standard (EN 62386). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Separate operating device with integrated strain relief. The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
