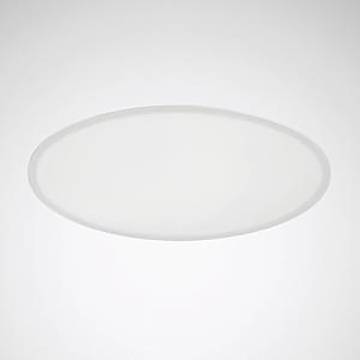

Trilux 8389363 Inplana C11 #8389363 LED ceiling spotlight
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Protection class (IP) IP20
- Surface protection: Powder-coated
- Protection class: I
- Impact strength: IK03
- Material of housing: Aluminium
- Protection class (NEMA): Other
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- LED bulb, replaceable
- Radiation angle: Wide radiation 41-80°
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: Continuously
- Luminous flux can be set continuously
- Height/depth 45 mm
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 34 W
- Luminous flux: 4000 lm
- Rated light current according to IEC 62722-2-1: 4000 lm
- Installation height/depth 45 mm
- Installation diameter 420 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: Yes
- Outer diameter: 445 mm
- Workplace training material - EN 12464-1: Yes
- Cover material: Other
- Light distributor: Other
- Color consistency (McAdam ellipse): SDCM3
- Ambient temperature according IEC62722-2-1: 25°C.
- Integrated emergency power supply: No.
- Light output 118 lm/W
- Power factor 0.95
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: Yes
- Suitable for clamp mounting: No.
- Version: Other
- S/N ratio (THD): 14
- Lamp with limited surface temperature "D-sign": No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Photobiological safety according to EN 62471: RG0
- Max. Number of lights circuit breaker B16: 20
- Max. Number of lamps line circuit breakers C16: 34
- Flicker value PST LM: 0.3
- Strobe effect value SVM: 0.3
- Product type
LED ceiling spotlight
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545838 Trilux 8389363 Inplana C11 #8389363 LED ceiling spotlight
Description
LED downlight for ceilings with a hollow space dimension = 36 mm. With CASAMBI module for integration into a non-wireline mesh network of up to 250 subscribers. The system is commissioned with the Casambi APP (iOS and Android). Installed downlight for sawn ceiling openings. Mounted in cast concrete ceilings with accessories. Installation without tools by rapid assembly springs. Ceiling cut-out Ø 420 mm, installation depth 45 mm. With primary reflector and highly efficient CDP microprismatic. With balanced, broad beam distribution. Glare evaluation in accordance with UGR classification (EN 12464-1) < 19. Harmonic light effect due to the uniformly lit light output. With Tunable White technology for color temperature control by means of a separate control system (DT8). Rated light current 4000 lm, rated power 32 W, maximum light yield 125 lm/W. Light color Tunable White (warm white - daylight white), similar color temperature (CCT) Tunable White (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 3 SDCM. The light source can be replaced according to the eco-design requirements (VO (EU) 2019/2020). Light fixtures made of die-cast aluminum White surface coating (similar to RAL 9016). Permissible ambient temperature (ta): 25 °C - +. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, protection class from room: IP54, shock resistance to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 2.5 kg With Bluetooth Low Energy operating device (BLE). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. Lamp 10 years, spare parts (LED module, operating device, optical system) available 15 years after date of invoice subject to reasonable changes to the progress.
