Trilux 8904500 Rail H-S927 #8904500 High voltage mounting rail
EAN:
Part number:
Item no:
Technical specifications
- Height: 83 mm
- Width 31 mm
- Material: Aluminium
- Colour, black
- Protection class: I
- Length: 1405 mm
- Nominal voltage 220..240 V
- Bendable: No.
- Number of groups/phases: 3
- Bus-capable: No.
- Product type
High voltage mounting rail
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547142 Trilux 8904500 Rail H-S927 #8904500 High voltage mounting rail
Description

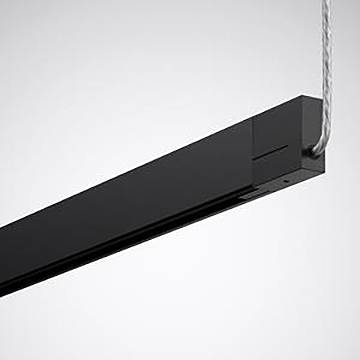

3-phase hanging power rail with DALI-equipment (6 ladder). With integrated indirect radiating LED - insert with optional cover. Light flux and color temperature are preset. System Rail (Stucchi). Bus rail segment for the start of light band with feeding device and supply line. Rated light current 2328 lm, rated power 34.5 W, maximum light yield 67 lm/W. Light color: Warm white, similar color temperature (CCT) 2700 K, general color reproduction index (CRI) Ra > 90. Color site tolerance (initial Macadam) = 3 SDCM. Average nominal lifespan L80(TQ 25°C) = 50,000 h. Made from aluminum, powder coated With fine surface structure. Colour black (similar to RAL 9005). Floor stands (L x B x H) 1405 x 31 x 83 mm.
