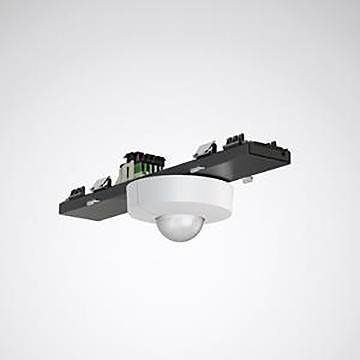

Name: Trilux 8921300 78IP50 IS 3 #8921300 Device mount 1 pc(s)
Brand: Trilux
SKU: 3540731

Technical specifications

Colour, black
Type of accessories/spare parts: Motion detector
Accessories: Yes

Product type: Device mount

: IP20

: n.rel.

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3540731 Trilux 8921300 78IP50 IS 3 #8921300 Device mount 1 pc(s)

Description

Device mount with passive infrared (PIR) motion sensor for indoor use. ON/OFF sensors.In combination with support profiles E-Line Pro 078... applications. Suitable for use in corridors and corridors. The motion sensor has a special motion detection range. Aperture angle 45°. Radial coverage: 12 x 6 m (72 m²). Tangential coverage range: 23 x 6 m (138 m²). Recommended mounting height 2.5 - 5.0 m. With strong relay for high switching capacity. 280 switch zones Functions: Normal/test mode, teach mode, manual mode. Temperature range: -20 to +50 °C. Protection class IP20 Device carrier made of steel sheet, coated. Colour black (similar to RAL 9005). Dimensions (L x W x H) 368 x 126 x 119.5 mm.

This text is machine translated.
