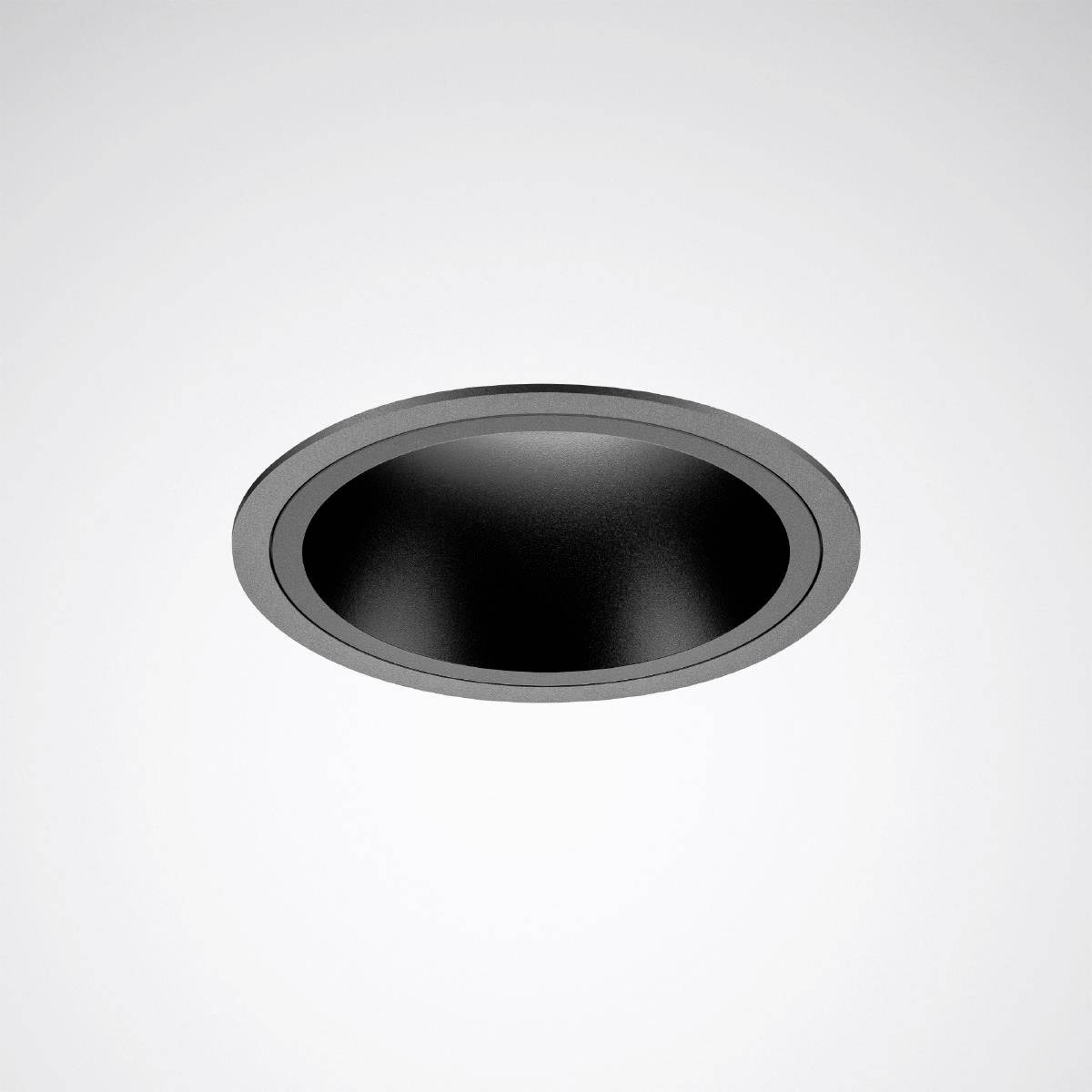

Trilux 9002015532 SNSRC1SRM LED recessed/surface-mount light LED (monochrome) Built-in LED 11 W Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Trilux LED downlight 3000K DALI SNSRC1SRM#9002015532
- Power= 11 W Total luminous flux= 700 lm Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED recessed/surface-mount light
- Operating voltage
230 V
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
11 W
11 W
- Total luminous flux
700 lm
3000 K
- Colour
Warm white
- Radiation angle
20°
- Light features
Pivoted
Ceiling mount option
Dimmable

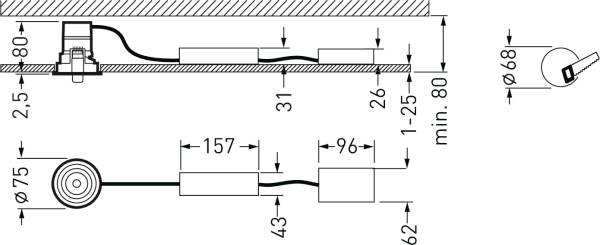

- Recess diameter
68 mm
- Recess depth
80 mm
- Outside Ø
75 mm
IP20
- Protection class
II
- Factory colour
Black
- Material
Aluminium
n.rel.
- Dim
(Ø x H) 75 mm x 82.5 mm
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
82.5 mm
- (Ø)
75 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2747851 Trilux 9002015532 SNSRC1SRM LED recessed/surface-mount light LED (monochrome) Built-in LED 11 W Black
User & Safety Instructions
User & Safety Instructions 2747851 Trilux 9002015532 SNSRC1SRM LED recessed/surface-mount light LED (monochrome) Built-in LED 11 W Black
Description
Compact LED Downlight in a circular design. Flush-mounted downlight with frame for sawn ceiling openings. Installation without tools by rapid assembly springs. Ceiling cut-out dimension Ø 68 mm. Cleaning plates for installation in existing ceiling openings with unsuitable dimensions are available as accessories to be ordered separately. Installation depth greater than = 80 mm, lamp height 83 mm. With black coated plastic reflector. Colour of the ceiling mounting frame: Black. Light distribution characteristic and half-value angle: 24° Medium flood Light steering through collimator/lens technology. Limitation of direct glare in accordance with UGR 19. With a LED module. Lamp current 800 lm, power rating 10 W, light light output 80 lm/W. Light color: Warm white, similar color temperature (CCT) 3000 K, general color reproduction index (CRI) Ra= 90. Color site tolerance (initial Macadam) = 3 SDCM corresponds to a very high color consistency of the LED in the application. Average lifetime L90(TQ 25 °C) = 50,000 h, average life L80(TQ 25 °C) = 70,000 h. Permissible ambient temperature (ta): -20°C - +25°C. Housing and heatsink made of die-cast aluminum. Protection class (EN 61140) II, protection class (DIN EN 60529) IP20. Shock resistance according to IEC 62262:IK02/0.2 J, glow wire test according to IEC 60695-2-11:850°C. The mains-side connection of the ballast is done by means of connection clamps. With electronic ballast, digitally dimmable (DALI). Switch and dimmable light using button function with DALI control terminals (Touch DIM). Possible dimming range: 1...100%. Live link ready. This lamp meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
