Trilux 9002015817 SNSRC5HRV LED recessed/surface-mount light LED (monochrome) Built-in LED 22 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Trilux LED downlight 3000K DALI SNSRC5HRV#9002015817
- Power= 22 W Total luminous flux= 2000 lm Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED recessed/surface-mount light
- Operating voltage
230 V
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
22 W
22 W
- Total luminous flux
2000 lm
3000 K
- Colour
Warm white
- Radiation angle
40°
- Light features
Pivoted
Ceiling mount option
Dimmable

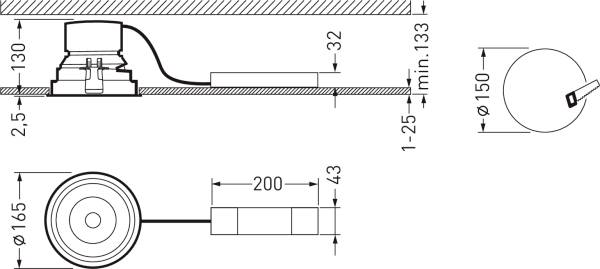

- Recess diameter
150 mm
- Recess depth
130 mm
- Outside Ø
165 mm
IP20
- Protection class
II
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(Ø x H) 165 mm x 132.5 mm
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
132.5 mm
- (Ø)
165 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2747381 Trilux 9002015817 SNSRC5HRV LED recessed/surface-mount light LED (monochrome) Built-in LED 22 W White
User & Safety Instructions
User & Safety Instructions 2747381 Trilux 9002015817 SNSRC5HRV LED recessed/surface-mount light LED (monochrome) Built-in LED 22 W White
Description

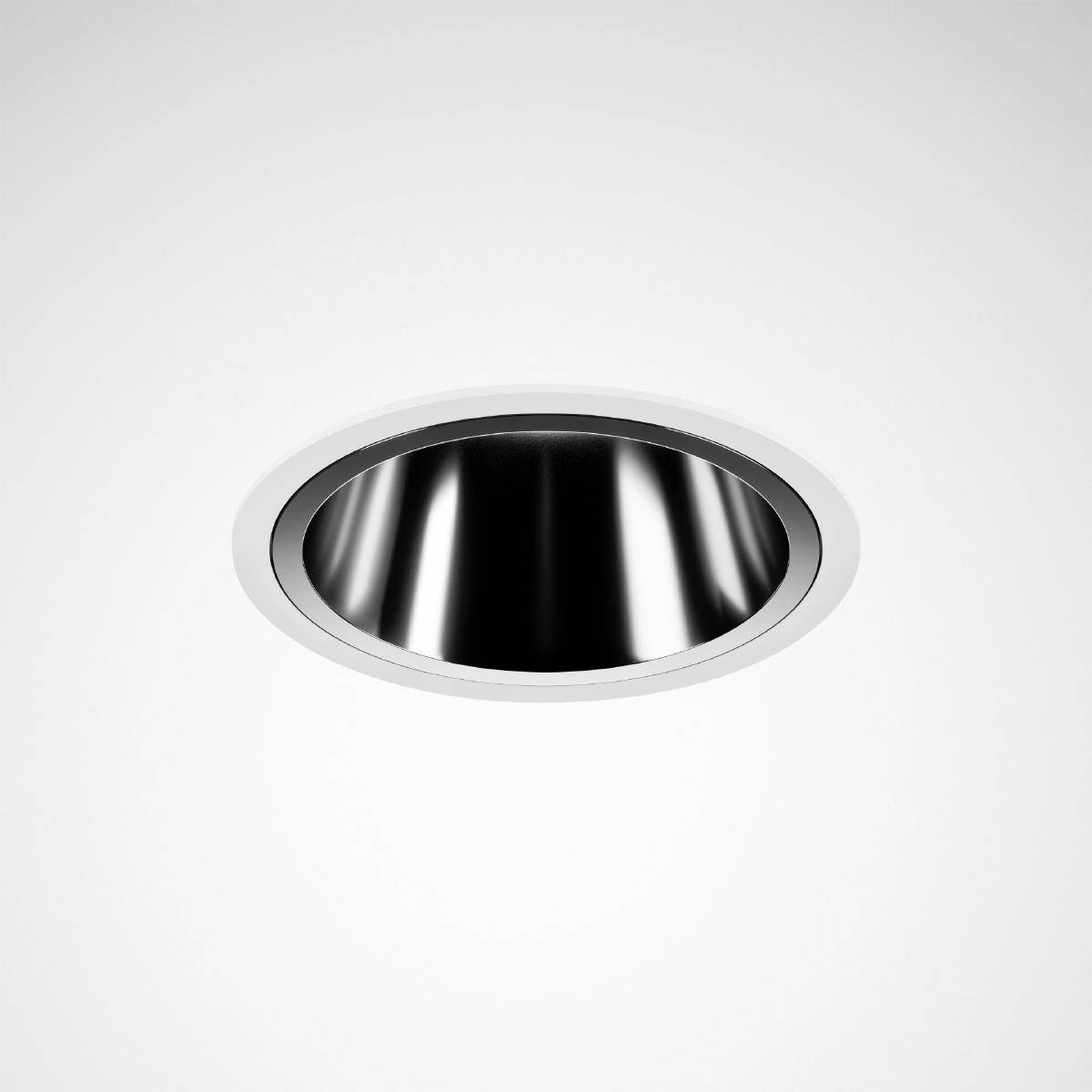

Compact LED Downlight in a circular design. Flush-mounted downlight with frame for sawn ceiling openings. Installation without tools by quick mounting clamp. Ceiling cut-out dimension Ø 150 mm. Cleaning plates for installation in existing ceiling openings with unsuitable dimensions are available as accessories to be ordered separately. Installation depth greater than = 130 mm, lamp height 133 mm. With high-gloss vapor-deposited plastic reflector. Colour of the ceiling mounting frame: White. Light distribution characteristics and half-value angle: 60° Very Wide Flood. Light steering through collimator/lens technology. Limitation of direct glare in accordance with UGR 19. With a LED module. Lamp current 2,000 lm, power rating 22 W, light light output 90 lm/W. Light color: Warm white, similar color temperature (CCT) 3000 K, general color reproduction index (CRI) Ra= 90. Color site tolerance (initial Macadam) = 3 SDCM corresponds to a very high color consistency of the LED in the application. Average lifetime L90(TQ 25 °C) = 50,000 h, average life L80(TQ 25 °C) = 70,000 h. Permissible ambient temperature (ta): -20°C - +25°C. Housing and heatsink made of die-cast aluminum. Protection class (EN 61140) II, protection class (DIN EN 60529) IP20. Shock resistance according to IEC 62262:IK02/0.2 J, glow wire test according to IEC 60695-2-11:850°C. With 5-pin terminal up to 2.5 mm² for mains connection as well as separate 5-pin line forwarding box. The mains-side connection of the ballast is done by means of connection clamps. With electronic ballast, digitally dimmable (DALI). Switch and dimmable light using button function with DALI control terminals (Touch DIM). Possible dimming range: 1...100%. Live link ready. The light is silicon-free. This lamp meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
