Trilux 9002015859 SNSRD7MRX LED recessed/surface-mount light LED (monochrome) Built-in LED 23 W White

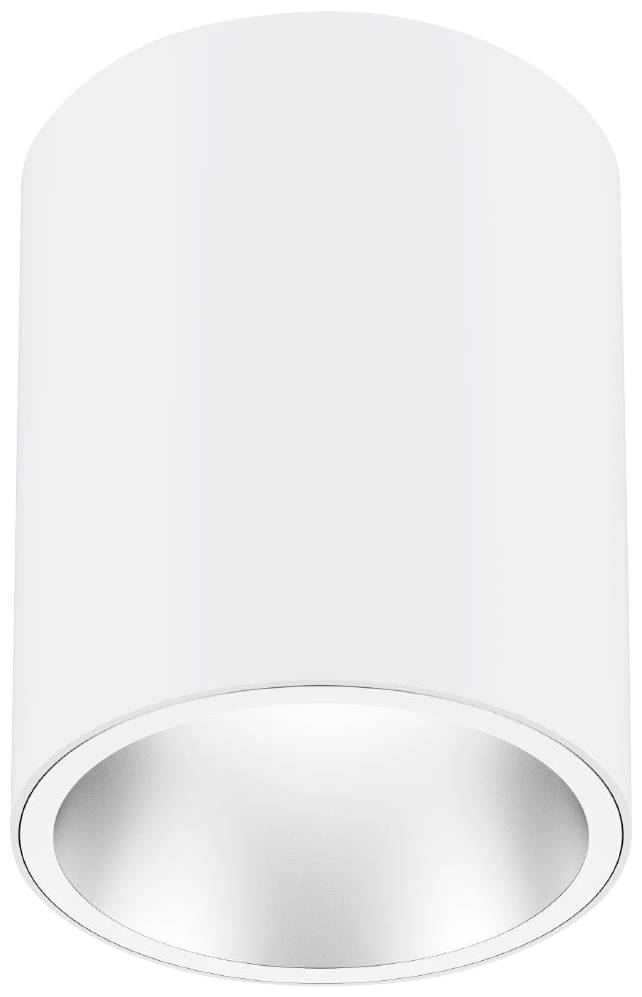

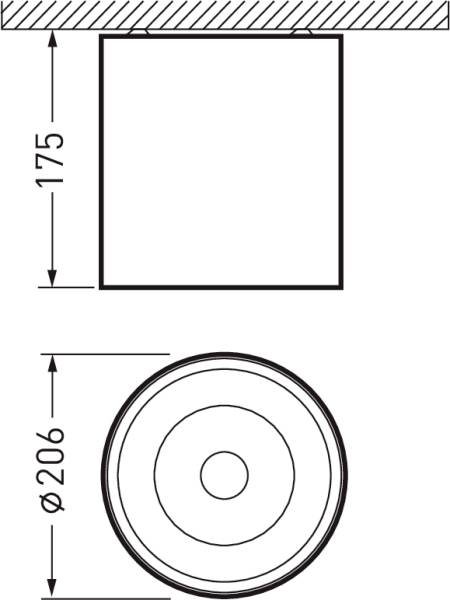

Compact LED Downlight in a circular design. Downlight for ceiling mounting. Lamp diameter Ø 210 mm. Lamp height 175 mm. With matt, glossy, metalized plastic reflector. Colour of light: White. Light distribution characteristics and half-value angle: 80° Extreme Wide Flood. Light steering through diffuser/reflector. Limitation of direct glare in accordance with UGR 22. With a LED module. Lamp current 2,600 lm, power rating 23 W, light light output 113 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color reproduction index (CRI) Ra= 80. Color site tolerance (initial Macadam) = 3 SDCM corresponds to a very high color consistency of the LED in the application. Average lifetime L90(TQ 25 °C) = 50,000 h, average life L80(TQ 25 °C) = 70,000 h. Permissible ambient temperature (ta): -20°C - +25°C. Housing and heatsink made of die-cast aluminum. Protection class (EN 61140) I, protection class (DIN EN 60529) IP20. Shock resistance according to IEC 62262:IK02/0.2 J, glow wire test according to IEC 60695-2-11:850°C. With 5-pin terminal up to 2.5 mm² for mains connection as well as separate 5-pin line forwarding box. The mains-side connection of the ballast is done by means of connection clamps. With electronic ballast, digitally dimmable (DALI). Switch and dimmable light using button function with DALI control terminals (Touch DIM). Possible dimming range: 1...100%. Live link ready. This lamp meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.

This text is machine translated.
