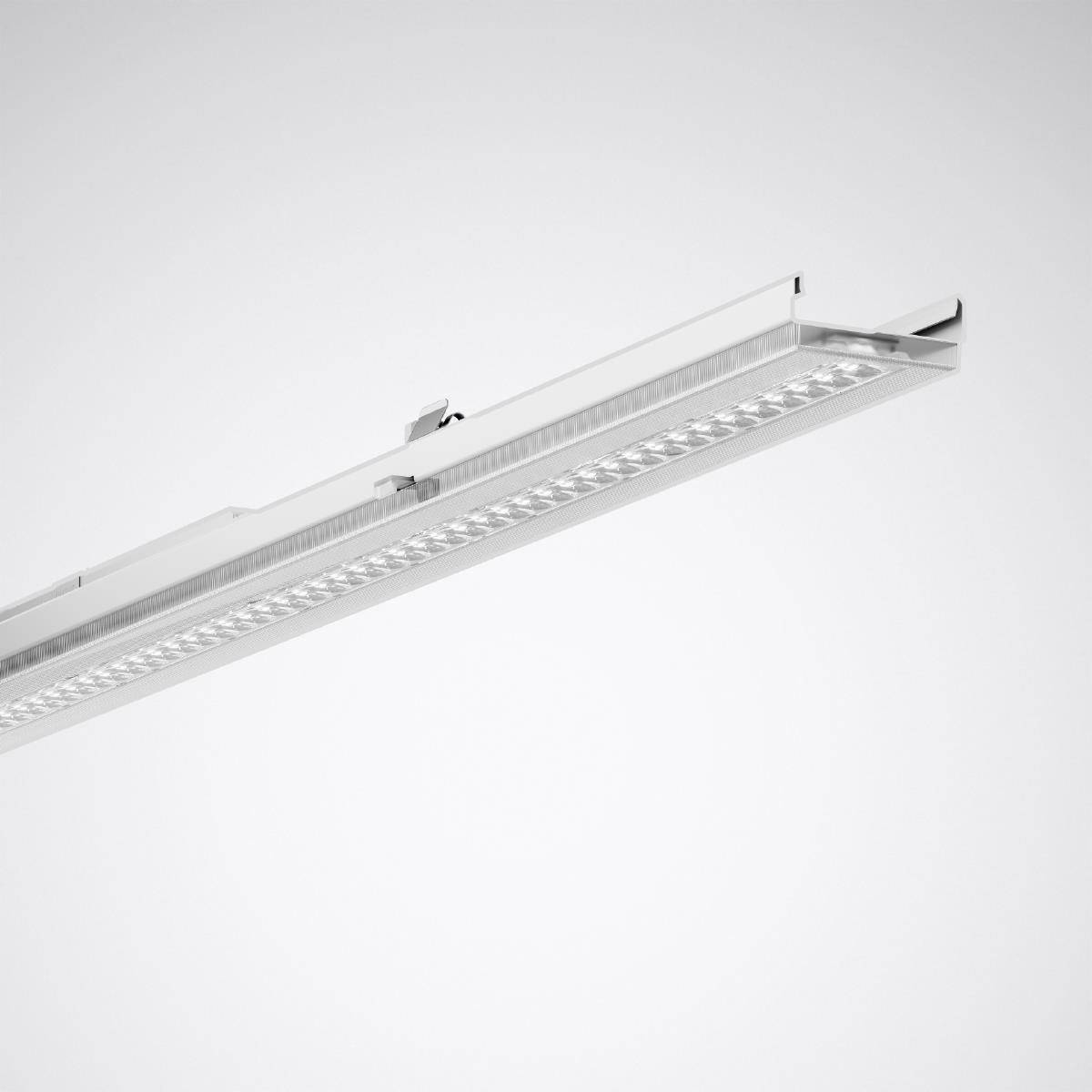

Name: Trilux 9002114286 9002114286 LED device mount 74 W LED (monochrome) White 1 pc(s)
Brand: Trilux
SKU: 3149261

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for the number of bulbs: 1
LED bulb, replaceable
Version: Other
With bulb: Yes
Material of housing: Steel
Housing color: White
Voltage type AC
Nominal voltage 220..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: No.
Dimmer DMX: No
Dimmer manufacturer-specific: No.
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Light: Focus lens
Reflector: Without
Light distribution: Symmetric
Light emission: Direct
Emission angle: Narrow beam 11 - 20°
Color consistency (McAdam ellipse): SDCM3
Energy efficiency of the permanently installed light bulb: Other
Protection class (IP): IP50
Protection class: I
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Suitable for emergency light: No.
Integrated emergency power supply: No.
Max. System power 74 W
Rated light current according to IEC 62722-2-1: 12600 lm
Light output 170 lm/W
Light color: White
Colour temperature: 6500 K
Color Rendering Index CRI: 80-89
Power factor 0.95
Constant luminous flux regulation: No.
Adjustable radiation angle: No.
Adjustable color temperature: No.
Luminous flux can be set: No
Width 62 mm
Height/depth 50 mm
Length: 2211 mm
Type of wiring: Suitable for through-wiring
Number of poles: 3
Connection type: Plug-in terminal

Product type: LED device mount

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 74 W

: 74 W

: 6500 K

Colour: White

: 12600 lm

Total luminous flux: 12600 lm

Light features: Incl. ballast

Test mark: HACCP

: IP50

Protection class: I

Factory colour: White

Material: Steel

Dim: (L x W x H) 2211.00 x 62.00 x 50.00 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature (max.): 6500 K

Colour temperature (min.): 6500 K

Colour temperature range: 6500 - 6500 K

Width: 62.00 mm

Height: 50.00 mm

Length: 2211.00 mm

Rated luminous flux: 12600 lm

Light bulb included: Yes

Nominal voltage: 230 V

UKCA: yes
