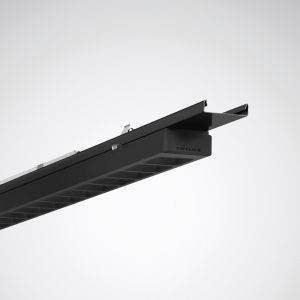

Name: Trilux 9002244216 9002244216 LED tape light 24 W LED (monochrome) Black 1 pc(s)
Brand: Trilux
SKU: 3149303

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for the number of bulbs: 1
LED bulb, replaceable
Version: Other
With bulb: Yes
Material of housing: Steel
Black enclosure
Voltage type AC
Nominal voltage 220..240 V
Operating device: Electronic transformer
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: No.
Dimmer DMX: No
Dimmer manufacturer-specific: No.
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Light: Focus lens
Reflector: Other
Light distribution: Symmetric
Light emission: Direct
Radiation angle: Wide radiation 41-80°
Color consistency (McAdam ellipse): SDCM3
Energy efficiency of the permanently installed light bulb: Other
Protection class (IP) IP20
Protection class: I
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Suitable for emergency light: No.
Integrated emergency power supply: No.
Max. System power 24 W
Rated light current according to IEC 62722-2-1: 4000 lm
Light output 167 lm/W
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Power factor 0.75
Constant luminous flux regulation: No.
Adjustable color temperature: No.
Luminous flux can be set: No
Width: 69 mm
Height/depth 72 mm
Length: 1474 mm
Number of poles: 3
Connection type: Plug-in terminal

Product type: LED tape light

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

Rating per bulb: 24 W

: 24 W

: 4000 K

Colour: White

: 4000 lm

Total luminous flux: 4000 lm

Light features: Incl. ballast

Test mark: DIN 10500

: IP20

Protection class: I

Factory colour: Black

Material: Steel

Dim: (L x W x H) 1474.00 x 69.00 x 72.00 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Width: 69.00 mm

Height: 72.00 mm

Length: 1474.00 mm

Rated luminous flux: 4000 lm

Light bulb included: Yes

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3149303 Trilux 9002244216 9002244216 LED tape light 24 W LED (monochrome) Black 1 pc(s)

Description

LED device-carrier for E-Line lighting system 7651 Fix. Designed for use in applications with high demands on temperature resistance, light efficiency and life of the light band. Device holders with a length of 1474 mm are suitable for the set-up of new plants as well as for renovation applications in existing plants with E-Line T5N / LED light band systems. Fulfils DIN 10500. The lamps are suitable for applications in HACCP, IFS and/or BRC Global Standard Food certified companies in the food and beverage industry. For combination with support profiles E-Line Fix 0765 Compatible with carrier profiles E-Line T5N/LED 07650 Attachment to the supporting profile by tool-free operable stainless steel snap locks. The correct mounting of the device carrier with the support profile is confirmed by a click-in sound. The transparent mounting elements made of UV-stabilized polycarbonate can be removed after a successful installation and thus ensure theft and dismantling protection. A combination of device carriers of different radiation characteristics or light output within a light band application creates a harmonious and uniform appearance of the lighting system through uniform design dimensions of the variants. The optical system with a precisely matched combination of LED lenses and blending elements provides a very high visual comfort with very high light technical performance. With symmetric deep-wide radiating light intensity distribution. Screen-compliant according to EN 12464-1 by limited luminous densities L = 3000 cd/m² for radiation angle above 65° all round. Shallow cubes, black, with fine surface structure (RAL9005). Screen-compliant according to EN 12464-1 by limited luminous densities L = 3000 cd/m² for radiation angle above 65° all round. With two LED modules (2 x 96 LED). Generation of light free of infrared (IR) and ultraviolet (UV) proportions. The lamp light current of the device carrier is electronically parameterized in the production process as requested by the customer. Parameterized rated luminous flux of the device carrier: 4,000 lm. Rated output 24 Watt, Light output 167 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) 80, color site tolerance (initial Macadam) = 3 SDCM. Average load life L80(TQ 50 °C) = 70,000 h. Device carrier made of sheet steel, black coated Length of device carrier 1,474 mm. Permissible ambient temperature (ta) 50 °C. Protection class (DIN EN 60529):IP20 Protection class EN 61140): I. Shock resistance according to IEC 62262: IK02, test temperature of glow wire test in accordance with IEC 60695-2-11: 650°C. Self-activating electrical connection through contact pins with phase selection. The phase selection is done without any tools. With mechanical incorrect mounting protection. With electronic operating device, switchable. This lamp meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. A special online tool is available for the simple and quick planning and configuration process of the application. The resource-optimized packaging concept of the light band components facilitates assembly and protects the environment.

This text is machine translated.
