Trilux Actison Fi #7427951 7427951 LED arena light LED (monochrome) 69 W White

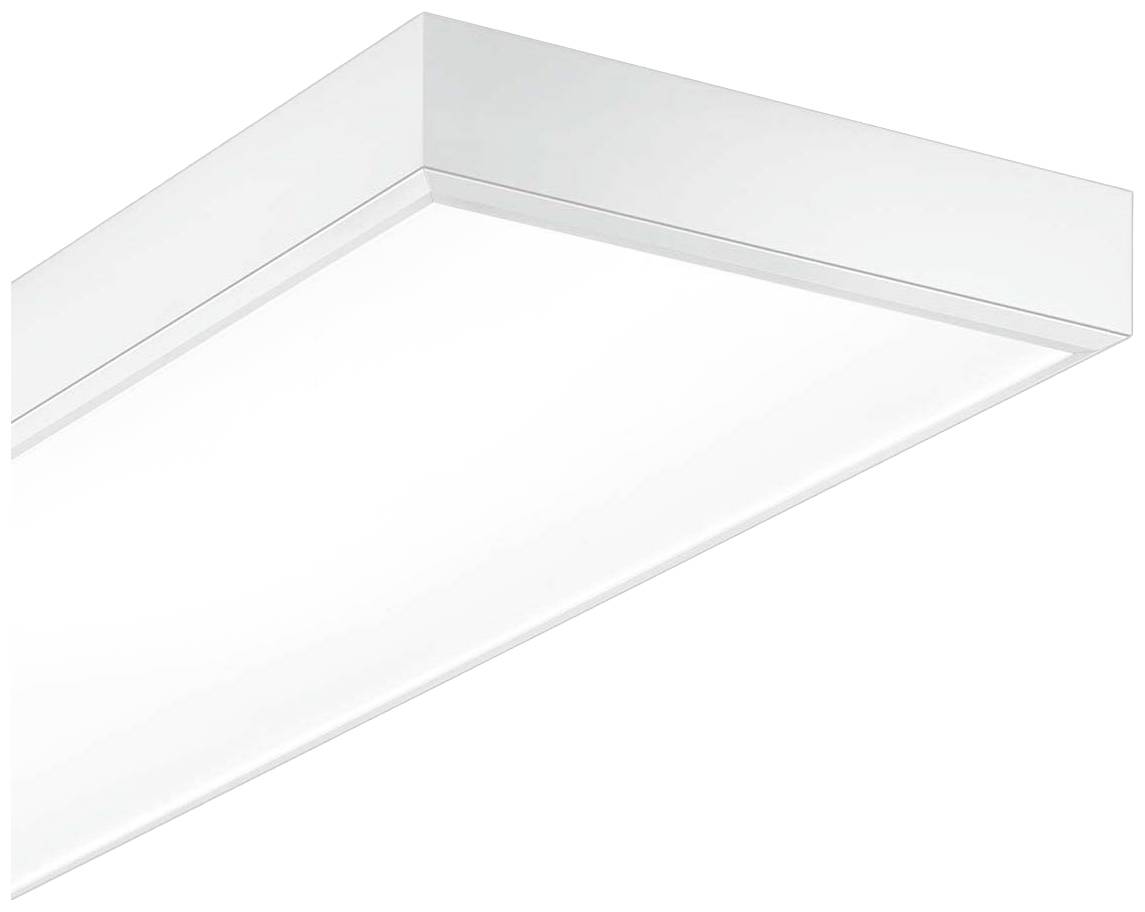

Ceiling light with a rectangular white housing and a diffused cover for uniform light distribution.

Ceiling light with a rectangular white housing and a diffused cover for uniform light distribution.

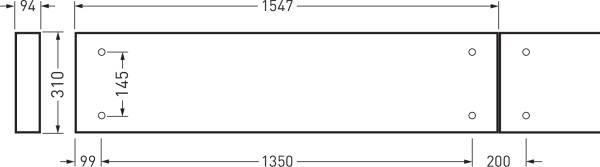

Technical drawing of a rectangular beam with dimensions: Length 1547 mm, Width 310 mm. Drill holes marked.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: LED arena light

Type: Rectangular

Operating voltage: 220 V
240 V

No. of bulbs: 1

Bulb type: LED (monochrome)

: 69 W

: 4000 K

Colour: White

Total luminous flux: 9300 lm

Light features: Usable as a pendant light
Ceiling mount option
Recess mount option
Suitable for wall mounting
Dimmable

Protection class: I

: IP20

Factory colour: White

Material: Steel

Weight: 11.3 kg

Dim: (L x W x H) 1548 x 310 x 97 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature range: 4000 K

Width: 310 mm

Height: 97 mm

Length: 1548 mm

Recess length: 1555 mm

Recess width: 335 mm

Light bulb included: Yes

Recess depth: 110 mm

Radiation angle: 80°

UKCA: yes
