Trilux Actison Fit #7238251 7238251 LED arena light LED (monochrome) 144 W White

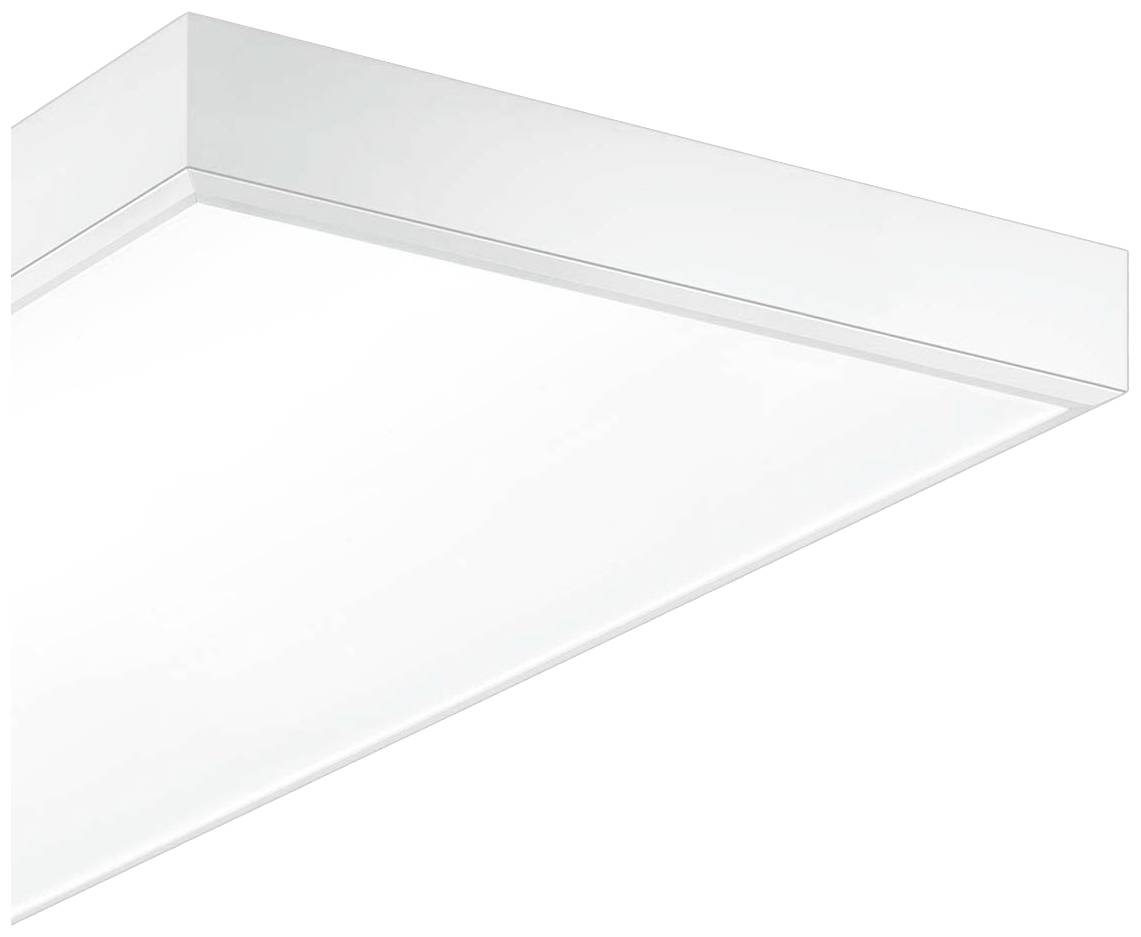

White, rectangular LED ceiling light with minimalist design. Perfect for contemporary interiors.

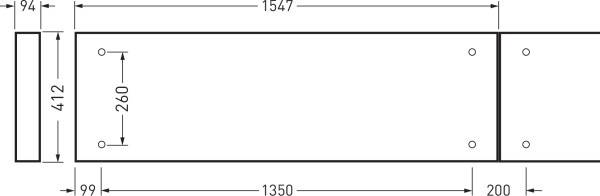

Technical drawing of a rectangular object, dimensions: 1547x412mm, smaller segments 94mm and 200mm. Contains four drill holes, spacing 1350mm.
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

LED arena light

Operating voltage

230 V

No. of bulbs

1

Bulb type

LED (monochrome)

144 W

4000 K

Colour

White

Total luminous flux

20000 lm

Light features

Usable as a pendant light

Ceiling mount option

Recess mount option

Suitable for wall mounting

Dimmable

Protection class

I

IP20

Factory colour

White

Material

Steel

Dim

(L x W x H) 1548 x 412 x 97 mm

n.rel.

Colour rendering index

80-89

Colour temperature range

4000 K

Width

412 mm

Height

97 mm

Length

1548 mm

Recess length

1555 mm

Recess width

437 mm

Light bulb included

Yes

Recess depth

110 mm

Radiation angle

80°

UKCA

not relevant
