1/2
Trilux Actison Fit #7298151 7298151 LED arena light LED (monochrome) LED 146 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
LED arena light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
LED
- Rating per bulb
146.00 W
146 W
4000 K
- Colour
White
20000 lm
- Total luminous flux
20000 lm
- Light features
Incl. light sensor
Usable as a pendant light
Ceiling mount option
Recess mount option
Suitable for wall mounting
Dimmable
- Protection class
I
IP20
- Factory colour
White
- Material
Steel
- Weight
15.0 kg
- Dim

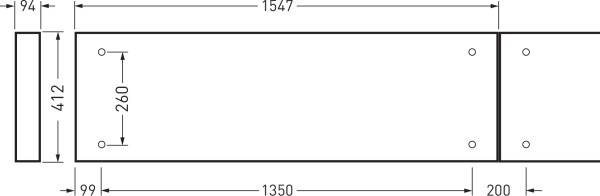

(L x W x H) 1548 x 412 x 97 mm
n.rel.
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Width
412 mm
- Height
97 mm
- Length
1548 mm
- Recess length
1555 mm
- Recess width
437 mm
- Light bulb included
Yes
- Recess depth
110 mm
- Radiation angle
80°
- UKCA
not relevant
