Trilux CS19 100RB6L 7719051 LED garden spotlight 24 W Colours (LEDs): Neutral white
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Trilux LED-Lightscribe 740, DALI, ANTHR. CS19 100RB6L#7719051
- Power= 24 W
- Total luminous flux= 3200 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Product type
LED garden spotlight
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
24 W
24 W
4000 K
- Colour
Neutral white
3200 lm
- Total luminous flux
3200 lm
- PIR detection angle (horizontal)
80°
- Light features
Pivoted
- Rotation range (max.)
360°
- Protection class
IP65
- Factory colour
Anthracite
- Material
Aluminium
- Weight
15.0 kg

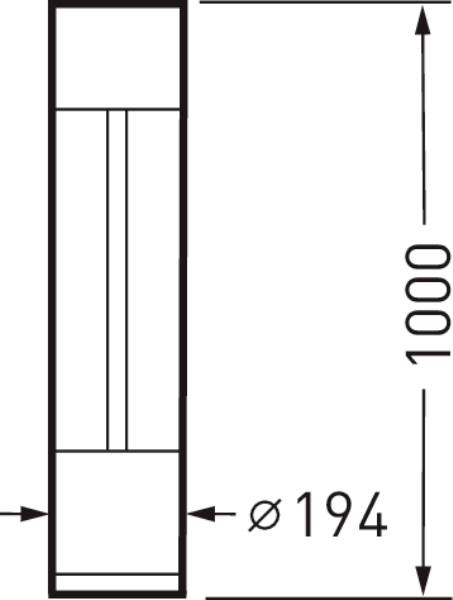

- Dim
(Ø x D) 193.7 mm x 1044 mm
n.rel.
- Type
Cylindrical
- Colour rendering index
70-79
- Light bulb included
Yes
- Width
193.7 mm
- Depth
1044 mm
- (Ø)
193.7 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2740185 Trilux CS19 100RB6L 7719051 LED garden spotlight 24 W Colours (LEDs): Neutral white
User & Safety Instructions
User & Safety Instructions 2740185 Trilux CS19 100RB6L 7719051 LED garden spotlight 24 W Colours (LEDs): Neutral white
User & Safety Instructions 2740185 Trilux CS19 100RB6L 7719051 LED garden spotlight 24 W Colours (LEDs): Neutral white
Description
Lamp head of modular, decorative LED lighting system. Design with a clear PMMA tank. The pole system is designed for use in areas of the terrain category 1 to wind zone 4. Can be attached to a compatible standard pipe. Compatible system floor tubes are available as separate units in different lengths as well as alternatively with base plate or ground piece. The steel upright tubes have a diameter of 193.7 mm. Optical system running in Multi Lens Technology (MLT). Light optics comprising of highly efficient, UV and temperature-resistant lens systems. With rotary-symmetrical wide beam distribution of light intensity. Other radiation characteristics are available for flexible adaptation to customer-specific lighting tasks. Rated light current 3200 lm, rated power 23.00 W, light output 139 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra greater than 70. Color location tolerance (initial Macadam) = 5 SDCM, additional LED light colors available on request. Average nominal life LCLO(TQ 25 °C) = 100,000 h. Light fixtures made of die-cast aluminum Ø 193.7 mm. Anthracite color, similar to DB703, with metal effect, highly weatherproof, powder-coated. (DB 703) Lakeside weather suitable coating on request. Weight: 15.0 kg Other colors as well as anti-graffiti coating on request. Terminal cylinder made of PMMA, clear. Lamp body can be rotated horizontally by 360° continuously. No screws are visible in the connection area of the standpipe and lamp head. A design joint thereby visually underlines the modularity of the light point system. Protection class (EN 61140): II, protection class (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK05. Ready-wired with free-hanging electric connection cable. With electronic operating device, digitally dimmable (DALI). Operating device in accordance with DALI 2 standard (EN 62386). Surge voltage strength 6 / 10 kV. Can be parameterized with luminous flux constant being maintained (CLO). Connected load at the end of the life: 24.00 W. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. In addition, the lamp is ENEC-certified through an independent testing center.
