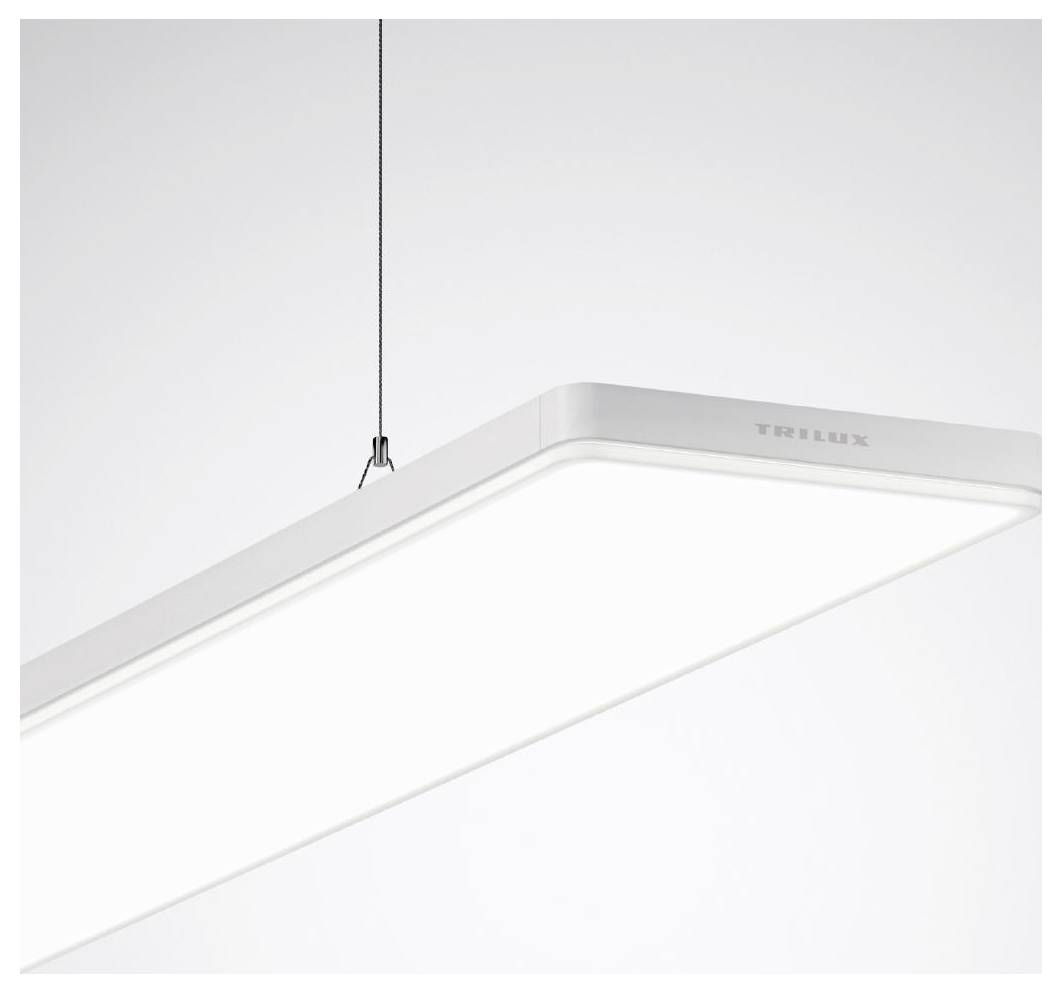

Image similar
Trilux Lunexo H1 C #7792262 7792262 LED pendant light
EAN:
Part number:
Item no:
Technical specifications
- Width 200 mm
- Number of pins: 5
- Protection class (IP) IP20
- Protection class: I
- Impact strength: IK03
- Material of housing: Aluminium
- Protection class (NEMA): Other
- Length: 1200 mm
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- Bulb: LED not replaceable
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: Continuously
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Height/depth 45 mm
- Type of wiring: Suitable for through-wiring
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI-2 dimming: Yes
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct/indirect
- Max. System power 70 W
- Rated light current according to IEC 62722-2-1: 6500 lm
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Cover material: Other
- Design of grid: Without
- Light distributor: Other
- Color consistency (McAdam ellipse): SDCM3
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- Light output 93 lm/W
- Power factor 0.95
- Version: Other
- Lamp with limited surface temperature "D-sign": No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Direct/indirect parts separately adjustable: Yes
- Max. Number of lights circuit breaker B16: 19
- Max. Number of lamps line circuit breakers C16: 32
- Glare limiter (UGR): 19
- With suspension: Yes
- Pendant length: 1500 mm
- Flicker value PST LM: 0.3
- Strobe effect value SVM: 0.3
- Product type
LED pendant light
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549378 Trilux Lunexo H1 C #7792262 7792262 LED pendant light
Description
Exclusive rectangular LED hanging light with rounded edges and visible light edge. With integrated LiveLink WiFi control device for daylight dependent control and presence detection as well as WLAN module for a safe start-up and operation (WPA2 encryption). Pre-defined space configurations (use cases) with all planning-relevant data enable an easy and fast commissioning. Control of up to 64 DALI subscribers. The APP LiveLink installation for tablet PCs is used for commissioning. Hanging lamp for single lamp application. Suspended mounting by means of Y-cable suspension included in the delivery. With inner Micro-prismatic CDP-I. With balanced, broad beam distribution. Glare evaluation in accordance with UGR classification (EN 12464-1) < 19. Appropriate for screen work according to EN 12464-1 With Tunable White technology for the control of the light color by means of a separate control system (DT8). LED panels equipped with LEDs of the light color warm-white and daylight white. Rated light current 6500 lm, rated power 63 W, maximum light yield 103 lm/W. Light color Tunable White (warm white - daylight white), similar color temperature (CCT) Tunable White (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Color site tolerance (initial Macadam) = 3 SDCM. Light fixtures made of aluminum-extruded profile. Head pieces made from die-cast aluminum. White surface coating (similar to RAL 9016). Dimensions (L x B) 1200 x 200 mm, lamp height 45 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection class (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. Weighs 9.0 kg Cable suspension and electrical connection cable included. Standard chipping length: 1500 mm. With three electronic operating units, digitally dimmable (DALI DT8). Operating device in accordance with DALI 2 standard (EN 62386). The device can be replaced according to the eco-design requirements (VO (EU) 2019/2020). The product complies with the essential requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. Lamp 10 years, spare operating unit 15 years after date of invoice, available subject to reasonable changes that serve the progress. Spare parts LED module and optical system are not available due to the design.
