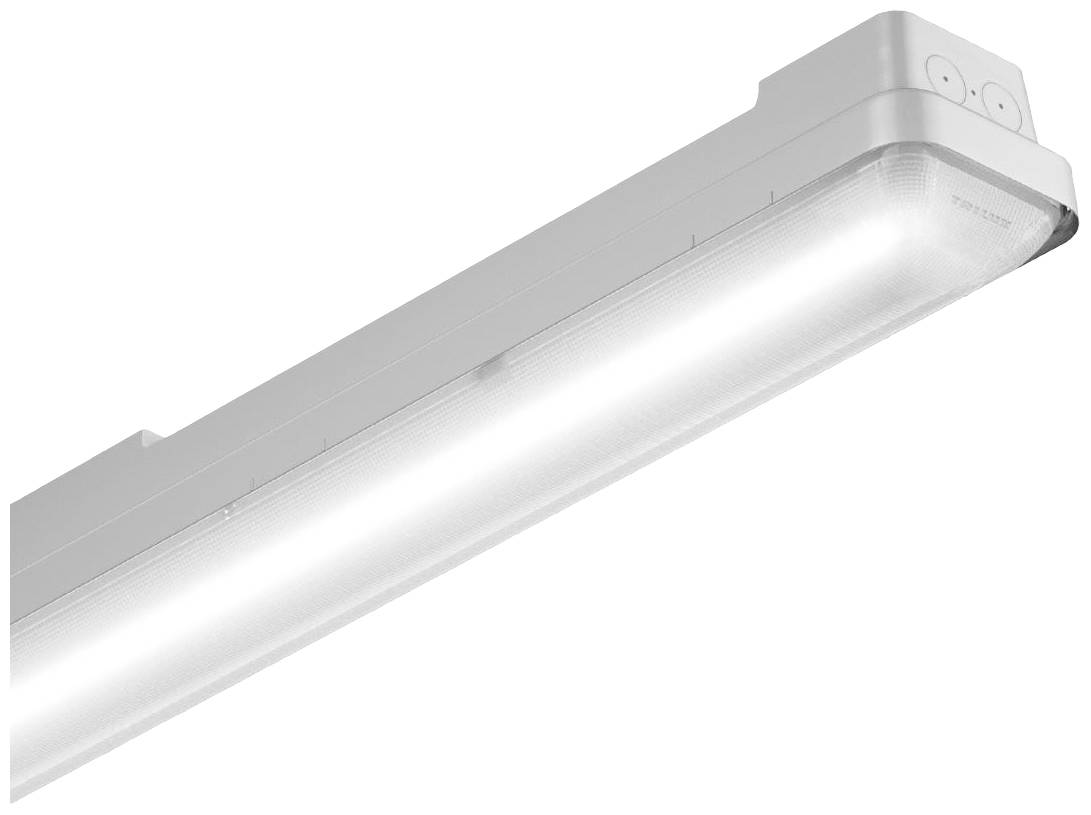

Trilux OleveonF 6 L LED wet room light LED (monochrome) Built-in LED 48 W Neutral white Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Trilux LED wet room light 840 OleveonF 6 L#7847840
- Power= 48 W
- Total luminous flux= 6400 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Product type
LED wet room light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
20 W
- Length
695 mm
48 W
- Height
91 mm
- Width
102 mm
4000 K
- Colour
Neutral white
2000 lm
- Total luminous flux
6400 lm
- Light features
Suitable for wall mounting
Ceiling mount option
IP66
- Factory colour
Grey
- Material
PC
- Weight
2.2 kg
- Dim

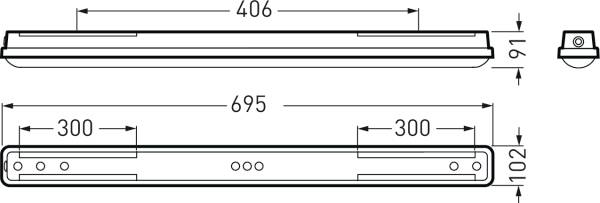

(L x W x H) 695 x 102 x 91 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2747494 Trilux OleveonF 6 L LED wet room light LED (monochrome) Built-in LED 48 W Neutral white Grey
User & Safety Instructions
User & Safety Instructions 2747494 Trilux OleveonF 6 L LED wet room light LED (monochrome) Built-in LED 48 W Neutral white Grey
Description
LED wet room mounted light IP 66. In emergency light design with single battery system, rated operating duration 3 hours. Advantageous in increased requirements for mechanical stability. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). With Clipless locking technology for safe, simple installation of diffuser cover or light box after connection. For ceiling and wall as well as suspended mounting. Ceiling mounting via enclosed stainless steel mounting bracket. Hanging mounting with optional accessories is possible. Cover tray made from opal, translucent PC with inner prism structure. With lambertian light intensity distribution. Glare rating according to UGR classification (EN 12464-1) less than 25. Rated light current 2000 lm, rated power 20.00 W, light output 100 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra greater than 80. Color location tolerance (initial Macadam) = 3 SDCM, lamp body made of PC. Light body color light gray (RAL 7035). With Clipless locking technology for safe, simple installation of diffuser cover or light box after connection. Dimensions (L x B) 695 x 102 mm, lamp height 91 mm. Weighs 2.2 kg Permissible ambient temperature (ta): 0 °C - +30 °C. Protection class (EN 61140): I, protection class (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK08, test temperature for glow wire test according to IEC 60695-2-11: 850°C. With electronic operating device, switchable. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking.
