Trilux OleveonF12 B LED wet room light LED (monochrome) Built-in LED 67 W Grey
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Trilux LED wet room light 840, DALI OleveonF12 B#7923551
- Power= 67 W
- Total luminous flux= 9000 lm
- Colour temperature= 4000 K
Technical specifications
- Product type
LED wet room light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
19 W
- Length
1257 mm
67 W
- Height
91 mm
- Width
102 mm
4000 K
2700 lm
- Total luminous flux
9000 lm
- PIR detection angle (horizontal)
80°
- Light features
Suitable for wall mounting
Ceiling mount option
Dimmable
IP66
- Factory colour
Grey
- Material
Plastic
- Dim

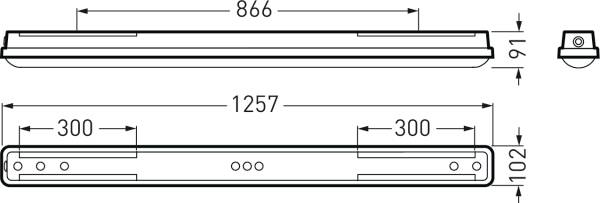

(L x W x H) 1257 x 102 x 91 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2748302 Trilux OleveonF12 B LED wet room light LED (monochrome) Built-in LED 67 W Grey
User & Safety Instructions
User & Safety Instructions 2748302 Trilux OleveonF12 B LED wet room light LED (monochrome) Built-in LED 67 W Grey
Description
LED wet room mounted light IP 66. Advantageous in increased requirements for mechanical stability. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). With Clipless locking technology for safe, simple installation of diffuser cover or light box after connection. For ceiling and wall as well as suspended mounting. Ceiling mounting via enclosed stainless steel mounting bracket. Hanging mounting with optional accessories is possible. PMMA diffuser with inner prism structure. With balanced wide beam of light intensity distribution. Glare rating according to UGR classification (EN 12464-1) less than 25. Rated light current 2700 lm, rated power 19.00 W, light output 142 lm/W. Light color neutral white, most similar color temperature (CCT) 4000 K, general color rendering index (CRI) Ra greater than 80. Color location tolerance (initial Macadam) = 3 SDCM, lamp body made of PC. Light body color light gray (RAL 7035). With Clipless locking technology for safe, simple installation of diffuser cover or light box after connection. Dimensions (L x B) 1257 x 102 mm, lamp height 91 mm. Weight: 2.4 kg Permissible ambient temperature (ta): -20 °C - +35 °C. Protection class (EN 61140): I, protection class (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650°C. With electronic operating device, digitally dimmable (DALI). Operating device in accordance with DALI 2 standard (EN 62386). The lamp can be equipped with the Monitoring ready (MOR) functionality upon request. The product meets the basic requirements of the applicable EU Directives and the German Product Safety Act and carries the CE marking. LiveLink SwarSens slave lamp with integrated Bluetooth module for networking with a LiveLink SwamrSens master light Group assignment is performed via DIP switches (64 groups) or Smartphone APP (255 groups).
