Trilux Publisca P3 #7644240 7644240 LED light attachment LED (monochrome) w/o 35 W Anthracite

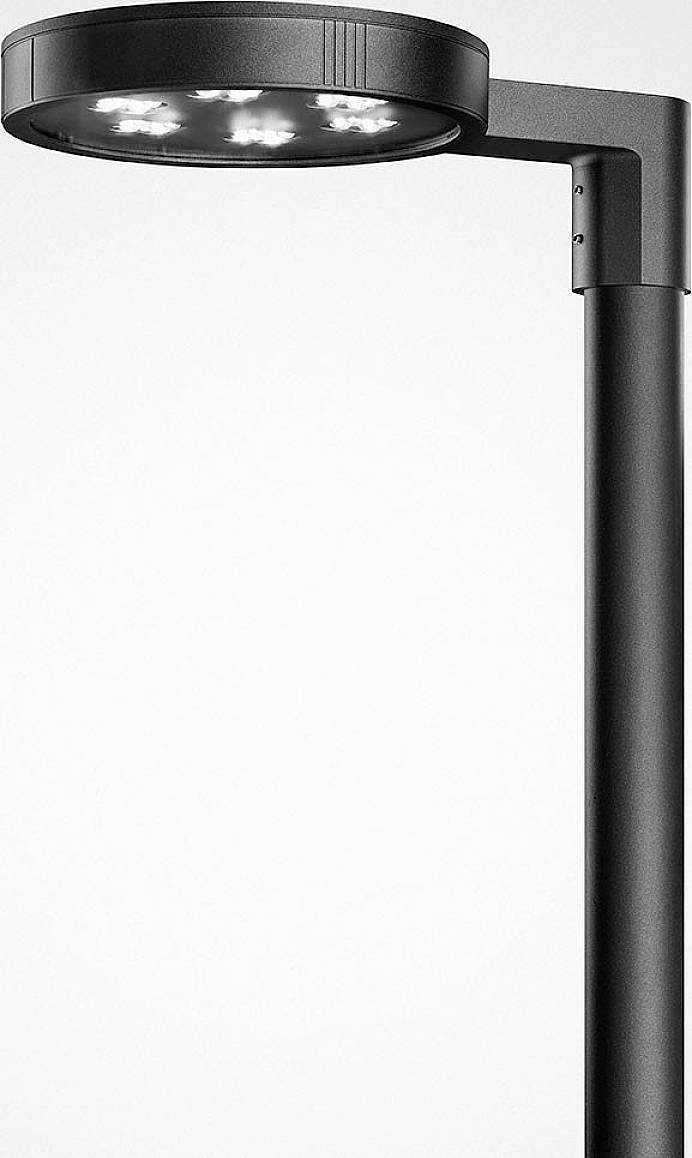

A modern, black street lamp with a round lampshade illuminates from above.

A modern, black street lamp with a round lampshade illuminates from above.

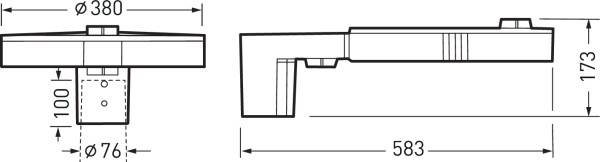

Technical drawing of an L-shaped component with the following dimensions: height 173, length 583, upper width 380, lower width 76.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: LED light attachment

Operating voltage: 220 V
240 V

No. of bulbs: 1

Bulb type: LED (monochrome)

: w/o

: 35 W

: 4000 K

Colour: White

Total luminous flux: 4200 lm

Light features: Dimmable

Protection class: II

: IP66

Factory colour: Anthracite

Material: Aluminium

Dim: (Ø x H) 380 mm x 175 mm

: n.rel.

Colour rendering index: 70-79

Colour temperature range: 4000 K

Height: 175 mm

Length: 585 mm

(Ø): 380 mm

Light bulb included: Yes

Feed length: 6 m

UKCA: not relevant
