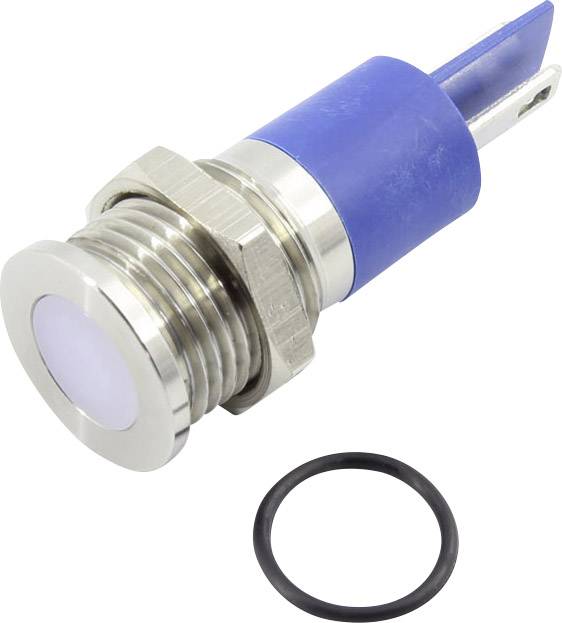

TRU COMPONENTS 1605988 LED indicator light White 24 V DC/AC 350 mcd
Product type
LED indicator light
Operating voltage
24 V DC/AC
Operating current
15 mA
Recess diameter
12 mm
Light intensity I(V)
350 mcd
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 7.49 / piece)
€ 7.49
incl. VAT
14-day return policy included
Highlights & Details
LED indicator
Our service for you
Technical specifications
- Product type
LED indicator light
- Factory colour
White
- Operating voltage
24 V DC/AC
- Operating current
15 mA
- Recess diameter
12 mm
- Mounting depth
39.2 mm
- Head Ø
13.5 mm
- Head height
1.5 mm
- Front panel thickness
6 mm
- Case colour
Stainless steel
- Mounting type
Screw and union
- Light intensity I(V)
350 mcd
- LED features
Built-in reflector
- Connection
Soldering
- Dim
(Ø x L) 13.5 mm x 34.7 mm
- Length
34.7 mm
- (Ø)
13.5 mm
40000 h
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1605988 TRU COMPONENTS 1605988 LED indicator light White 24 V DC/AC 350 mcd
User & Safety Instructions
User & Safety Instructions 1605988 TRU COMPONENTS 1605988 LED indicator light White 24 V DC/AC 350 mcd
