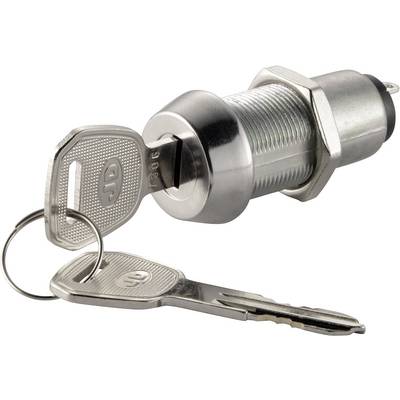

TRU COMPONENTS 750662 NO.8212 Key switch 30 V 3 A 1 x Off/On 1 x 90 ° 1 pc(s)
EAN:
Part number:
Item no:
Product type
Key switch
Functions
latch
Switch position
1 x Off/On
Switch postions
2
Switching voltage
30 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.76
5
6% = € 0.41
€ 6.35
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 6.76 / piece)
€ 6.76
plus VAT.
14-day return policy included
Highlights & Details
Key switch
Our service for you
Technical specifications
- Aperture dia. 24 mm
- Mounting depth including connecting lugs 42 mm
- Product type
Key switch
- Casing/button colour
Silver
- Functions
latch
- Switching angle
1 x 90 °
- Contact type
1 maker
- Switch position
1 x Off/On
- Key removal position
Off/On
- Switch postions
2
- Material
Metal
- Connection
Solder pins
- Switching voltage
30 V
- Switching current (max.)
3 A
- Length
51.6 mm
- Recess diameter
19 mm
- Type
NO.8212
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1570590 TRU COMPONENTS 750662 NO.8212 Key switch 30 V 3 A 1 x Off/On 1 x 90 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1570590 TRU COMPONENTS 750662 NO.8212 Key switch 30 V 3 A 1 x Off/On 1 x 90 ° 1 pc(s)
Description
For low voltages. Key removable in both switch positions.
Scope of delivery
- 2 keys per key switch
Hints
The key number is usually each delivery is different. A choice after key number is not possible.
