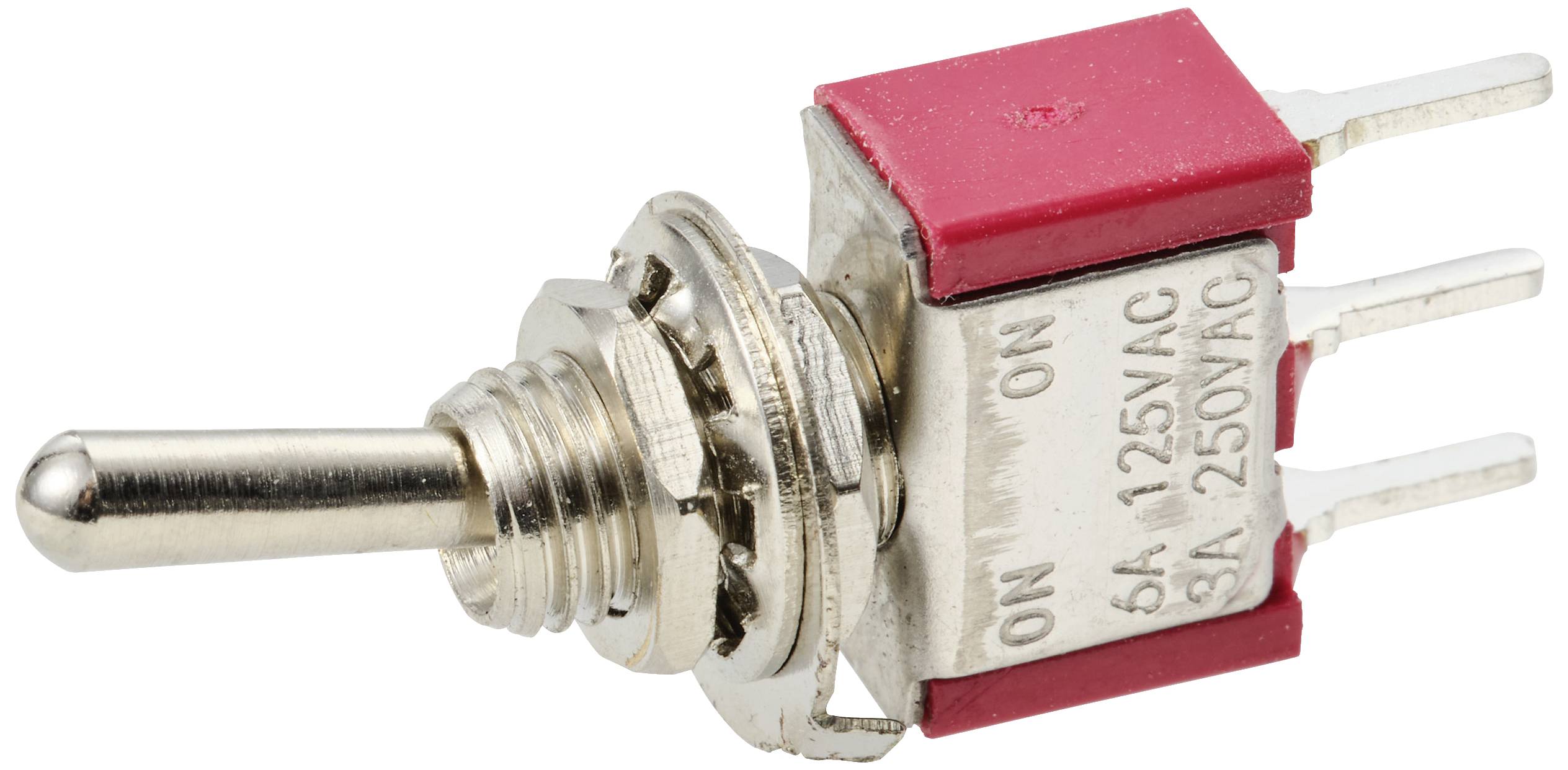

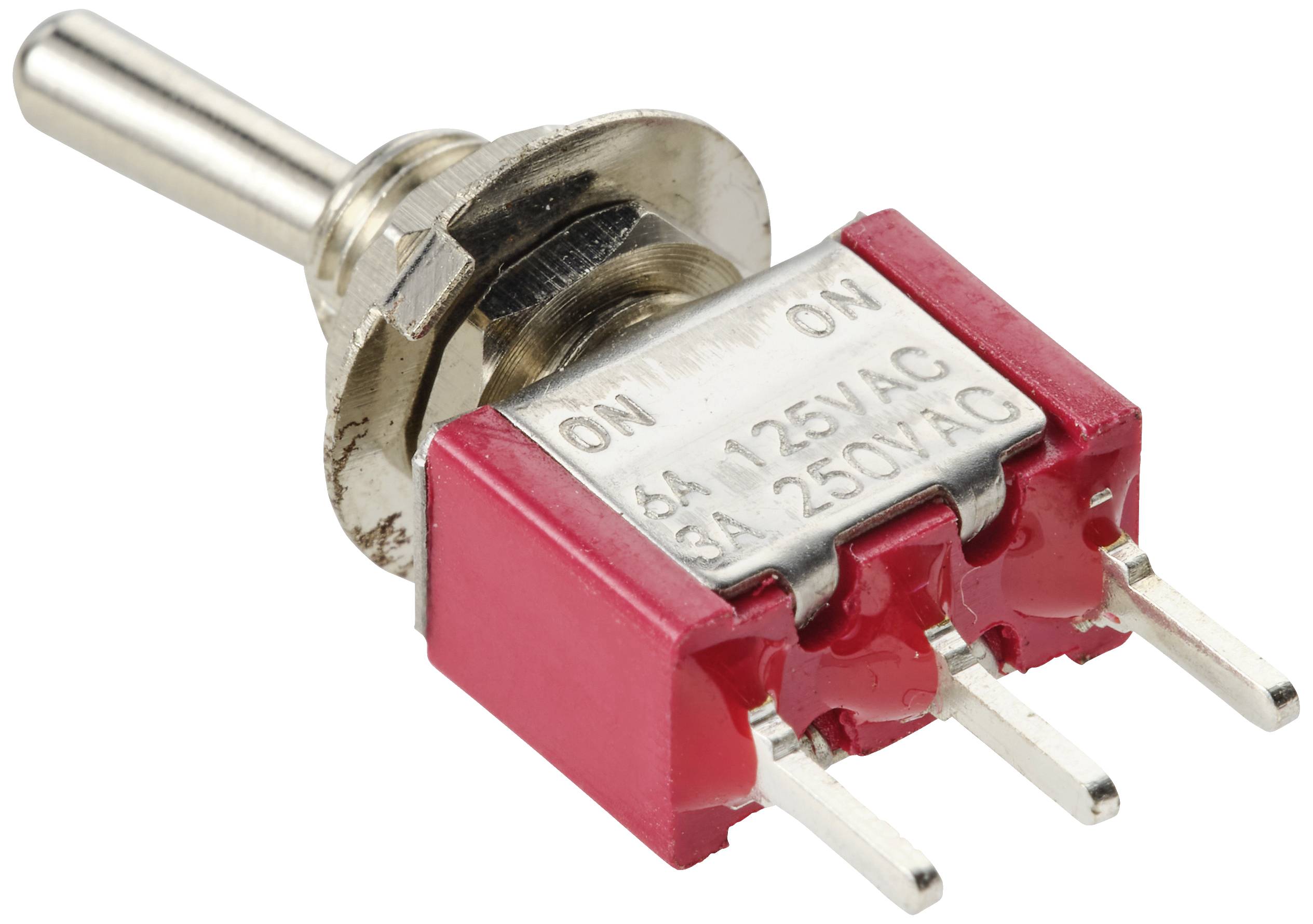

TRU COMPONENTS TC-11546992 Toggle switch 125 V AC, 250 V AC 3 A 1 x On/On latch 1 pc(s)
EAN:
Part number:
Item no:
Switch/button features
Steel lever
Casing/button colour
Metal
Functions
latch
Lighting type
None
Switch position
1 x On/On
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.26
10
8% = € 0.10
€ 1.16
25
11% = € 0.14
€ 1.12
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.26 / piece)
€
Highlights & Details
Toggle switch SPDT 3P, On/On
- Rating: 6 A/125 VAC, 3 A/250 VAC
- Switch function: On/On
Our service for you
Technical specifications
- Switch/button features
Steel lever
- Casing/button colour
Metal
- Functions
latch
- Lighting type
None
- Switch position
1 x On/On
- Connection
Solder pins
- Switching voltage
125 V AC
250 V AC
- Switching current (max.)
3 A
- Min. temperature
-25 °C
- Max. temperature
55 °C
- Length
12.8 mm
- Width
6.8 mm
- Height
35 mm
- Recess diameter
6 mm
- Dim
(L x W x H) 12.8 x 6.8 x 35 mm
- RoHS-compliant
Yes
- Type
TC-11546992
- Plastic free packaging
Plastic-free packaging
- Product type
Toggle switch
Documents & Downloads
Datasheet
Datasheet 2886748 TRU COMPONENTS TC-11546992 Toggle switch 125 V AC, 250 V AC 3 A 1 x On/On latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2886748 TRU COMPONENTS TC-11546992 Toggle switch 125 V AC, 250 V AC 3 A 1 x On/On latch 1 pc(s)
Description
Features
- Terminal: PC terminal
- Electric Life: 10,000 cycles
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
