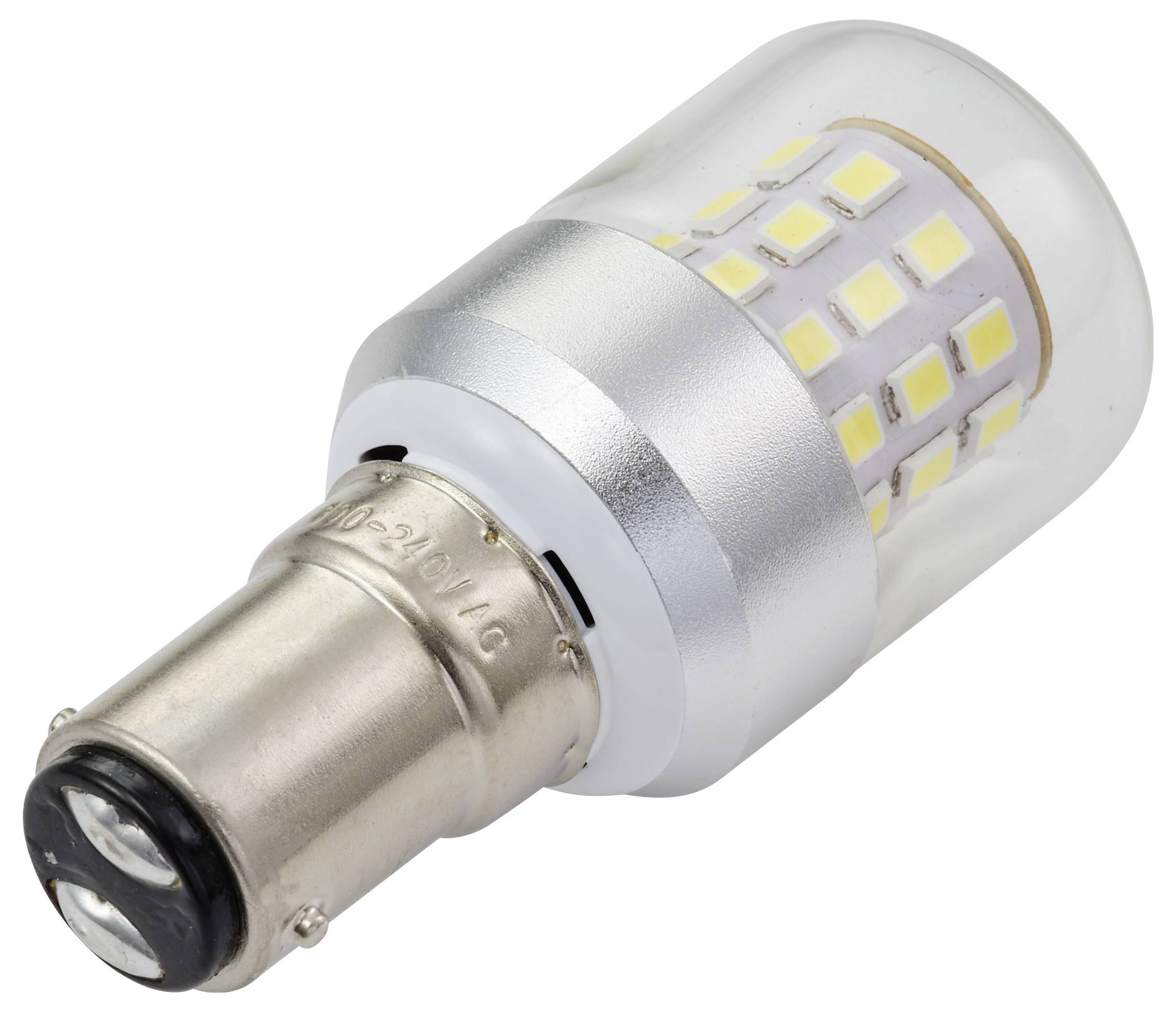

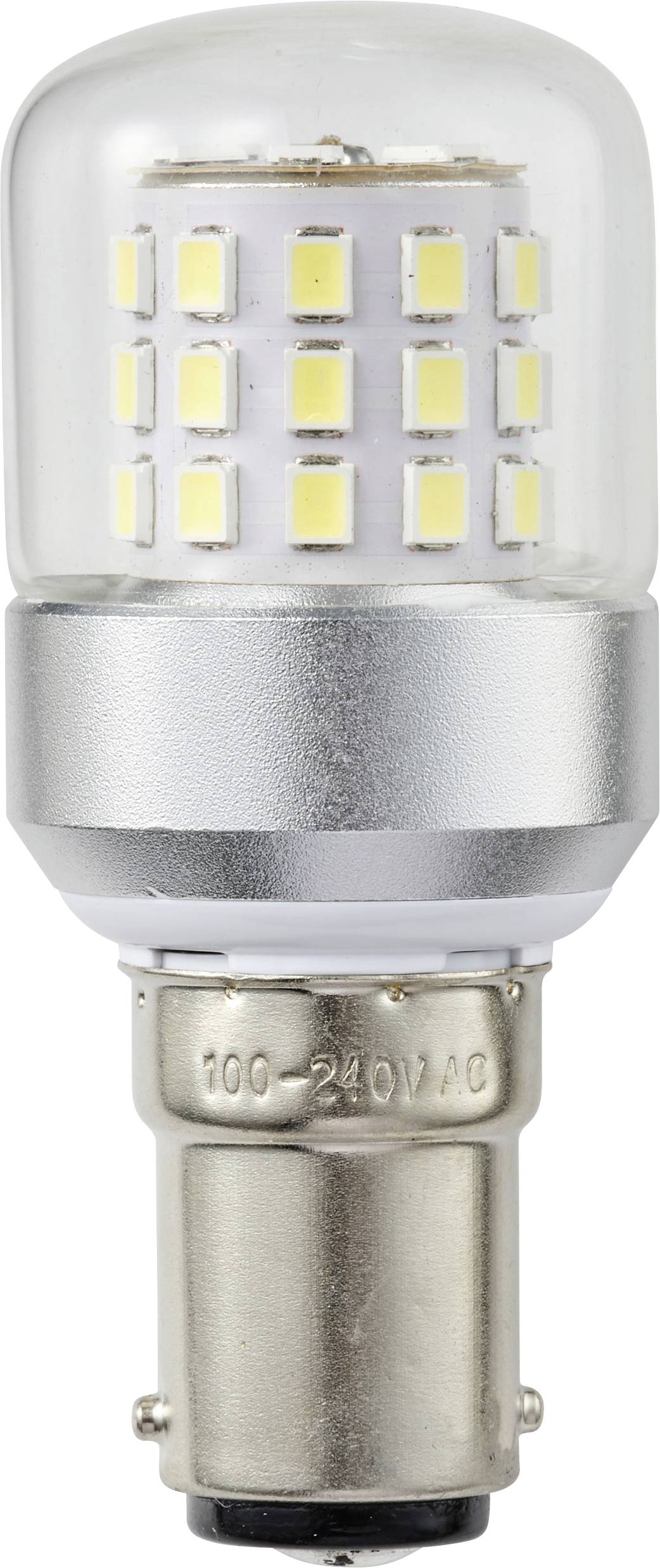

TRU COMPONENTS TC-14124708 LED indicator light White Cylinder BA15d 100 V AC, 240 V AC 580 lm
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
100 V AC
240 V AC
Base
BA15d
Operating current
39 mA
Factory colour
White
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Highlights & Details
LED signal lamp BA15d, white, 100-240 V AC/DC, 5 W
- Operating voltage: 100–240 V AC, 50/60 Hz
- Power: 5 W
- Light colour: White (440–508 nm)
- Base: BA15d

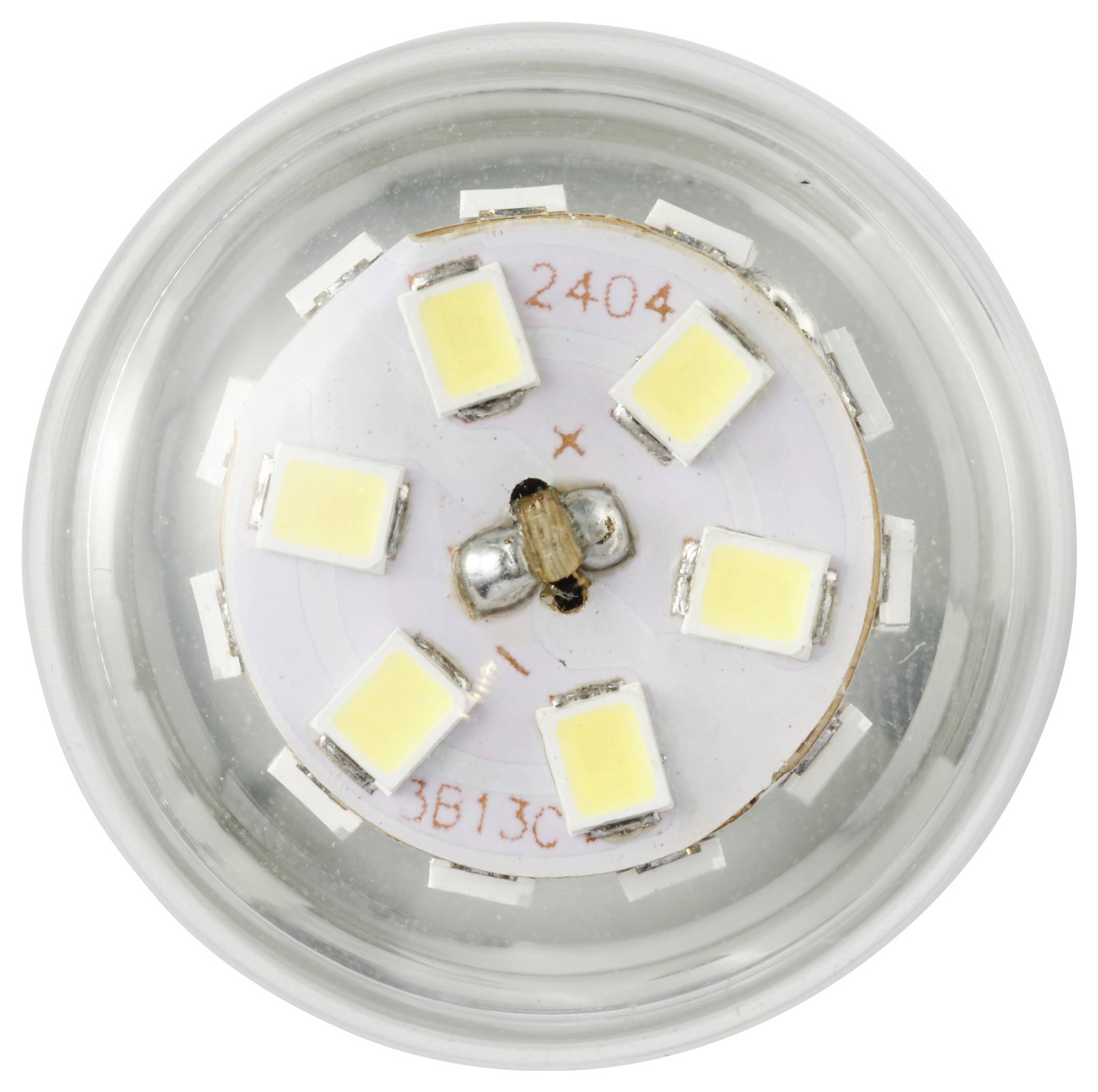

- 39 LEDs
Our service for you
Technical specifications
- Product type
LED indicator light
- Factory colour
White
- Operating voltage
100 V AC
240 V AC
- Operating voltage
100 - 240 V AC
- Min. operating voltage
100 V AC
- Max. operating voltage
240 V AC
BA15d
- Operating current
39 mA
- Mounting depth
16 mm
- Head Ø
27 mm
- Head height
22 mm
- Shape
Cylinder
- Case colour
Transparent
- Material
Glass
- Colour temperature
6,000 k
- Radiation angle
360°

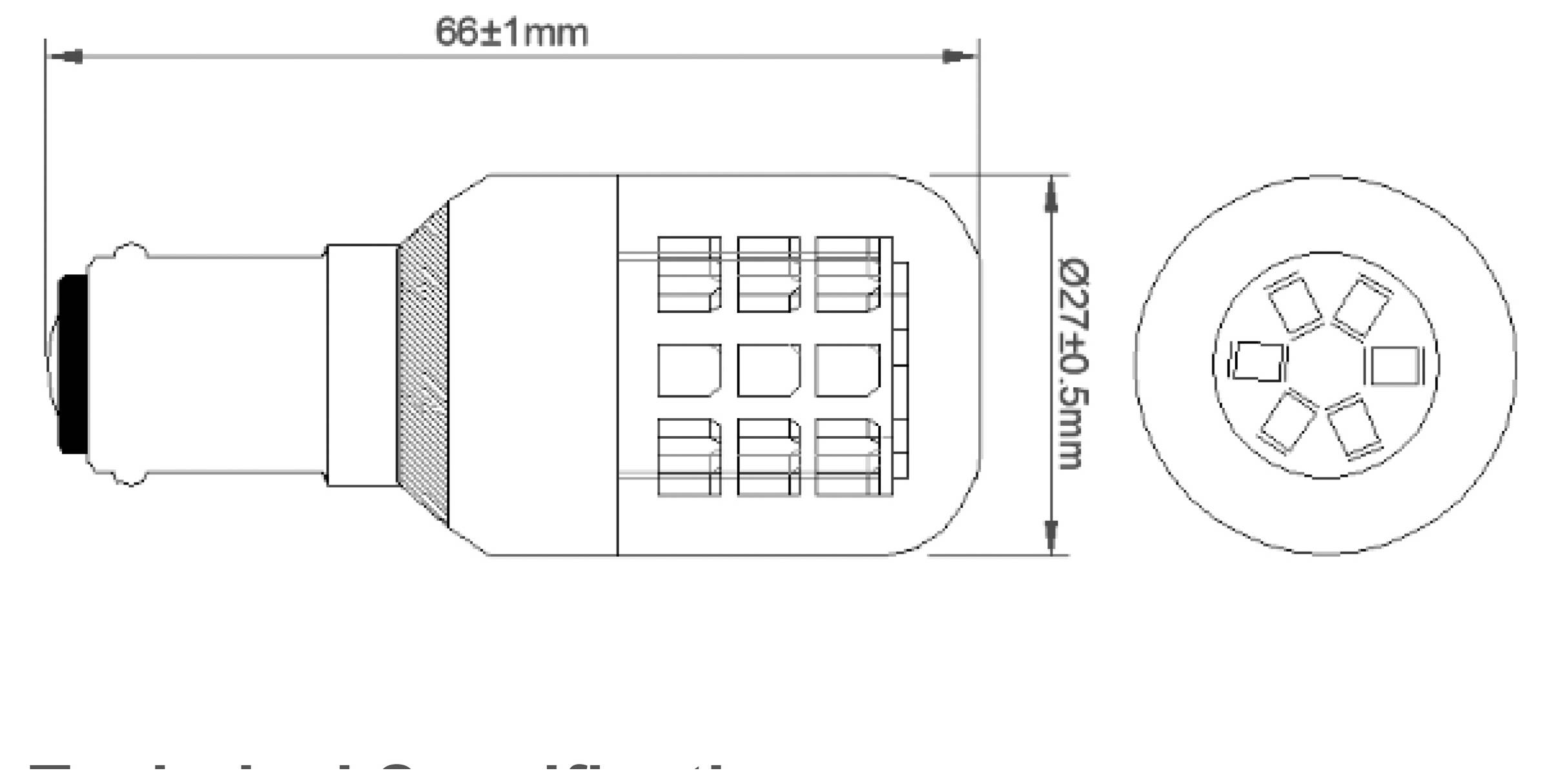

- Dim
(Ø x H) 27 mm x 66 mm
- Height
66 mm
- (Ø)
27 mm
30,000 h
- Min. temperature
-30 °C
- Max. temperature
60 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
5 W
- Luminous flux (Φ)
580 lm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3531177 TRU COMPONENTS TC-14124708 LED indicator light White Cylinder BA15d 100 V AC, 240 V AC 580 lm
User & Safety Instructions
User & Safety Instructions 3531177 TRU COMPONENTS TC-14124708 LED indicator light White Cylinder BA15d 100 V AC, 240 V AC 580 lm
Description
A notice:
Lamps only for special applications, e.g. in machines, in signal lights or for scale lighting. Not intended for household room lighting.
Lamps only for special applications, e.g. in machines, in signal lights or for scale lighting. Not intended for household room lighting.
Features
- Luminous flux (Φ): 580 lm
- Radiation angle 360 °
- Service life: approx. 30,000 h
