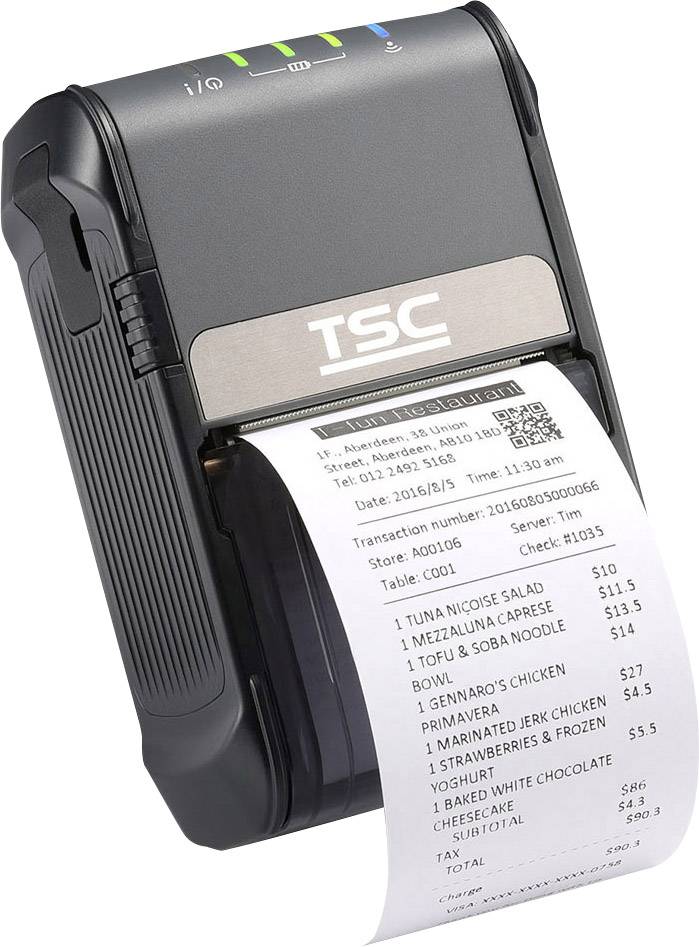

TSC ALPHA-2R Receipt printer Direct thermal 203 x 203 dpi Black USB, Bluetooth, Cordless
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
TSC ALPHA-2R Receipt printer Direct thermal 203 x 203 dpi Black USB, Bluetooth, Cordless Roll ticket width: 58 mm
- Ultra-compact mobile printer for voucher printing for outdoor use
- Powerful rechargeable battery for up to 17 hours operation
- Supports numerous emulations: ESC-POS, CPCL and zpl
- Minimizes the change intervals thanks to extra-large roller mounting
- USB and Bluetooth (MFi)
Technical specifications
- Product type
Receipt printer
- Type
ALPHA-2R
- Printing technology
Direct thermal
- Functions
Printer
- Type
B/W
- Print resolution
203 x 203 dpi
- Print speed (black/white)
102 mm/s
- Features
Battery-powered OTG printing
- Interfaces
USB
Bluetooth
- Power supply (LOV)
rechargeable
- Roll ticket width
58 mm
- Roll ticket diameter
50 mm
- Roll ticket hole
12 mm
- Factory colour
Black
- Width
89.3 mm
- Height
134.5 mm
- Depth
56.5 mm
- Dim
(W x H x D) 89.3 x 134.5 x 56.5 mm
- Weight
350 g
- Network
No
- Wi-Fi
No
- Suitable for
Receipt printing
Label printing
- Eco badge reference
ENERGY STAR
Documents & Downloads
Datasheet
Datasheet 1609524 TSC ALPHA-2R Receipt printer Direct thermal 203 x 203 dpi Black USB, Bluetooth, Cordless
User & Safety Instructions
User & Safety Instructions 1609524 TSC ALPHA-2R Receipt printer Direct thermal 203 x 203 dpi Black USB, Bluetooth, Cordless
Description
The mobile printer TSC Alpha-2R produced with a print speed of up to 102 mm per second at the push of a button receipts, receipts and tickets with 58 mm width. Thanks to its compact dimensions, it offers all the benefits, as well as the TSC usual reliability and durability. The Alpha-2R has an extremely stable casing made of high-quality plastics, is in accordance with IP42 certified - with the optional protective cover even in accordance with IP54 and withstands multiple falls from a height of up to 1.5 m (2 m with IP54 protective cover). This makes it a reliable companion in outdoor use, even in adverse conditions.
The convenient direct thermal printer with only 350 grams is a light-weight in its class. Thanks to its strong 1.620-Mah-he holds up to 17 hours, so even two layers without interruption on the piece. The Alpha-2R is extremely variable in use and is fully on communication and application diversity: it has numerous interfaces such as USB, RS232, Bluetooth (MFI), as well as WLAN and supports all common emulations as ESC POS, as well as ZPL CPCL.
This text is machine translated.
The convenient direct thermal printer with only 350 grams is a light-weight in its class. Thanks to its strong 1.620-Mah-he holds up to 17 hours, so even two layers without interruption on the piece. The Alpha-2R is extremely variable in use and is fully on communication and application diversity: it has numerous interfaces such as USB, RS232, Bluetooth (MFI), as well as WLAN and supports all common emulations as ESC POS, as well as ZPL CPCL.
This text is machine translated.
Scope of delivery
- Alpha-2R, power supply, battery, belt clip and instructions.
