Turck Sensor Inductive NI10-G18SK-AN6X 46423 M18 x 1 non-shielded NPN NO (Ø x L) 18 mm x 77 mm
Product type
Sensor
Max. operating voltage
30 V
Switching distance (max.)
10 mm
Outputs
NPN NO
Model
Inductive
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NI10-G18SK-AN6X
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Switching distance (max.)
10 mm
- Outputs
NPN NO
- Enclosure material
Metal
- Model
Inductive
- Material properties
chrome plated
- Installation type
non-shielded
- Size
M18 x 1
- Connector
Clip
- Length
77 mm
- (Ø)
18 mm
- Dim

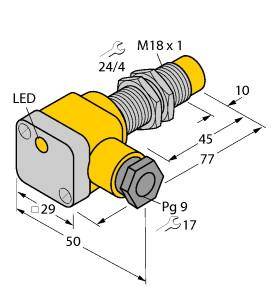

(Ø x L) 18 mm x 77 mm
- Content
1 pc(s)
- Switching frequency
500 Hz
DC
Metal
FALSE
Chromium-plated
500 Hz
10 mm
Clamp
NPN
Normally open contact
Cylinder, screw-thread
Not flat
10-30 V
Metallic Target
FALSE
18 mm
77 mm
- UKCA
yes
