Turck Sensor Inductive NI35-CP40-FZ3X2 13403 non-shielded Two-wire (L x W x H) 114 x 40 x 40 mm
Product type
Sensor
Max. operating voltage
250 V
Switching distance (max.)
35 mm
Outputs
Two-wire
Model
Inductive
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NI35-CP40-FZ3X2
- Min. operating voltage
20 V
- Max. operating voltage
250 V
- Operating voltage
20 - 250 V
- Switching distance (max.)
35 mm
- Outputs
Two-wire
- Enclosure material
Plastic
- Model
Inductive
- Installation type
non-shielded
- Connector
Clip
- Features
LED indicator

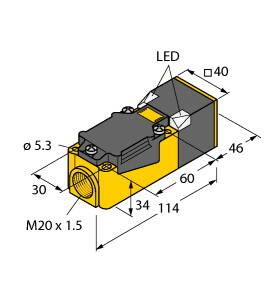

- Length
114 mm
- Width
40 mm
- Height
40 mm
- Dim
(L x W x H) 114 x 40 x 40 mm
- Content
1 pc(s)
- Switching frequency
20 Hz
AC
Plastic
FALSE
Other
20 Hz
35 mm
Clamp
2-wire
Programmable/configurable
Cuboid
Not flat
20-250 V
Metallic Target
40 mm
FALSE
40 mm
114 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2832724 Turck Sensor Inductive NI35-CP40-FZ3X2 13403 non-shielded Two-wire (L x W x H) 114 x 40 x 40 mm
User & Safety Instructions
User & Safety Instructions 2832724 Turck Sensor Inductive NI35-CP40-FZ3X2 13403 non-shielded Two-wire (L x W x H) 114 x 40 x 40 mm
Description
Inductive sensor, rated switching distance 35 mm, non-flush, square, height 40 mm, Active surface can be positioned in 9 directions, plastic, PBT-GF30-V0, corner LEDs with high Leuchtkraft, optimum view of operating voltage display and switching status display in each installation position, AC 2 wire, 20...250 VAC, DC 2 wire, 10...300 VDC, Can be programmed for connection (NC/NO), terminal space
