Turck Sensor Inductive shielded NAMUR BI5-M18-Y1X-H1141

Technical drawing of a cylindrical plug with labels: Thread 'M18 x 1' at the top, 'M12 x 1' at the bottom, dimensions 36, 52 and 9 mm. LEDs marked with '24/4 LED'.

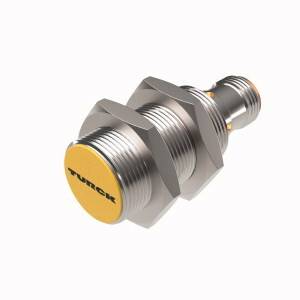

A cylindrical, metallic sensor with a yellow head and 'TURCK' lettering. Used in industrial applications for object detection.

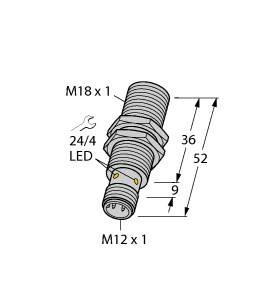

A technical diagram of a cylindrical threaded plug. Labels: 'M18 x 1', 'M12 x 1', dimensions 36, 52, 9 mm; 24/4 LED.
1/3
Product type
Sensor
Outputs
NAMUR
Switching distance (max.)
5 mm
Model
Inductive
Connector
Terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Sensor

Type

BI5-M18-Y1X-H1141

Outputs

NAMUR

Switching distance (max.)

5 mm

Switching frequency

1000 Hz

Model

Inductive

Connector

Terminal

Installation type

shielded

Enclosure material

Metal

Length

52 mm

(Ø)

18 mm

Dim

(Ø x L) 18 mm x 52 mm

DC

Metal

Chromium-plated

1000 Hz

5 mm

Plug-in connection

NAMUR

ATEX gas-ex-protection, Cat. 1G

ATEX dust-ex-protection, Cat. 1D

Cylinder, screw-thread

Concise

Metallic Target

FALSE

18 mm

52 mm

Level c

2

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2832318 Turck Sensor Inductive shielded NAMUR BI5-M18-Y1X-H1141

User & Safety Instructions

User & Safety Instructions 2832318 Turck Sensor Inductive shielded NAMUR BI5-M18-Y1X-H1141
