Turck Sensor Inductive shielded PNP NO BI2-Q5,5-AP6X-0,3-PSG3M
Product type
Sensor
Max. operating voltage
30 V
Outputs
PNP NO
Switching distance (max.)
2 mm
Model
Inductive
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
BI2-Q5,5-AP6X-0,3-PSG3M
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Outputs
PNP NO
- Cable length
0.3 m
- Switching distance (max.)
2 mm
- Switching frequency
2000 Hz
- Model
Inductive
- Connector
Terminal
- Installation type
shielded
- Enclosure material
Plastic

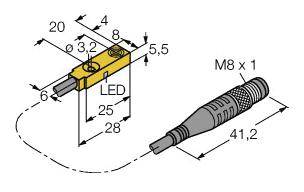

- Length
28 mm
- Width
8 mm
- Height
5.50 mm
- Dim
(L x W x H) 28 x 8 x 5.50 mm
DC
Plastic
FALSE
2000 Hz
2 mm
Plug-in connection
PNP
Normally open contact
Cuboid
Concise
10-30 V
Metallic Target
8 mm
FALSE
5.5 mm
28 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2832056 Turck Sensor Inductive shielded PNP NO BI2-Q5,5-AP6X-0,3-PSG3M
User & Safety Instructions
User & Safety Instructions 2832056 Turck Sensor Inductive shielded PNP NO BI2-Q5,5-AP6X-0,3-PSG3M
Description
Inductive sensor, rated switching distance 2 mm, cable length 0.3 m, flush, square, Height 5.5 mm, active surface above, plastic, PP, DC 3-wire, 10...30 VDC, NO contact, PNP output, connector, M8 x 1
