Turck Sensor Inductive shielded PNP NO BI5U-EM18-AP6X-H1141

Technical drawing of a connector with M18x1 and M12x1 threads, LED indicator '24/4', dimensions ranging from 36 mm to 52 mm.

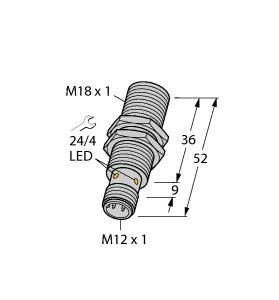

Technical drawing of a cylindrical plug with M18 x 1 and M12 x 1 threads, LED indicators, and dimensional specifications: 36 mm, 9 mm, 52 mm.
1/2
Product type
Sensor
Max. operating voltage
30 V
Outputs
PNP NO
Switching distance (max.)
5 mm
Model
Inductive
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Sensor

Type

BI5U-EM18-AP6X-H1141

Min. operating voltage

10 V

Max. operating voltage

30 V

Operating voltage

10 - 30 V

Outputs

PNP NO

Switching distance (max.)

5 mm

Switching frequency

2500 Hz

Model

Inductive

Connector

Terminal

Installation type

shielded

Enclosure material

Metal

Length

52 mm

(Ø)

18 mm

Dim

(Ø x L) 18 mm x 52 mm

DC

Metal

FALSE

2500 Hz

5 mm

Plug-in connection

PNP

Normally open contact

Cylinder, screw-thread

Concise

10-30 V

Metallic Target

FALSE

18 mm

52 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2832346 Turck Sensor Inductive shielded PNP NO BI5U-EM18-AP6X-H1141

User & Safety Instructions

User & Safety Instructions 2832346 Turck Sensor Inductive shielded PNP NO BI5U-EM18-AP6X-H1141
