Turck TBEN-S1-8DXP 6814023 Sensor & actuator box (active) 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Sensor & actuator box (active)
No. of signal spaces
8
Type
TBEN-S1-8DXP
Signal type
PNP
Datasheet (PDF)
Technical specifications
- Packaging type
Single
- Product type
Sensor & actuator box (active)
- No. of signal spaces
8
- Type
TBEN-S1-8DXP
- Signal type
PNP
- Connection
M8 socket

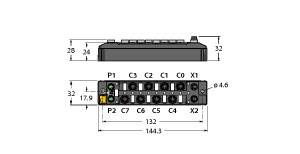

- Width
144 mm
- Length
32 mm
IP65
- Max. power rating per slot
2 A
- Connector type (distribution boxes)
M8 receptacle
- Total no. of pins
4
- Weight
0.215 kg
- Manufacturer part #
6814023
- Content
1 pc(s)
- Number of pins
4
- Height
32 mm
- Features
EX series compatibility
- Power rating per I/O
2 A
144 mm
32 mm
32 mm
8
8
IP65
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2836502 Turck TBEN-S1-8DXP 6814023 Sensor & actuator box (active) 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 2836502 Turck TBEN-S1-8DXP 6814023 Sensor & actuator box (active) 1 pc(s) Single
Description
Compact multi-protocol I/O module for Ethernet, 8 universal digital channels as pnp inputs or outputs 2 A, PROFINET device, Ethernet/IP device or Modbus TCP slave, integrated Ethernet switch, supports 10 Mbps / 100 Mbps, 2x M8, 4-pin, Ethernet fieldbus connection, glass fiber reinforced housing, Shock and vibration tested, fully cast module electronics, protection class IP65/IP67/IP69K, 4-pin M8 connector for power supply, electrically insulated voltage groups, ATEX zone 2/22, input diagnostics in groups, max. 2 A per output, output diagnostics per channel, one freely selectable digital channel per slot, ARGEE programmable
