Ubiquiti Networks ER-8-XG LAN router 10 GBit/s
EAN:
Part number:
Item no:
Highlights & Details
UbiQuiti EdgeRouter Pro 8 8-port Router 2 SFP Router - WLAN
- Max. power consumption: 100W
- On-board flash memory: 8 MB NOR flash
- 4GB eMMC NAND Flash
Technical specifications
- Product type
LAN router
- Transfer rate
10 GBit/s
- 10/100 Mbps ports
1 x
- 10/100/1000 Mbps ports
1 x
- RS232 console ports
1 x
- Interfaces
SFP+
- Router features
Built-in Firewall
- Port
8 ports
- LAN transfer rate
10000 MBit/s
- Weight
6.84
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1880609 Ubiquiti Networks ER-8-XG LAN router 10 GBit/s
Description
Ubiquiti Networks ERPRO-8, EdgeRouter. Ethernet LAN data transfer rates: 10.100.1000 Mbit/s, cabling technology: 10/100/1000Base-T(X). Network standard: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Router protocol: BGP,OSPF,RIP-1, management protocols: Telnet, SSH, SNMP. Supported security algorithms: 802.1x RADIUS,SSH, Authentication Method: 802.1x RADIUS, NAT Functionality: IPsec PPTP L2TP. Product color: Black, form factor: 1U
This text is machine translated.
This text is machine translated.
Features

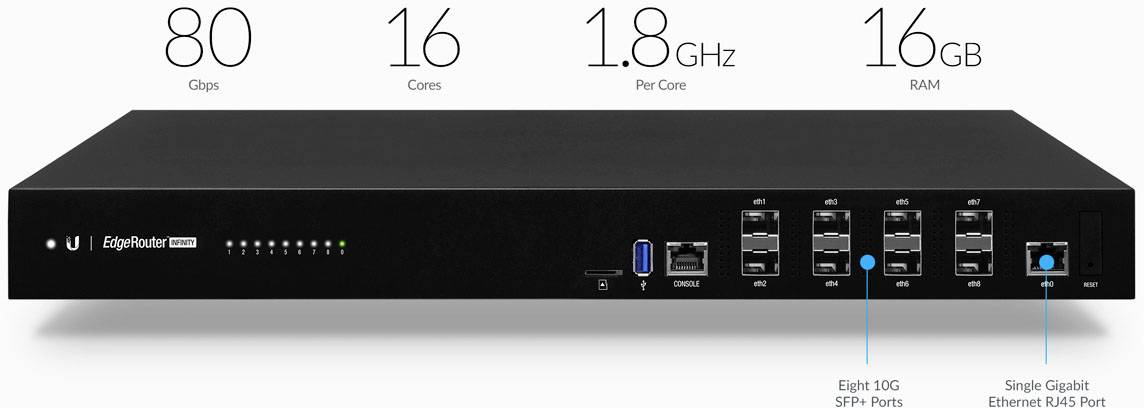

- Ubiquiti EdgeRouter Infinity, 8-port 10G SFP+ router
- Dimensions 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")
- Weight
- without mount: 4.950 kg (10.91 lb)
- with mount: 5.045 kg (11.12 lb)
- Features of the system: SGCC steel
- Power method: Hot-swappable AC/DC or DC/DC* power supply module
- Supported voltage range
- AC/DC power supply module: 100 to 240VAC, 24VDC output
- DC/DC power supply module: 38 to 54VDC, 24VDC output
- Button: Reset
- LEDs
- System status
- SFP+ data ports Link/activity
- RJ45 data port connection/activity
- Serial console connection: (1) Serial RJ45 connection
- Data ports: (8) SFP+ ports
- (1) RJ45 Gigabit Ethernet connection
- Layer 3 forwarding performance
- Packet size: 64 bytes: 18,000,000 pps
- Packet size: 15,14 bytes: 80 Gbps (line rate)
- Processor: MIPS64 16 core 1.8 GHz with
- Hardware acceleration for packet processing
- System memory: 16 GB DDR4 RAM
- Certifications CE, FCC, IC
- Rackmount Yes, 1U
- ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV, Contact: ± 24 kV
- Operating temperature -5 to 40° C (23 to 104° F)
- Operating humidity 5 - 95% non-condensing.
