Name: Ubiquiti Networks UA-G2 Transponder access system Wall 48 V IP55 Bluetooth support
Brand: Ubiquiti Networks
SKU: 3784707

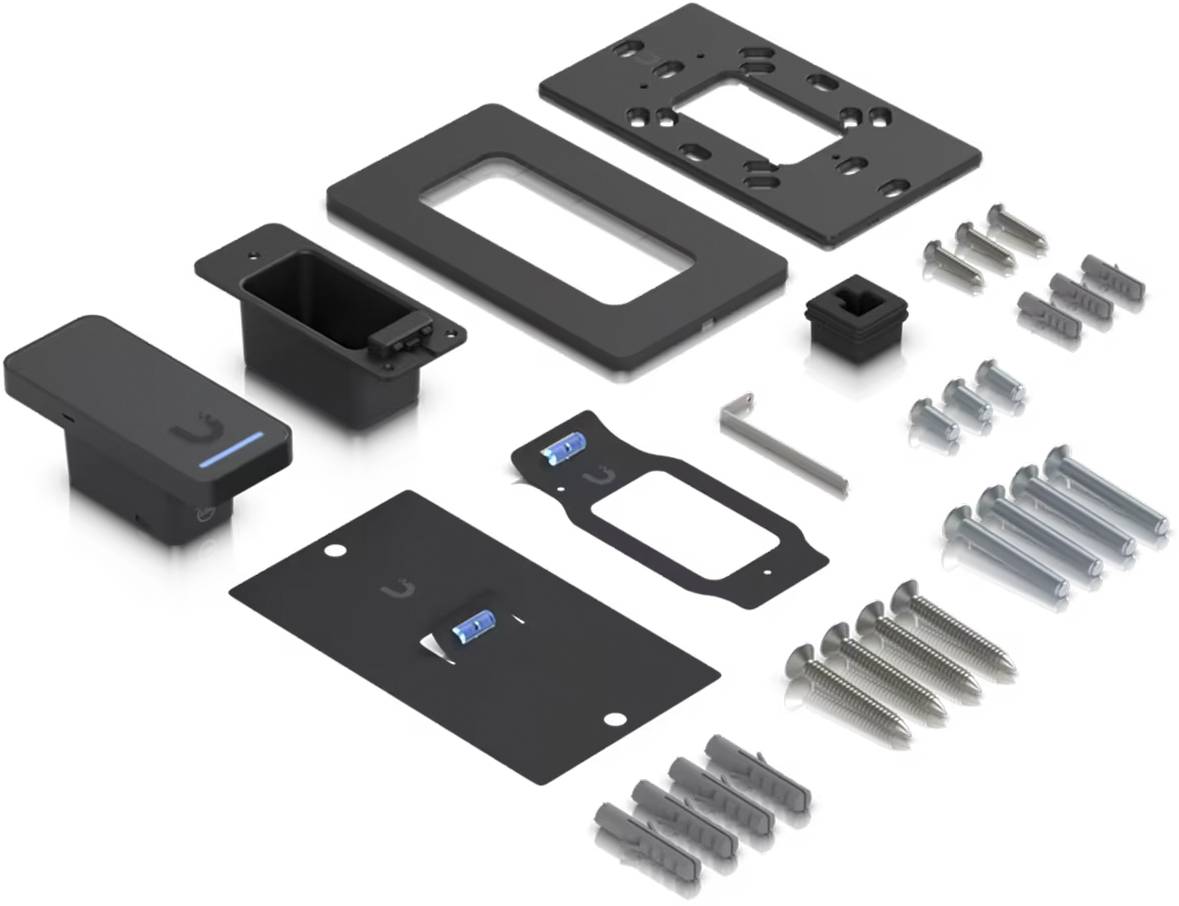

Exploded view of a black wall-mount hardware kit, showing brackets, cover plates, screws, anchors, and a mounting block arranged on a white background.

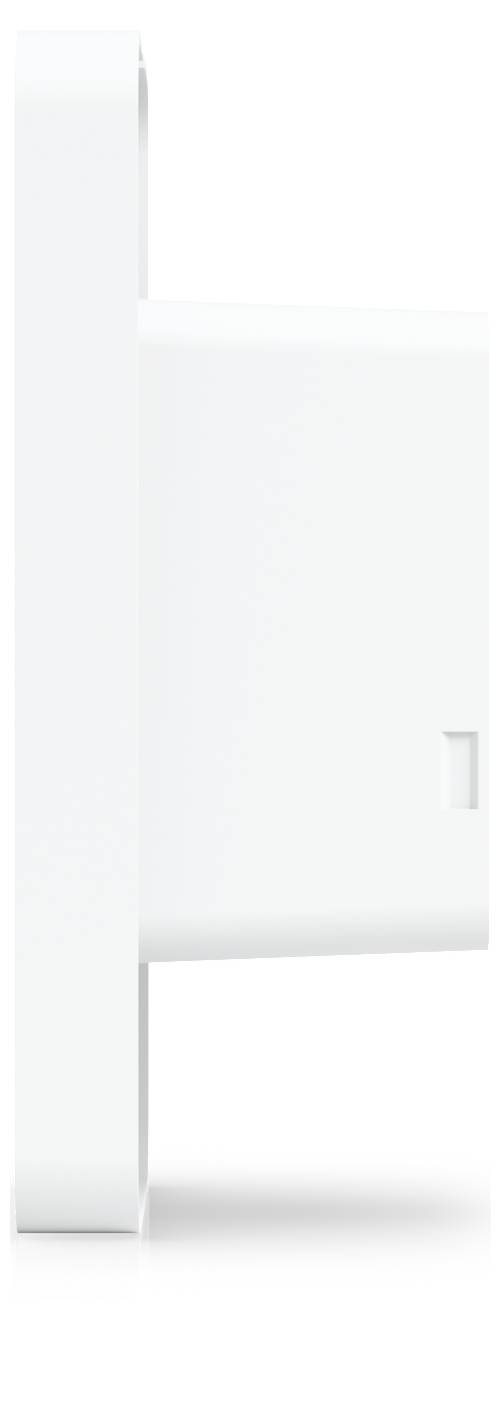

A plain white rectangular vertical panel or sign viewed from the side, with a recessed central section and subtle shadowing.

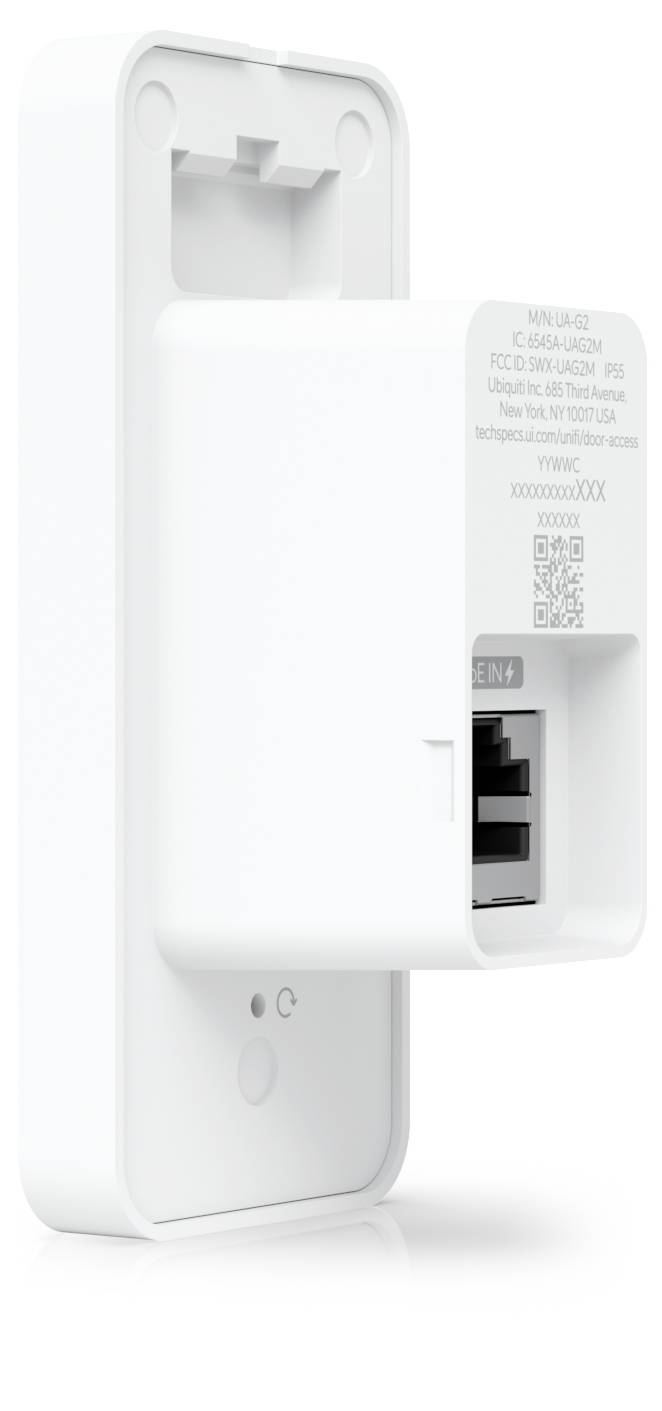

White wall-mounted network device with an open cover exposing a port and QR code, shown in a product-style close-up.

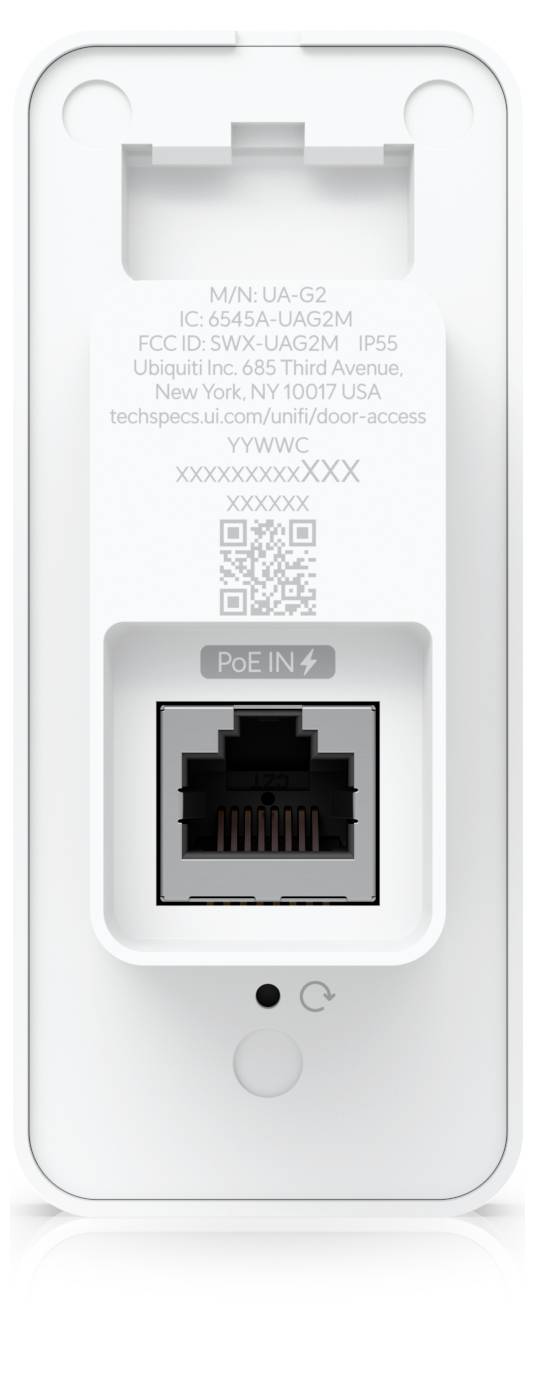

Rear view of a white UniFi wall-mounted access point with Ethernet port, reset button, QR code, and printed model and setup information.

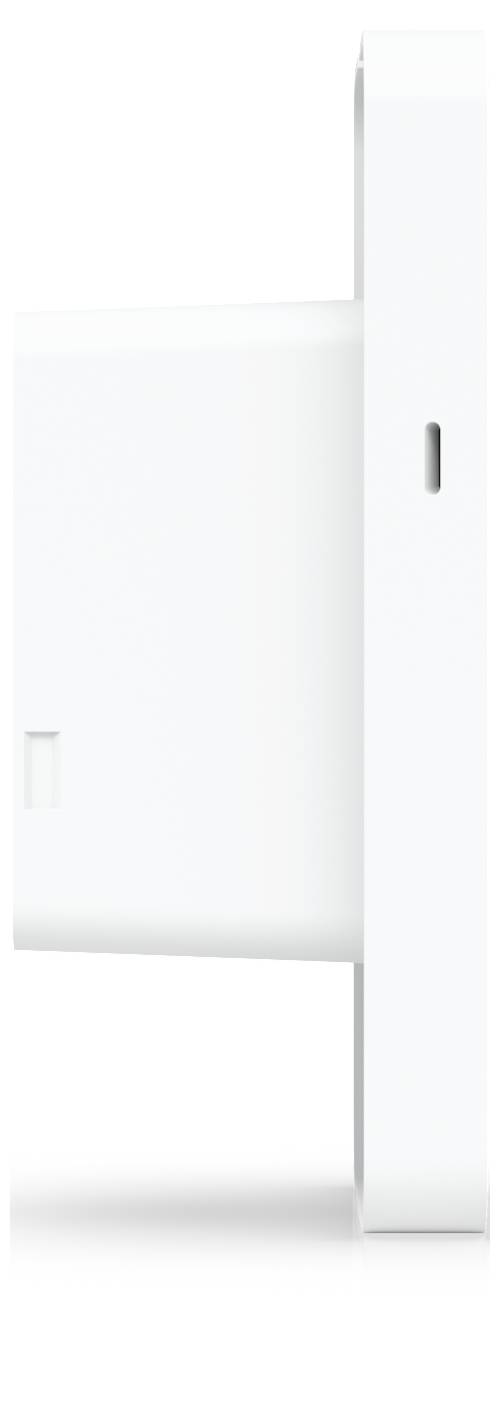

Minimalist white rectangular wall-mounted device or panel with a narrow vertical slot and small inset opening, shown on a plain white background.

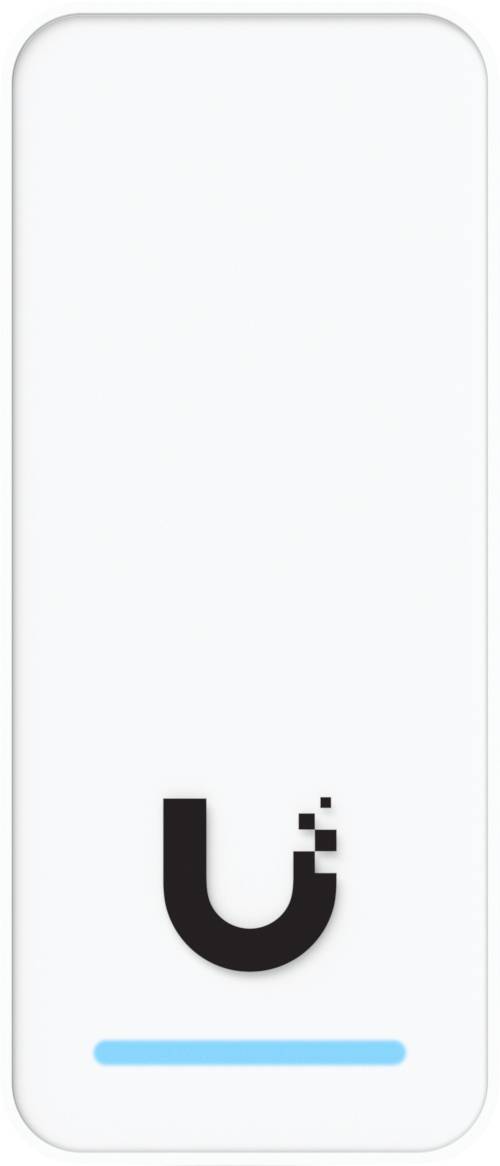

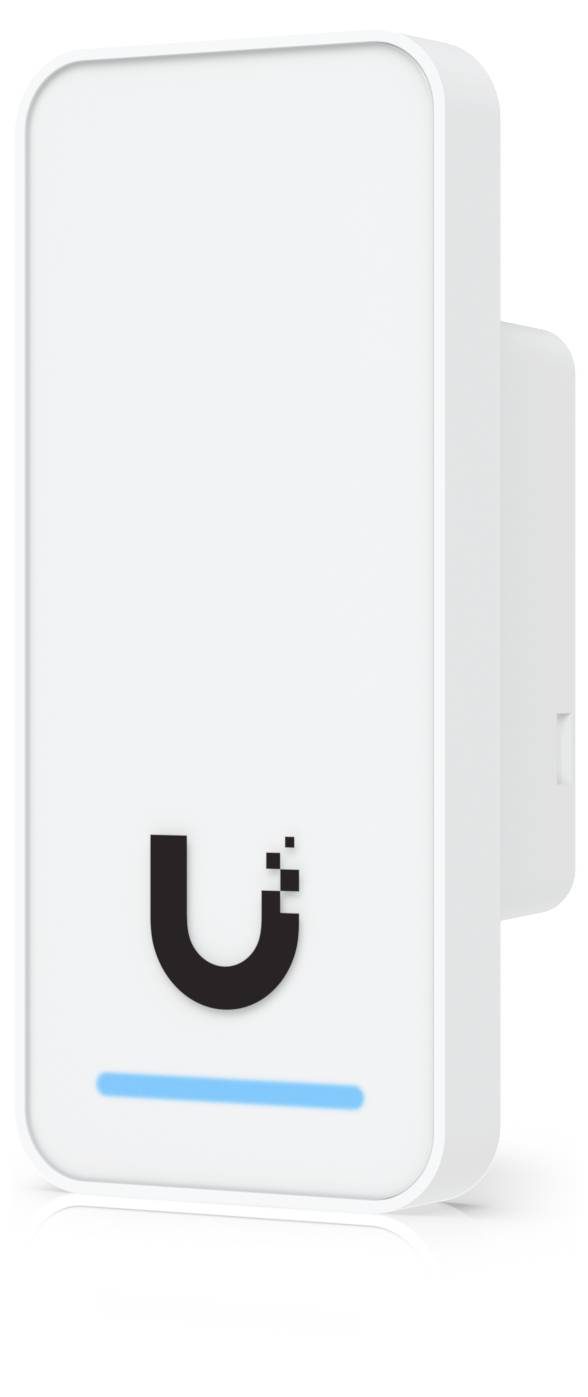

Minimal white wall-mounted device with a U-shaped symbol and blue indicator light, shown against a plain white panel with wooden side trim.

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti UISP G2 basic access control reader white

Base access control reader
Access chip/card reader
NFC (Bluetooth) Power over Ethernet (PoE)

Technical specifications

Contact-free working distance: 3 cm
Operating temperature -30 to 45°

Product type: Transponder access system

Operating voltage: 48 V

Current consumption: 5 W

Mounting type: Wall

Connections: 1 x 10/100 Mbit/s Ethernet RJ45 port
Further connections wirelessly via BLE 4.1 and NFC

: IP55

Weight: 82 g

Dim: (W x H x D) 40 x 93 x 36.5 mm

Features: Bluetooth support

Factory colour: White

Width: 40 mm

Height: 93 mm

Depth: 36.5 mm

Bluetooth: 4.1

Bluetooth: Yes

Material (details): Glass
Polycarbonate (PC)

Type: Base access control reader

NFC (Near field communication): Yes

10/100/1000 Mbps ports: 1 x

UKCA: yes

Access code reader: no

Access chip/card reader: yes

Mounting bracket(s) included: yes

Power over Ethernet (PoE): yes

RFID frequency: 13.56 MHz

PC connected: no

Built-in display: no

Power consumption (max): 5 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3784707 Ubiquiti Networks UA-G2 Transponder access system Wall 48 V IP55 Bluetooth support

Description

Unifi access reader Gen 2

Give your employees a variety of unlocking options, which are suitable for all weather conditions.

This text is machine translated.

Scope of delivery

Base access control reader
Dowels and screws for wall mounting
