Name: Ubiquiti Networks UA-G3-PRO-W Transponder access system Wall IP55 + touchscreen
Brand: Ubiquiti Networks
SKU: 3784700

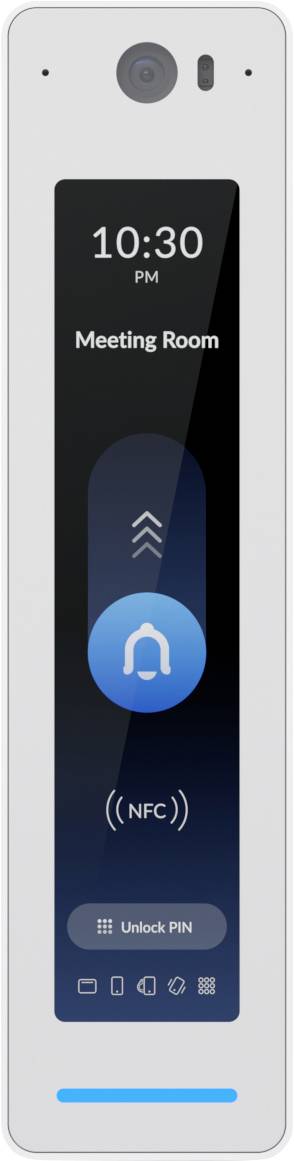

Touchscreen room scheduling panel showing 10:30 PM, 'Meeting Room,' NFC, and an 'Unlock PIN' button, with a blue headset icon and status indicators.

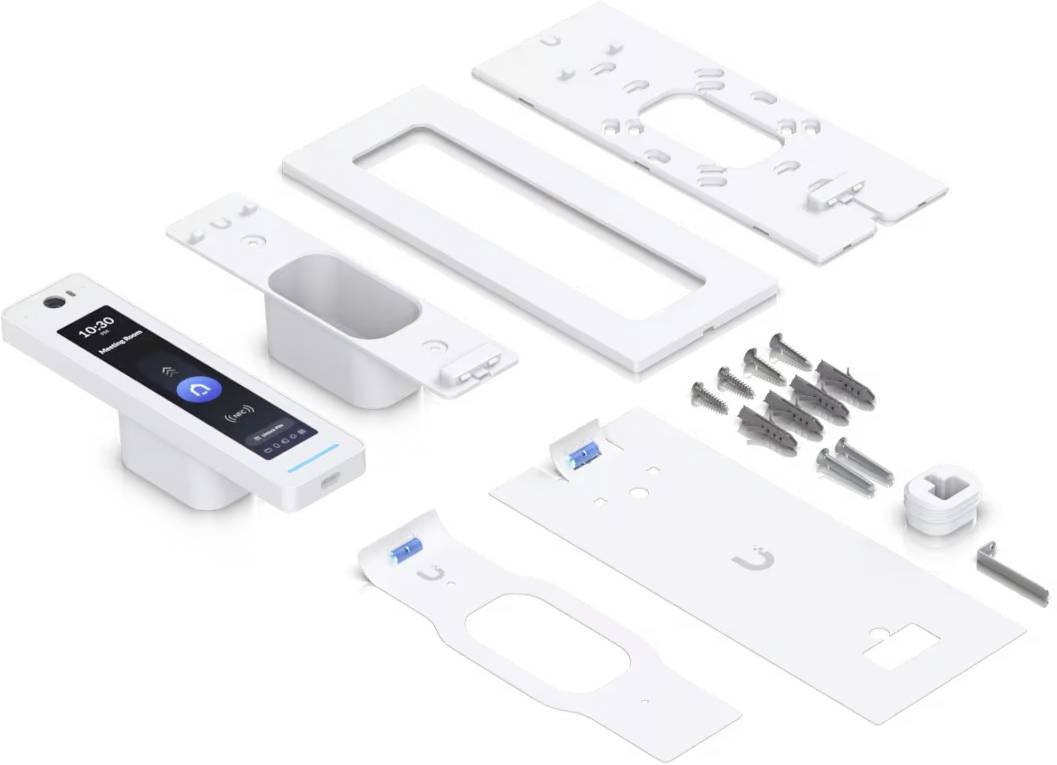

Exploded view of a white electronic device kit with a smartphone-style module, casing pieces, brackets, screws, and fasteners laid out for assembly.<br>

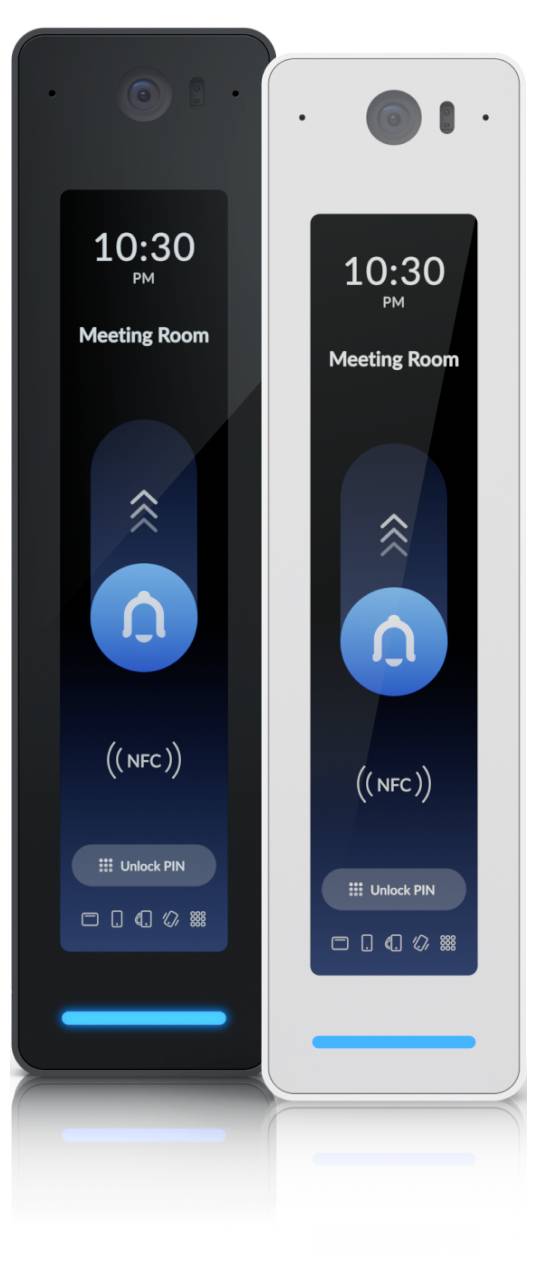

Side-by-side black and white smartphones showing a lock screen with 10:30 PM, 'Meeting Room', a blue bell icon, NFC, and 'Unlock PIN' at the bottom.

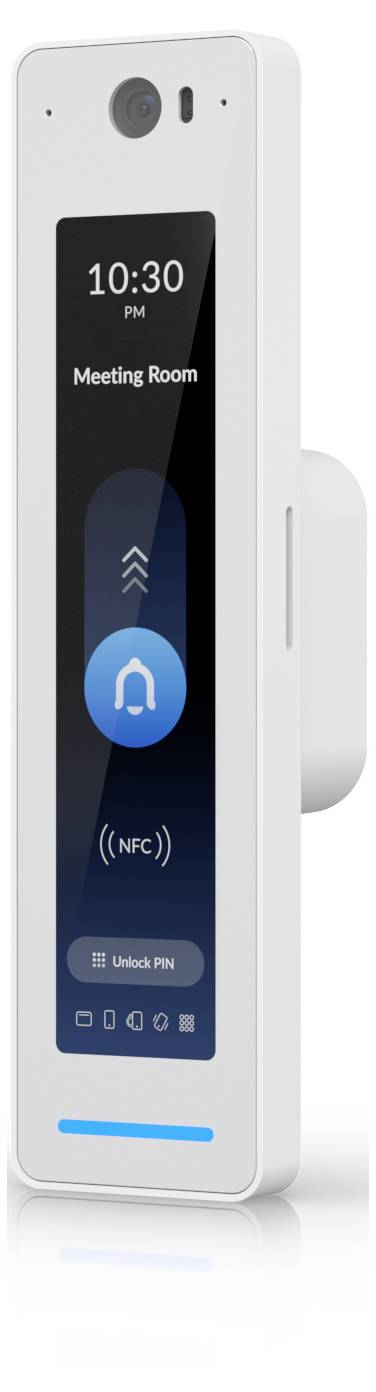

Wall-mounted room access terminal with touchscreen showing '10:30 PM', 'Meeting Room', NFC, and Unlock PIN options, plus a large headphone icon.

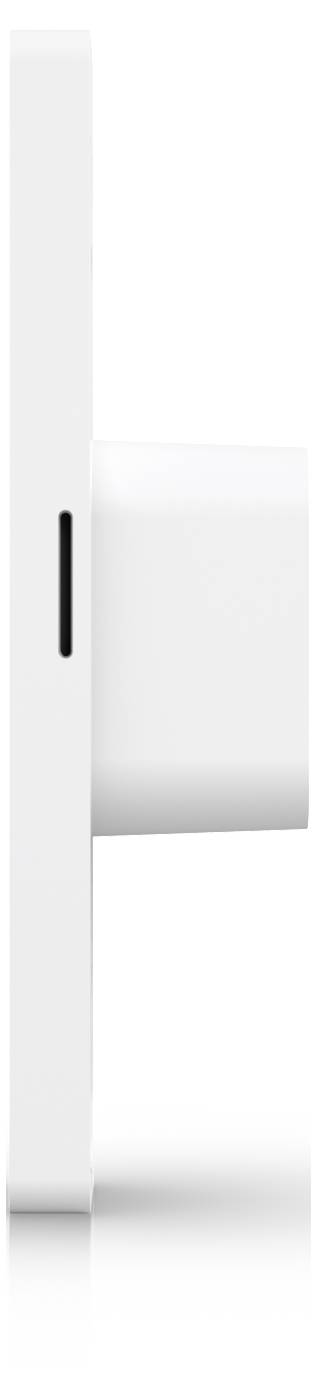

Side view of a white wall-mounted rectangular device, likely a smart thermostat or control panel, with a small black vertical indicator on the left edge.

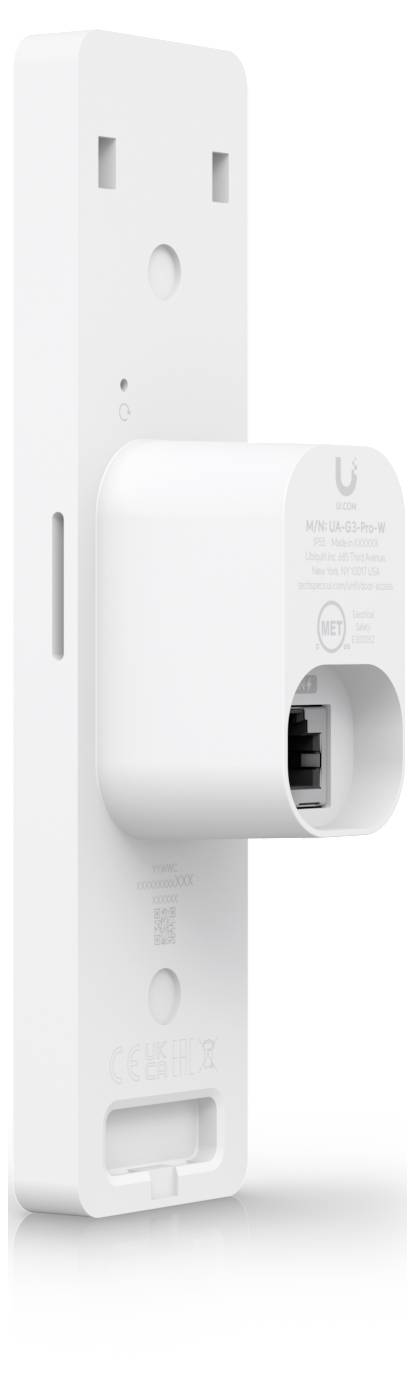

White wall-mounted smart home device with a protruding front module and status indicators.

Front view of a white plug-in Wi‑Fi extender or adapter, showing a single Ethernet port and status lights, with faint printed branding and model text.

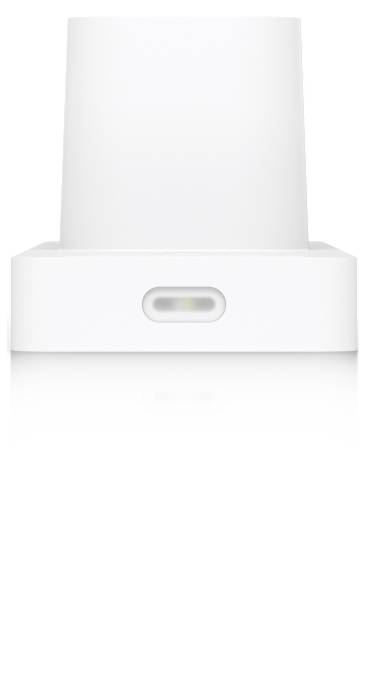

White wall charger adapter with a single USB-C port on the front<br>

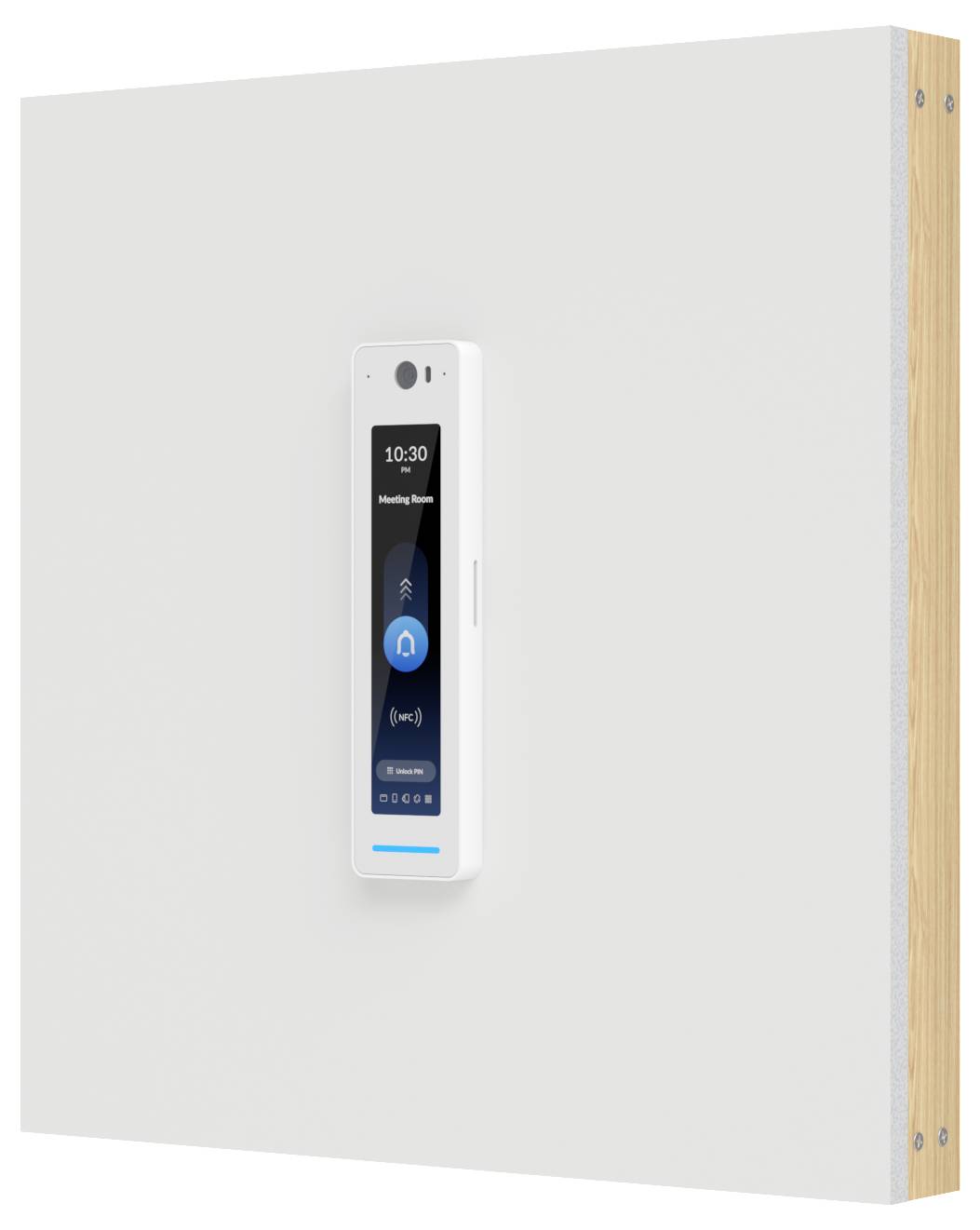

Wall-mounted white smart control panel on a plain wall, showing a touchscreen with time and 'Meeting Room' interface.

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti G3 Reader Pro face recognition terminal, white

Face recognition terminal
Access chip/card, face recognition access chip/card reader
Built-in display
Single camera
NFC (Bluetooth) Power over Ethernet (PoE)

Technical specifications

Recommended use: Inside & outside
96.67° horizontal image angle
Angle of view, vertical 123.15°
480 nits brightness, 1280 x 286 resolution

Product type: Transponder access system

Mounting type: Wall

Connections: 1x Gigabit Ethernet RJ45 port (1 GbE)
Further connections wirelessly via BLE 4.2 and NFC

: IP55

Weight: 136 g

Dim: (W x H x D) 40.4 x 160 x 40.5 mm

Features: + touchscreen

Factory colour: White

Width: 40.4 mm

Height: 160 mm

Depth: 40.5 mm

Bluetooth: 4.2

Bluetooth: Yes

Screen size diagonal (inches): 4.7 inch

Fingerprint: No

Touchscreen (display): Yes

Material (details): Glass
Polycarbonate (PC)

Type: Face recognition terminal

NFC (Near field communication): Yes

10/100/1000 Mbps ports: 1 x

Webcam: Yes

UKCA: yes

Access code reader: no

Access chip/card reader: yes

Number of speakers: 1

Power over Ethernet (PoE) ports quantity: 1

Operating temperature (T-T): -10 - 45 °C

Speaker power: 1.5 W

Built-in speaker(s): yes

Mounting bracket(s) included: yes

Power over Ethernet (PoE): yes

Operating relative humidity (H-H): 5 - 90 %

Built-in display: yes

Power consumption (max): 6 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3784700 Ubiquiti Networks UA-G3-PRO-W Transponder access system Wall IP55 + touchscreen

Description

NFC reader and third-generation intercom for indoor and outdoor use with Apple touch pass support.

Unlock with NFC card, PIN, Unifi mobile identity APP, face unlock, and touch pass
