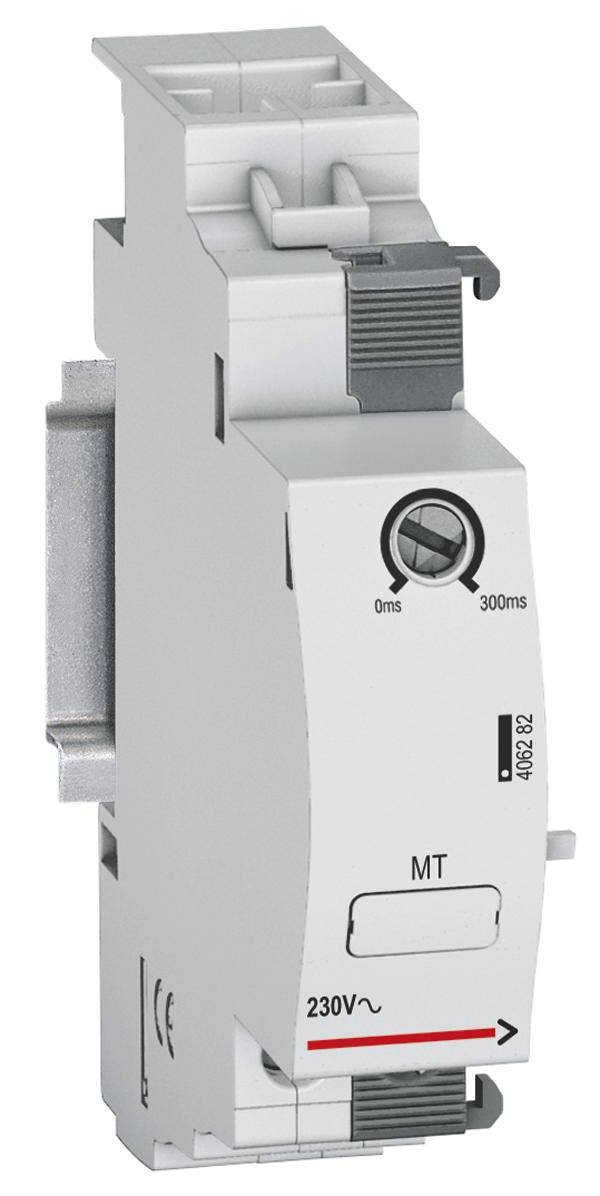

Undervoltage trigger 230 V Legrand 406282
Product type
Undervoltage trigger
Nominal voltage
230 V
Number of pins
4
UKCA
yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Suitable for max. number of poles of the main contact unit (total): 4
- Suitable for max. current of the main contact unit: 125 A.
- Product type
Undervoltage trigger
- Nominal voltage
230 V
- Number of pins
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2153831 Undervoltage trigger 230 V Legrand 406282
User & Safety Instructions
User & Safety Instructions 2153831 Undervoltage trigger 230 V Legrand 406282
Description
Undervoltage release for triggering in case of undervoltage or voltage interruption. Short-term voltage interruption can be suppressed (setting range 300 ms). Can be attached to LS-switch, FI-/ FILS-protection switch of the Legrand TX3 and DX3 series. Tool-free assembly by simply linking to the left side of the main unit, maximum one control device to the main unit. Rated operating voltage 230 V AC
