Name: Uni-T UTG2082X Mains-powered 80 Hz (max) 2-channel Arbitrary
Brand: Uni-T
SKU: 3400014

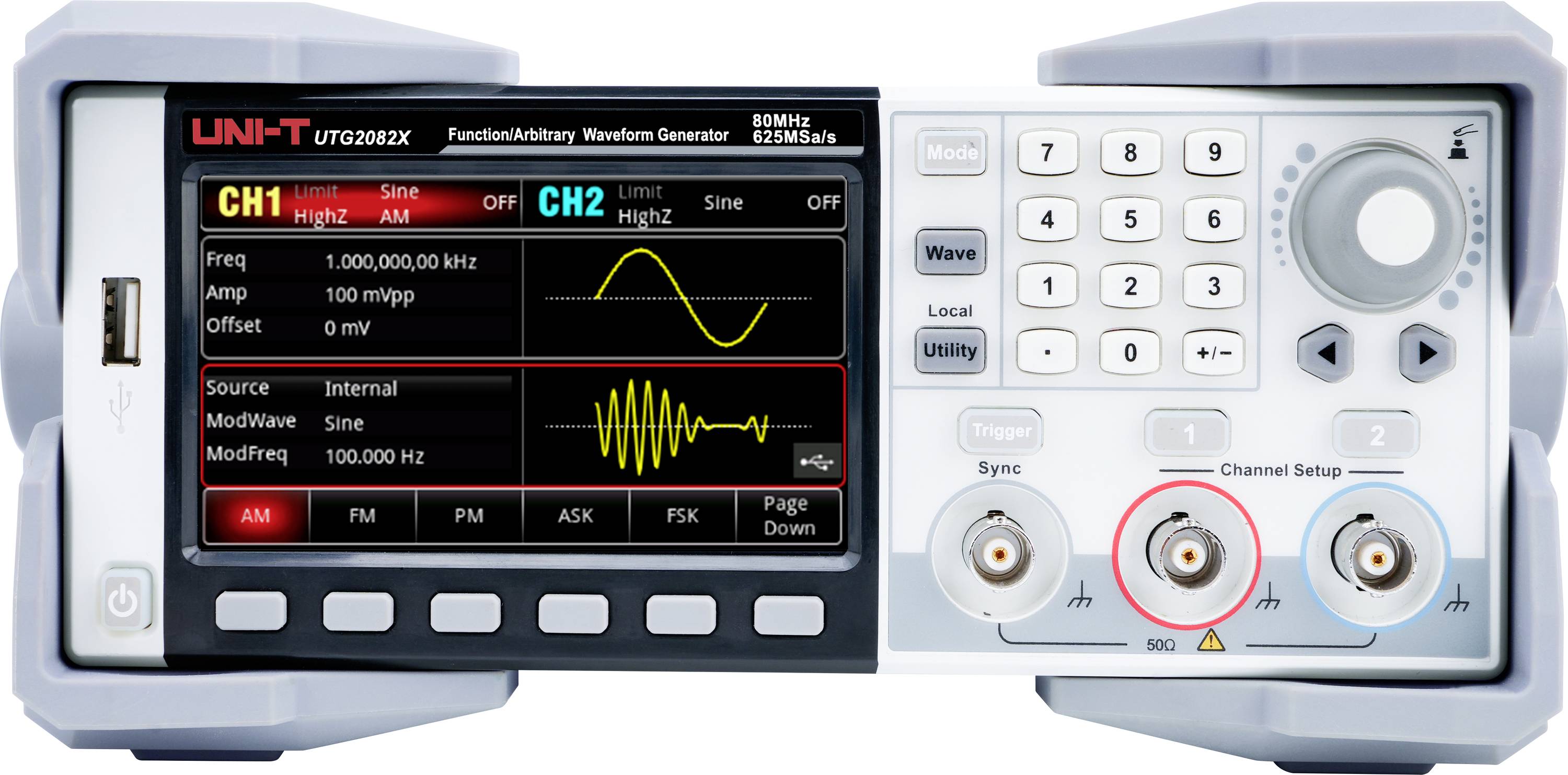

A function generator with a digital display shows sinusoidal waveforms for two channels. The display lists frequency and amplitude.

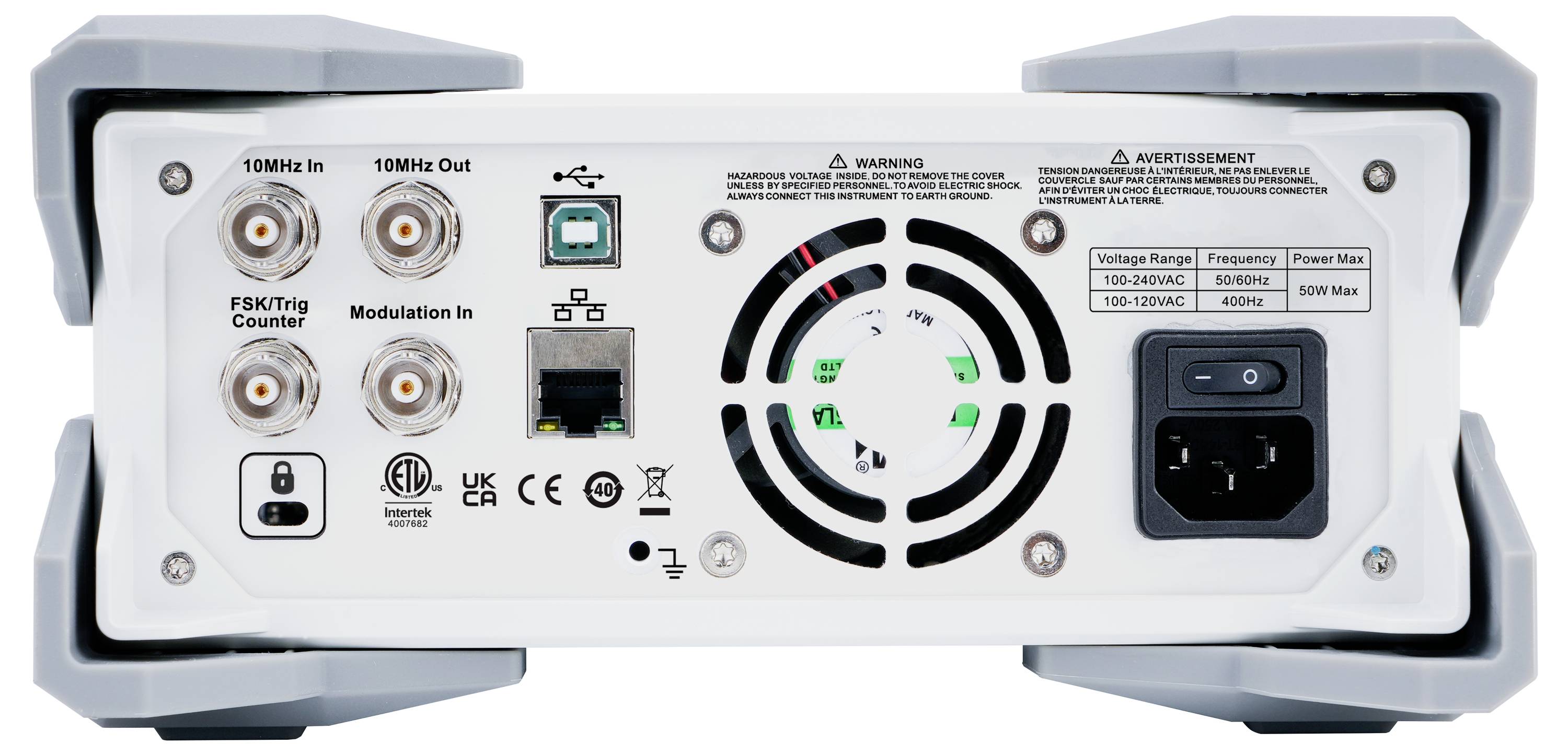

Back of an electronic device with connections: 10MHz In, 10MHz Out, FSK/Trig, Modulation, a fan, and a power cable socket.

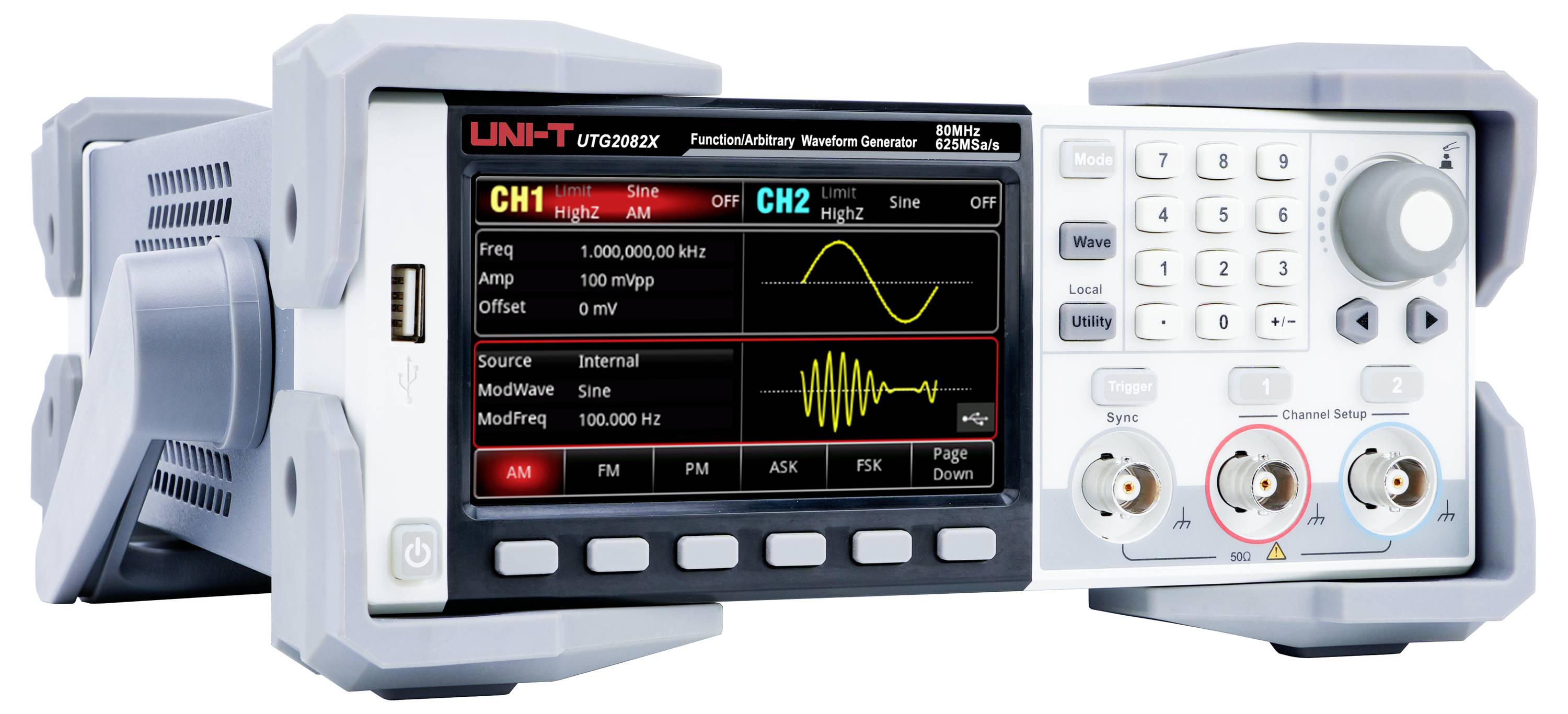

Frequency generator with display. Shows two waveforms: yellow sine wave on CH1 and yellow square wave on CH2. Buttons and knobs present.

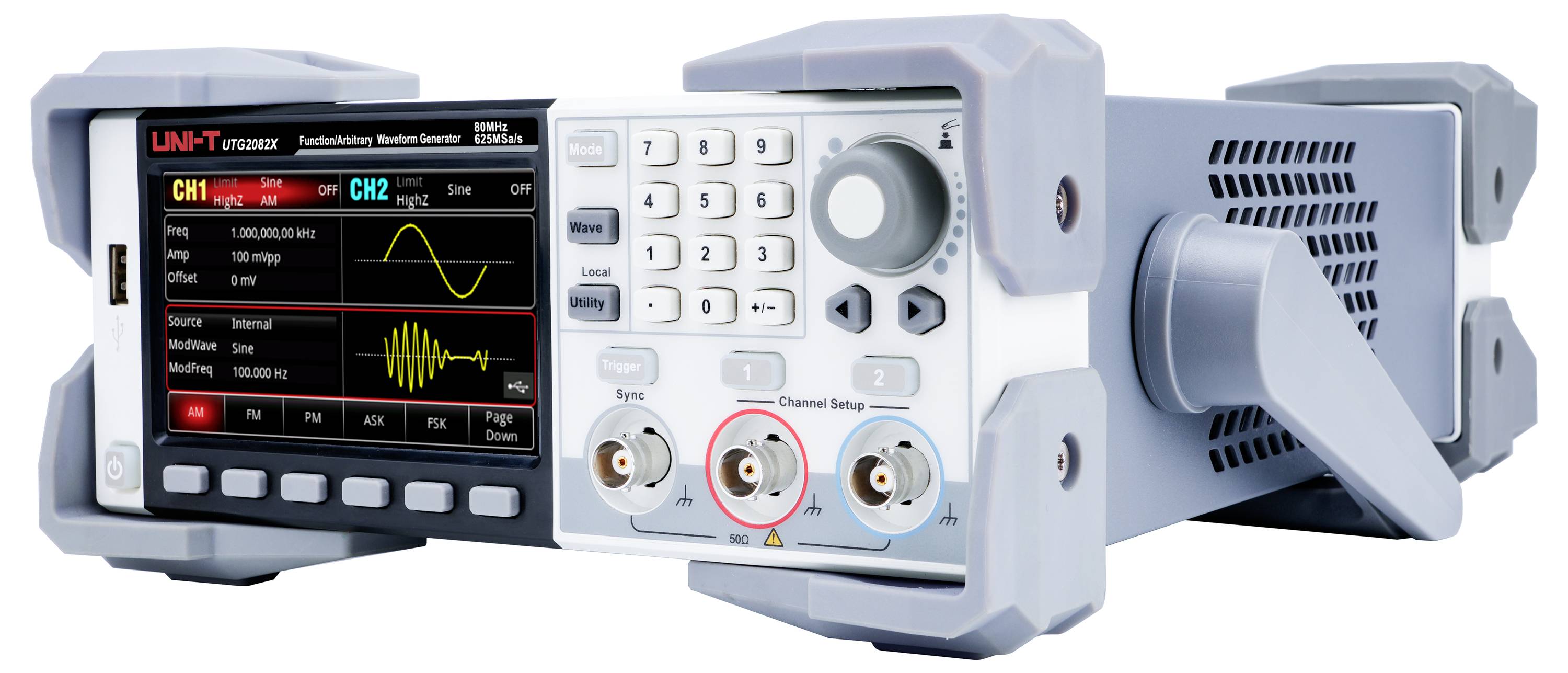

A dual-channel function generator, displaying waveforms on a screen, with controls and connections visible.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNI-T UTG2082X Arbitrary function generator 80MHz 2-Channel 625MS/s 64Mpts 4.3″ TFT-LCD

Maximum output frequency: 80 MHz
- Sampling rate: 625 MSa/s.
- Vertical resolution: 16 bits
- Channels: 2
- Arbitrary waveform length: 64 Mpts
- Display: 4.3″ TFT LCD

Technical specifications

Product type: Mains-powered

Frequency range: 80 Hz (max)

Signal output types: Arbitrary

Display: LCD

: Manufacturer's standards (no certificate)

Dim: (W x H) 190 mm x 330 mm

Weight: 3 kg

No. of channels: 2-channel

Max. frequency: 80 Hz

Features: Modulation

Width: 190 mm

Height: 330 mm

Voltage supply: Mains

Type: UTG2082X

Documents & Downloads

Datasheet

Datasheet 3400014 Uni-T UTG2082X Mains-powered 80 Hz (max) 2-channel Arbitrary

User & Safety Instructions

User & Safety Instructions 3400014 Uni-T UTG2082X Mains-powered 80 Hz (max) 2-channel Arbitrary

Description

The UTG2082X is a function/arbitrary waveform generator that enables stable and precise waveform output with DDS technology. It supports a maximum output frequency of 80 MHz, a sampling rate of 625 MSa/s and 16-bit resolution to ensure high signal accuracy. With 2 channels, a 64 Mpts waveform length and a 4.3″ TFT LCD touch screen, the UTG2082X offers easy-to-use and high reliability, Ideal for laboratories, educational institutions, and signal testing.

This text is machine translated.

Features

- 4.3″ touch display: High-resolution 4.3-inch touch screen for faster and more convenient control of the unit.
- Equivalent power on both channels: High amplitude output – both channels offer a full amplitude of 20 Vpp at frequencies up to 20 MHz.
- Low distortion: Excellent harmonic distortion with a free dynamic range of -80 dBc.
- Low jitter: Advanced digital scanning technology ensures stable and accurate signal output.
- Fast edge control: The new generation of high-precision, wide dynamic pulse shafts offers a minimum pulse width of 8 ns. The pulse width can be finely adjusted with a minimum step width of 100 HP and enables the generation of higher harmonics.
- High Signal-to-Noise Distance (SNR): A small signal overlay with a large DC component reduces output noise and increases signal-to-noise ratio (SNR). (The CH1 signal in the figure is generated by the UTG2000X series.)
- Versatile modulation modes: Support for 15 modulation types, including AM, FM, PM, DSB-DG66:DG70AM, ASK, FSK, PSK, 3FSK, 4FSK, BPSK, QPSK, OSK, SUM, QAM AND PWM.
- Channel merge: Signals can be combined by SUM function or channel stacking to produce adjustable SNR signals and Dual tone multifrequency signals.
- Arbitrary wave editor: The arbitrary wave editor allows you to create individual waveforms by inserting standard waves or drawing freely.

Scope of delivery

- UTG2082X (2CH, 80MHz)
- Power cord × 1
- USB cable × 1
- BNC cable × 1
- BNC cable with red and black alligator clips × 1
- Multilingual safety instructions
- Brief instructions
- Calibration certificate

Hints

More models

- UTG2122X: 120 MHz output frequency, 625 MSa/s sampling rate, 16-bit resolution, 2 channels, 64 Mpts arbitrary waveform length, 4.3″ TFT-LCD touch screen.

- UTG2062X: 60 MHz output frequency, 625 MSa/s sampling rate, 16-bit resolution, 2 channels, 64 Mpts arbitrary waveform length, 4.3″ TFT-LCD touch screen.
