Name: Uni-T UTG9354T+ Mains-powered 1 µHz - 350 Hz 4-channel Waveform, Rectangle, Ramp, Noise, Arbitrary
Brand: Uni-T
SKU: 3837314

Front panel of a UNI-T waveform generator showing CH1 selected, DCS sine waveform at 1,000.000 kHz, 3.300 Vpp, 0.00 V offset, and other channel controls.

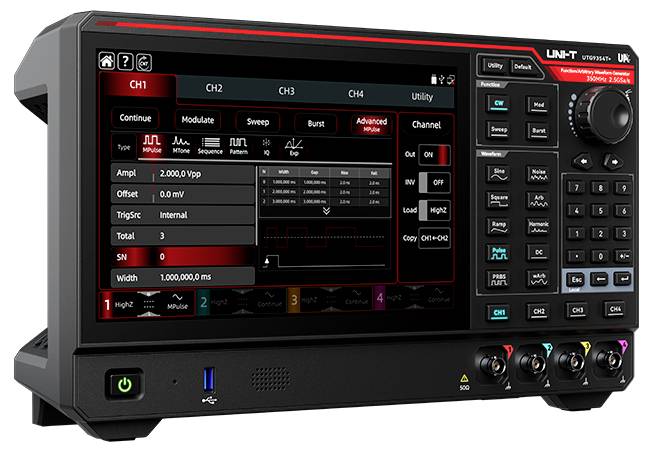

Digital oscilloscope with touchscreen showing channel settings and waveform controls, plus physical knobs and input ports on the right.

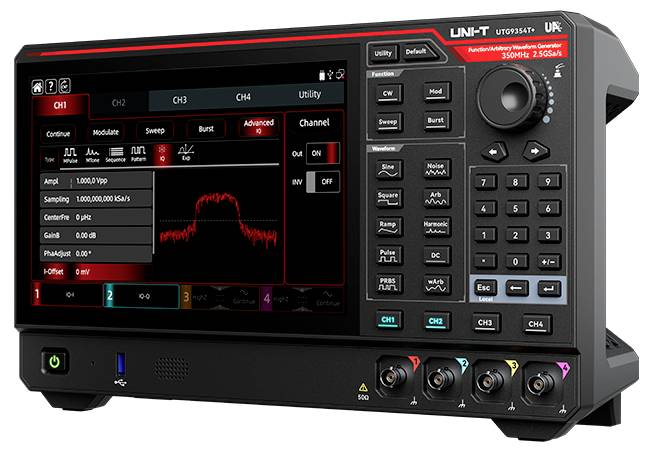

Black UNI-T UTG9354T arbitrary waveform generator with touchscreen display, control buttons, keypad, and four output ports on the front panel.

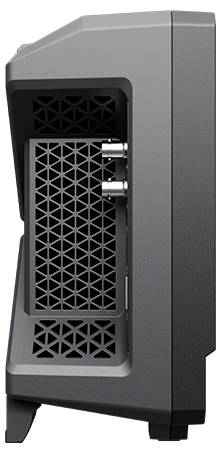

Side view of a black computer tower case with vented mesh panels and two visible side ports.

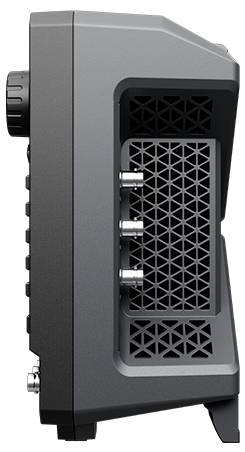

Side view of a gray electronic device with a black vented panel and three metal connectors, shown against a white background.

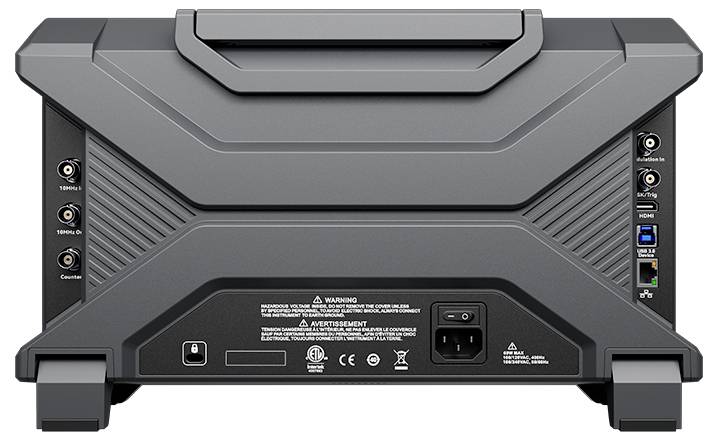

Rear view of a widescreen monitor showing input ports, power socket, and ventilation panels on a dark gray casing.<br>

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNI-T function generator UTG9354T+, 350MHz, 4-channel, arbitrary

Maximum output frequency: 350 MHz
Sampling rate 2.5 GSa/s
16-bit vertical resolution
Channels: 4
Arbitrary waveform length: 128 Mpts
Display: 10.1-inch TFT LCD touch screen

Technical specifications

10.1-inch capacitive touchscreen
4 independent Channels full power
Noise Overlay (SNR)
Digital protocol output (SPI, I2C, UART)
Advanced functions (multi-pulse, multi-tone, sequence, pattern, I/Q, expression)

Signal output type: Sine, square, ramps/triangle, pulse, harmonic, Noise, PRBS, DC, Arbitrary

Product type: Mains-powered

Frequency range: 1 µHz - 350 Hz

Signal output types: Waveform
Rectangle
Ramp
Noise
Arbitrary

Frequency range (sine): 1 µHz – 350 MHz

Distortion factor (sine): 0,07 %

Frequency range square wave: 1 µHz – 120 MHz

Square wave slew rate: 2 ns

Display: LCD

Frequency range triangle: 1 µHz – 20 MHz

ARB frequency range: 1 µHz – 50 MHz

: Manufacturer's standards (no certificate)

Internal modulation: AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK BPSK, QPSK, OSK, PWM, SUM

External modulation: AM, FM, PM, DSB-AM, ASK FSK, PSK, OSK, PWM, SUM

VCF: Yes

Trigger (synchronous): Internal, External (rising/falling edge), Manual

Gate (asynchronous): Yes (Gated Burst Mode)

Frequency reading (external): Yes (built-in frequency counter 100 MHz – 800 MHz, 8 digits/s)

Dim: (W x H) 361 mm x 209 mm

Weight: 4.5 kg

No. of channels: 4-channel

Max. frequency: 350 Hz

Min. frequency: 1 µHz

Features: incl. cycle counter

Calibration service: Factory calibration without certificate

Reading category: CAT II

Width: 361 mm

Height: 209 mm

Interfaces: USB host
USB device
LAN
HDMI

Voltage supply: 230 V/AC

Type: UTG9354T+

Documents & Downloads

Datasheet

Datasheet 3837314 Uni-T UTG9354T+ Mains-powered 1 µHz - 350 Hz 4-channel Waveform, Rectangle, Ramp, Noise, Arbitrary

User & Safety Instructions

User & Safety Instructions 3837314 Uni-T UTG9354T+ Mains-powered 1 µHz - 350 Hz 4-channel Waveform, Rectangle, Ramp, Noise, Arbitrary

Description

The UTG9354T+ provides 350 MHz output frequency on four equivalent channels at 2.5 GSa/s sampling rate and 16-bit vertical resolution. It generates precise, stable and distortion-free signals with short rise time of the square wave signals. It supports comprehensive analogue and digital modulation types, PRBS, sweep and burst operation as well as the extended signal forms Multi-Pulse, Sequence, Multi-Tone, IQ, Pattern and Exp. With 128 Mpts arbitrary memory, integrated signal form editor, frequency counter and 10.1" touch screen, the device is designed for demanding development and testing tasks.

This text is machine translated.

Features

Low-distortion signal output: Interference-free dynamic range of -80 dBc and low jitter for clean, stable signals
Quick edge time: Flank time up to 2 ns, minimum pulse width ≥3 ns, fine adjustment in 100-PS steps, Face time per pulse adjustable
Four independent channels: Simultaneous output on all channels for parallel and multi-device testing
Channel coupling & signal addition: Frequency, amplitude and phase can be freely coupled, outputs can be combined (e.g. CH1 = CH1 + CH2 + CH3 + CH4)
4-channel synchronization: Change to one channel automatically transfers to the other three
One-Click SNR: Overlaying Gauss Noise for direct evaluation of immunity
15 MODULATION TYPES: AM, DSB-AM, FM, PM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, QAM, PWM, TOTAL
Digital protocol output: SPI, I²C and UART
Hardware frequency counter with a measurement range from 100 MHz to 800 MHz
Arbitrary signal editor: Over 200 integrated signal shapes, processing on the device or at the PC by character and mathematical functions
Standard extended signal shapes: Multi-pulse, multi-tone, sequence, pattern, IQ and Exp

Scope of delivery

UTG9354T + x1
Power cable x1
USB data cables x1
BNC cable x4

Hints

More models

-UTG9504T+: 4 channels, 500MHz output frequency, 2.5 GSa/s sampling rate, 16-bit vertical resolution, 128 Mpts arbitrary waveform length, 10.1-inch TFT LCD touch screen
